Specifications
Coaxial Cable1.UL ROSH CE ISO9001 ISO14001
2.Imported production machinery
3.Production able more 200000km per year

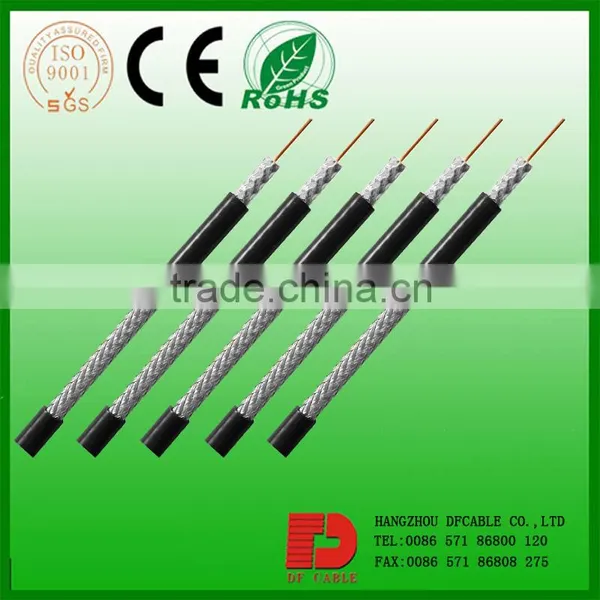

Product :RG6 Coaxial cable
1.Coaxial cable: two concentric conductor, and the conductor and shield and share the same axis of the cable
2.Model: RG 6
3.Application: CCTV systems, cable systems and electronic devices
4.Product parameters:
Type Type No. | ||
Standard cable RG6 DUAL | ||
Construction | ||
Inner conductor |
Material |
CCS 21%/BC |
Diameter(mm) |
1.02±0.02 |
|
Insulation |
Material |
Foamed PE |
Diameter(mm) |
4.80±0.10 |
|
First shield |
Material |
Bonded al |
Diameter(mm) |
4.95±0.05 |
|
Braiding |
Material |
80*0.12AL-MG |
Diameter(mm) |
5.5±0.02 |
|
Jacket |
Material |
PVC |
Min.thickness(mm) |
>0.75 |
|
Diameter(mm) |
6.9±0.10 |
|
Mechnical Characteristics | ||
Recommended temperature(°C) |
Storage |
-30~ +75 |
Installation |
-40~+60 |
|
Operating |
-10~+70 |
|
1.Delivery-----------------------------Depend on the quantity .10Days
2.MOQ----------------------------------RG series: 15KM RF Series: 3KM QR: 5KM
3.Payment terms------------------- 30%T/T .(as deposit,the balance to be paid before delivery)
4.Valid time---------------------------One month .

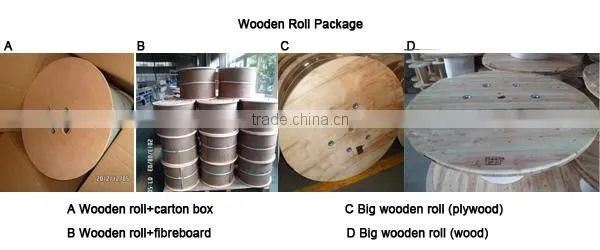

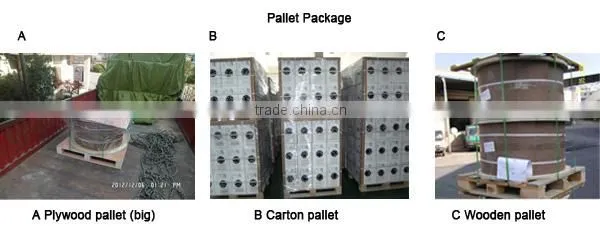

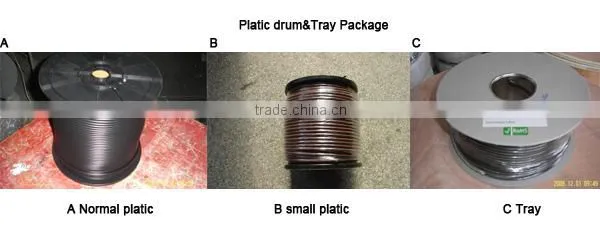

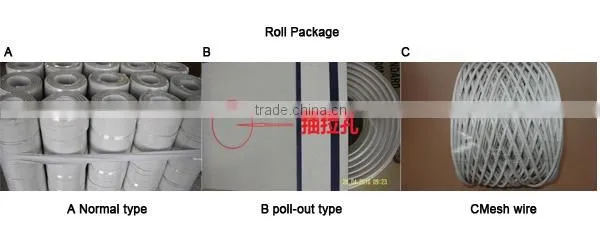

Packing: roll , wooden roll , plastic drum, trays, pallets,100M/roll 200M/roll and customer-made
Transport: by sea ,by air
Loading conditions:20GP Finished: 380KM semi-finished products: 800K
1.Product can OEM
2.Product with UL ROSH CE ISO certificate
3.Supply FOB CNF CIF Door to door service
4.Supply the wire connection service
5.Delivery inspection, supply the testing report before shipping
6.Samples are provided
1.Factory Introduction:DF established in 2003, which is located in China's largest cable
base -Lin'an.We set up office in Lin'an and Hangzhou, north of Shanghai, south of Ningbo,
It is convenient transportation. Professional R & D coaxial cable,
our factory covers more than 108000 square feet ,the annual out put cables more than 200000km per year.
2.Main Product :RG series : RG6 RG59 RG11 RG174 RG58 RG213 RG214 RG412 RG500
RF series : RF 1/2 RF 7/8
QR series : QR412 QR500 QR540
LMR : LMR195 LMR200 LMR240 LMR300 LMR400 LMRR600
F : F6 F11 F15
3.Options for material:
1) Inner conductor: Tinned Copper, Bare Copper, and Copper Clad Steel, Copper clad aluminum available;
2) Dielectric: Foam/Solid PE
3) Shield Al-foil: unbonded AP, Bonded AP, APA, Bonded APA available;
4) Braiding material: Al-mg, CCA, Bare Copper and Tinned Copper wire available;
5) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
6) Braiding net: 48, 64, 80, 96, 120,128 ,144 and more available;
7) Braiding coverage: Between 30- 97% available;
8) Jacket material: PVC, PE Flame retardant, UV, Rohs, available.
9) PVC jacket degree: 65, 70, 75 and more
4.Product of the process: the fourth generation technologies: physical foam polyethylene insulation
5.The main export countries: Australia, Netherlands , Russia ,Southeast Europe ,USA, Dubai
6.Factory Certification: UL ROHS CE ISO9001 ISO14001
7.Production and processing show
The use of imported equipment integrated production operation process: put the line system,
drawing straightening device sizing, cleaning and drying equipment, traction systems, conductor
preheating device, endothelial extruder, gas injection device, extruded foam insulation machine,
extruder foam insulation, sheath extruder, online measurement and control system, cooling water
tank, closing line systems, advanced electronic monitoring equipment to ensure smooth surface,
no bubbles, pores fine, no wrinkles, no holes no size section, improving the return loss, to achieve
high-quality requirements.
8.Exhibition show
Copper Dual PE Foam Coaxial Cable Manufaturer RG6 UL
