CMA1 Full Automatic Pet Blow Moulding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Brand Name
D&S
Model Number
CM-A1
Specifications
1) Full Automatic Blow Molding Machine2) Suitable for producing: PET plastic containers and bottles in all shapes

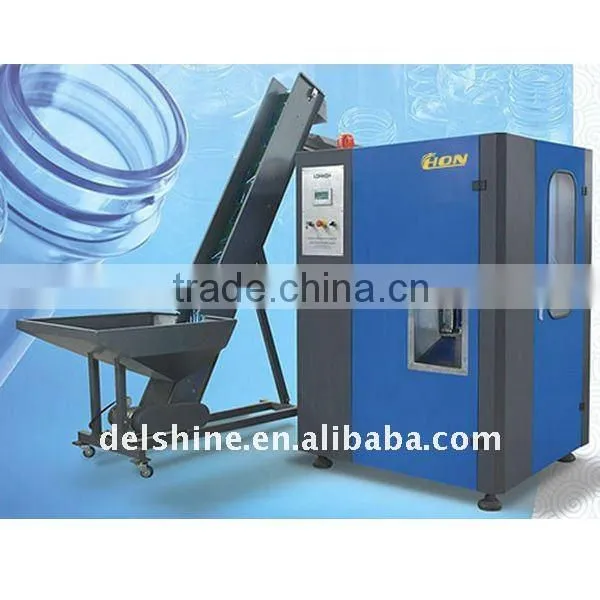

Name:CM-A1 Full Automatic Blow Molding Machine
Features:
CM-A1 Fullautomatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes . it is widely used to produce the carbonated bottle,mineral water bottle, pesticide bottle,oil bottle,cosmetics bottle,wide-mouth bottle ect.
Advantage:
1:Reasonable design , full automaticlly control, save power and labor.
2:Adopting high quality components.
3:Feeding system carries the preforms by robot arms automatically.
4:Infrared oven adopts the quartz lamp to heat the PET tube.
5:Full automatic process with low investment,high efficiency , quick and safe for operating,easy for maintenance.
6:We have perfect service after seles.
Main Parameter:
| Model | ITEM | CM-A1(2L) | CM-A1(5L) |
| Productivity | Depend on bottle design | 800-1200 PCS/H | 500-800PCS/H |
| Product type | volume | 0.1-2L | 2-5L |
| Body diameter | ≤100mm | ≤175mm | |
| Height | ≤310mm | ≤310mm | |
| Neck diameter | ≤30mm | ≤45mm | |
| Mould | Cavity | 1 | 1 |
| Mold thickness | 240mm | 260mm | |
| Mold size | 250*240*360 | 250*260*360 | |
| Main machine power | Electrical source power | 380V/220V 50/60HZ 3Phase | 380V/220V 50/60HZ 3Phase |
| Power | 25kw | 25kw | |
| Really use power | 7kw | 10kw | |
| Air system | HP air compressor | 1.2m3/min 3.0Mpa | 1.4m3/min 3.0Mpa? |
| LP air compressor | / | 1.0m3/min 1.0Mpa | |
| Air Tank | / | 0.6m3/min 3.0Mpa | |
| Air dryer | 1.0m3/min 3.0Mpa | 2.0m3/min 3.0Mpa | |
| Cooling water | Water Chiller | 3HP | 3HP |
| Machine | Size(L*W*H) | 1500*1200*1800mm | 2000*1200*1800mm |
| Weight | 1500kg | 1800kg | |
| Preform unscrambler | Size(L*W*H) | 2000*950*2480mm | 2000*950*2480mm |
| Weight | 250kg | 250kg |
