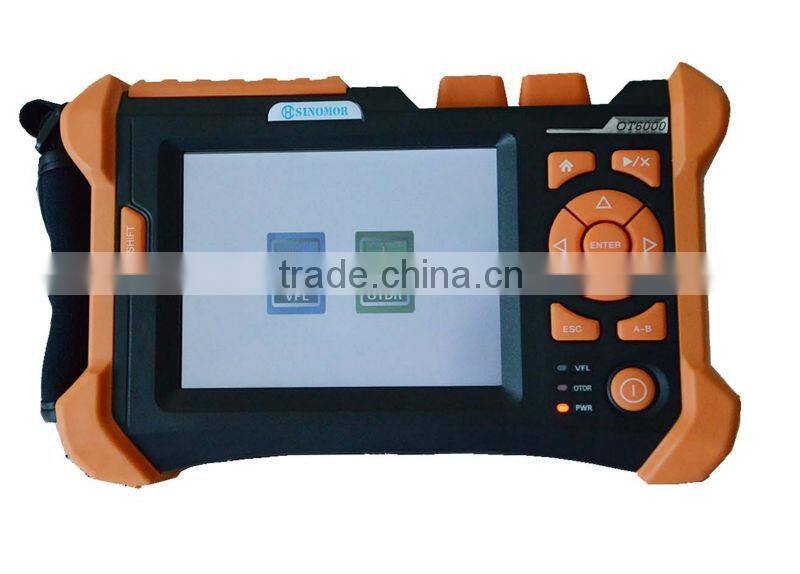

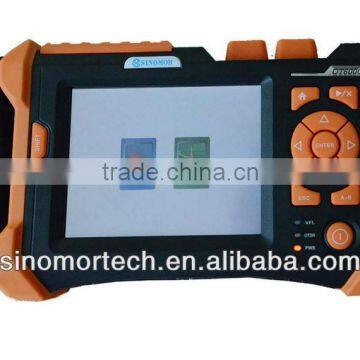

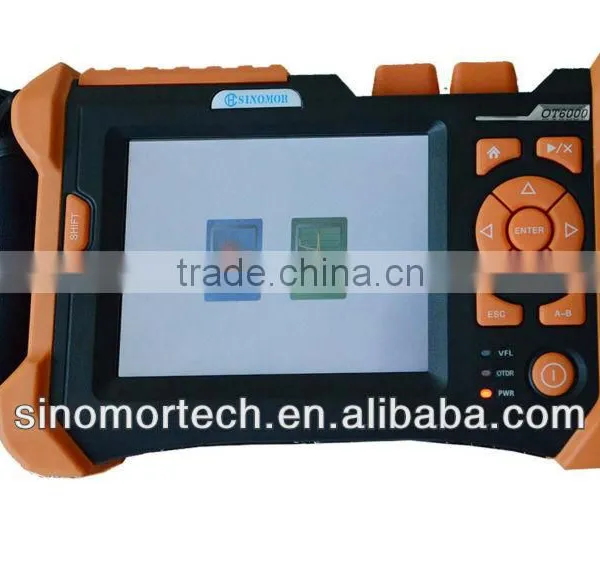

Specifications
1. handheld OTDR2. large dynamic range
3. multi-wavelength combination
4. fast test
Features
1. Automatic Measurement Mode
---- OT6000 OTDR will automatically set measurement parameters, test and save test result.
2. Multi-wavelength Measurement Mode
---- In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode. Under “Multi-wavelength Measurement” Mode, the attenuation sate of same fiber at different wavelength will be showed on the screen.

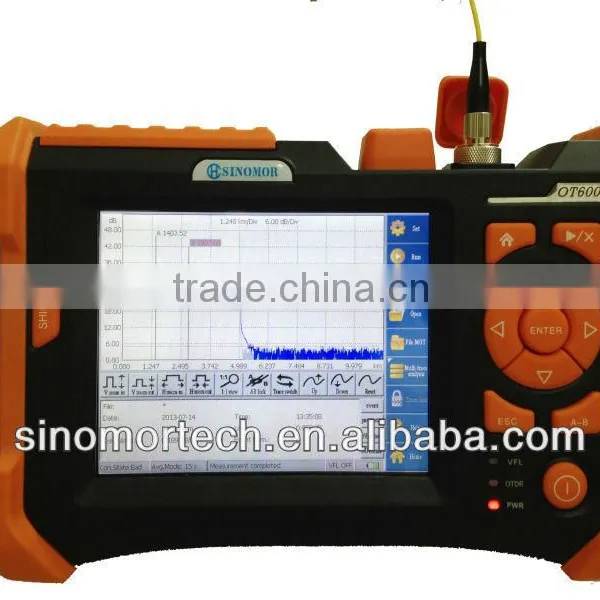

3. Trace Fixing Function
---- It can fix one trace and compare it with another real-time trace or averaged trace, them display them on the screen. It is very useful for the installation of multi-core fibers or identification of the aged fibers in the current optical fiber network.
4. Multi-wavelength Analysis Function
---- Under this mode, it can compare, display and analyze of any trace files.
5. FTTx Online Test Function
---- It is able to identify the splitter and the fiber’s end.
6. More than 8-hour-standby
7. More than 10,000 traces storage with Bellcore (*.sor) file format
8. Communication Light Detection
---- It can effectively protect the test instrument and communication equipment.
9. Connection Status Detection
----It can promptly know the connector status to make the work under best condition.
10. Fast Measurement Mode Switching
---- Via shortcut key, it can fast switch test mode between Real-Time Measurement Mode and Average Measurement Mode.
11. OTDR Traces Manager Software
- Review and analysis of tested traces
- Display traces, event list, test parameter and test results and so on.
- Bulk files amendment and batch printing.
- Edition and analysis of test traces in PC and generation of different forms of test reports according to user needs.
- Flexible Printing Mode
---- The single-page single-trace printing mode
---- The batch-printing mode
---- The single-page multi-traces printing mode
---- The printing mode of multi-waveform display.
To provide the personalized selection of printing options and page setup.
12.Waveform Difference Comparison Function
---Several waveforms can display in one same window, which is easy to find parameter changes caused by fiber aging or other reasons.
Specifications
Model |
OT6000 |
|||||||||||
Wavelength (nm) |
850/1300 |
1310/1550 |
1310/1490/1550 |
1625 |
||||||||
Dynamic Range (dB)2 |
23/21 |
32/30 |
34/32 |
36/34 |
38/36 |
34/32/32 |
38/36/36 |
304 |
325 |
344 |
365 |
|
Pulse Width (ns) |
5,20,40,80,160,320,640,1280 |
5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
||||||||||
Event Dead Zone (m)3 |
2 |
2 |
||||||||||
Attenuation Dead Zone (m)3 |
9 |
9 |
||||||||||
Linearity (dB/dB) |
±0.05 |
|||||||||||
Loss Threshold (dB) |
0.05 |
|||||||||||
Loss Resolution (dB) |
0.01 |
|||||||||||
Sampling resolution (m) |
0.125 to 8 |
|||||||||||
Sampling Point (k) |
32 |
|||||||||||
Distance Accuracy (m) |
±(1 m + 5×10-5× distance + sampling interval) |
|||||||||||
Distance Range (km) |
0.3 to 180 |
|||||||||||
Refreshing Time (s) |
0.2 |
|||||||||||
Trace Capacity |
SD Card (2G), > 10000 pieces |
|||||||||||
Measurement Time (s) |
5,10,15,30,60,120,180 |
|||||||||||
Visual Fault Locator | ||||||||||||
Wavelength (nm) |
650 |
|||||||||||
Output power (dBm) |
≥-3 |
|||||||||||
Distance (km) |
≤ 3 |
|||||||||||
General Information | ||||||||||||

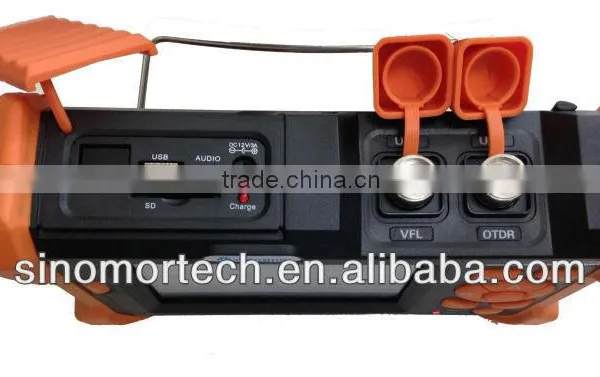

Connector |
FC/UPC (Optional PC&APC) |
|||||||||||
Data Port |
USB/SD card |
|||||||||||
Power |
Lithium battery; continuing working duration ≥ 8 hours |
|||||||||||
Working Temperature (°C) |
-10~+50 |
|||||||||||
Storage Temperature (°C) |
-40~+70 |
|||||||||||
Relative Humidity |
0% to 95% (non condensation) |
|||||||||||
Weight (kg) |
1.5 |
|||||||||||
Dimension (cm) |
150×235×66 |
|||||||||||
Remarks:
1. The parameter in the technical specification is tested with PC Connector and ignores the uncertainty caused by different fiber refractive index.
2. Test condition of Dynamic Range: Max Pulse Width and 3 minutes average time. That is (180km/20480ns/3min).
3. Test condition of Dead Zone: Reflection event distance is within 4Km, reflection strength < -35dB and Min Pulse Width.
4. This Dynamic Range is tested with filter.
5. This Dynamic Range is tested without filter.

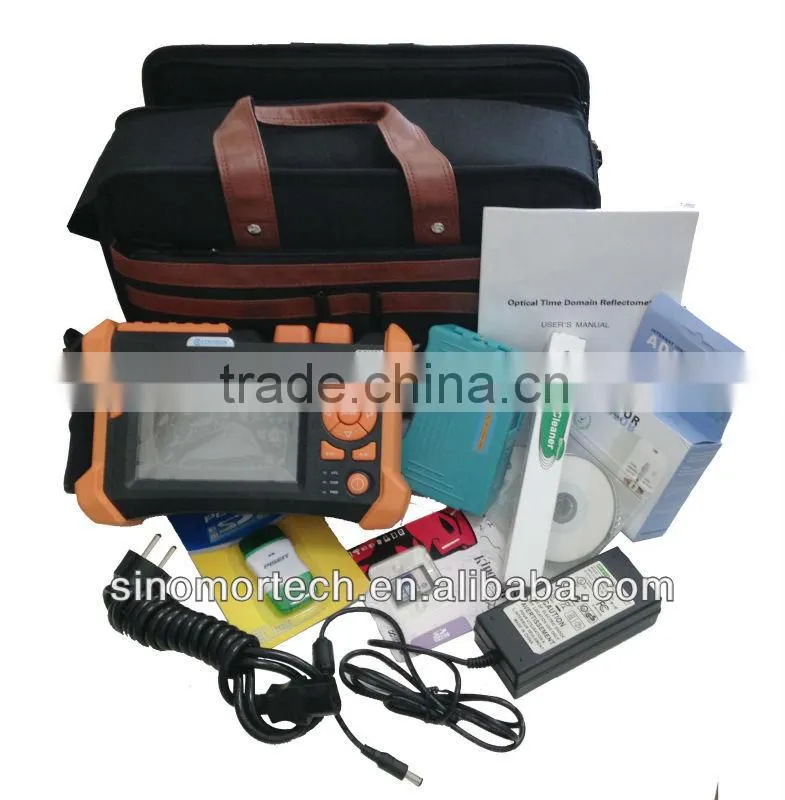

Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Lithium Battery
4) Trace Manager Software CD
5) USB cable
6) Carrying case
7) Calibration Certificate
8) CE certificate
9) Quick Reference Manual
10) Manual
11) Power Adapter
Ordering Information
|
OT6000-WD-C-PA
| ||
Wavelength & Dynamic Range (WD) |
Connector (C) |
Power Adapter (PA) |
|
WD1: 850/1300nm, 23/21dB. WD2: 1310/1550nm, 32/30dB WD3: 1310/1550nm, 34/32dB WD4: 1310/1550nm, 36/34dB WD5: 1310/1550nm, 38/36dB WD6: 1310/1490/1550nm, 34/32/32dB WD7: 1310/1490/1550nm, 38/36/36dB WD8: 1625nm, 30dB WD9: 1625nm, 32dB WD10: 1625nm, 34dB WD11: 1625nm, 36dB
|

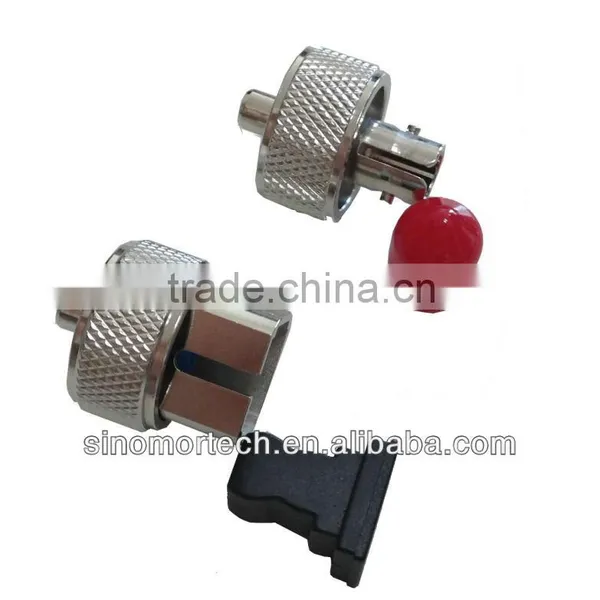

C1: FC/SC/ST/PC C2: FC/SC/APC
|
PA1: USA power adapter PA2: EU power adapter
|
