Specifications
1. Mechnical Variable Optical Attenuator2. 1310/1490/1550/1625nm quad-wavelength
3. 0~60dB wide attenuation range
VOA6700 series mechanical variable optical attenuator is mechanical attenuator, which provide 0~60dB high precision attenuation.
Calibrated at 1310/1490/1550/1625nm, VA6700 series mechanical variable optical attenuator provides continuous and variable attenuation for FTTX project and PDH,SDH and modular CATV project.
Features
- variable optical attenuator
- Wide attenuation range
- High precision attenuation
- 0.05dB attenuation step
- Good repeatability
- Attenuation value in dB or dBm
- 10 minutes Auto-off function
- Lowe power indication
- Widely used in FTTX,PDH,SDH,CATV……
Specification
Model |
VOA6700 |
Wavelength Range (nm) |
1260~1650 |
Fiber Model (um) |
9/125 |
Optical Connector |
FC/PC |
Calibration Wavelength (nm) |
1310/1490/1550/1625 |
Measurement Range (dB) |
0~60 |
Resolution (dB) |
0.05 |
Insertion Loss (dB) |
<2.5 |
Linearity (dB) |
±0.5 |
Repeatability (dB) |
±0.2 |
Attenuation Accuracy (dB) |
±0.8 |
Back Reflection (dB) |
>35(typical value 40) |
Max Acceptable Input (dBm) |
+27 |
Battery (v) |
7.4(rechargeable) |
Power Adapter (v) |
8.4 |
Operation Temperature (°C) |
0~+40 |
Storage Temperature (°C) |
-10~+60 |
Dimension (mm) |
180x90x36.5 |
Weight (g) |
450 |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Charger
5) Power Adapter
6) Carrying Bag
7) Manual
Ordering Information
|
VOA6700-C-PA
| |
|
Connector (C)
|
Power Adapter (PA) |
|
C1: Standard FC C2: interchangeable FC/SC/ST
|
PA1: USA power adapter PA2: EU power adapter |
1. The standard warranty is 18 months.
2. Extended warranty is available with additional and reasonable cost.
3. Customized products are also available as per your specific request.

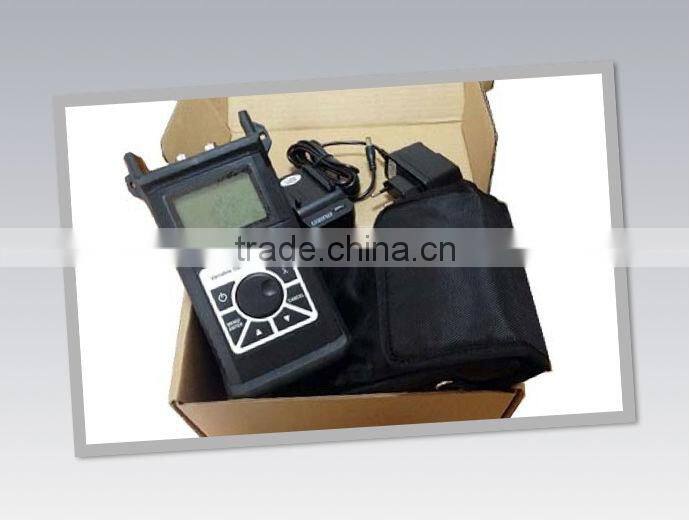

1) Varaible attenuator+cleaing cotton+charger+battery+manual+power adapter+carrying pouch+carton box .
