Specifications
1. Digital Variable Optical Attenuator,2. 1310/1490/1550/1625nm quad-wavelength
3. 0~60dB wide attenuation range

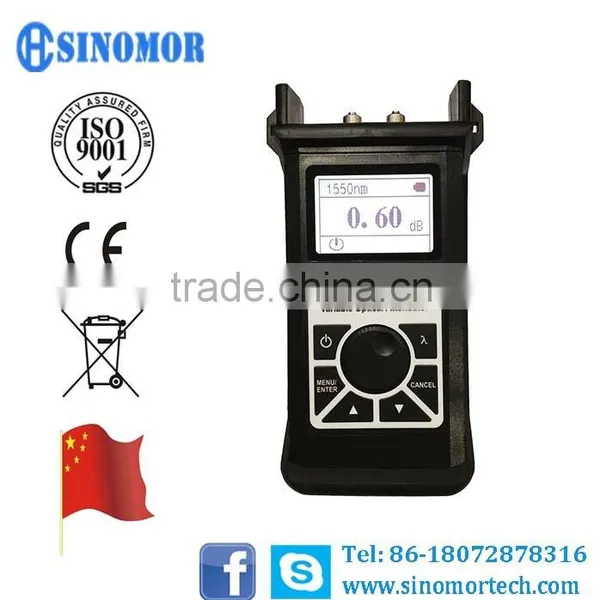

VOA6700 series Digital Variable Optical Attenuator, is mechanical attenuator, which provide 0~60dB high precision attenuation.
Calibrated at 1310/1490/1550/1625nm, VA6700 series Digital Variable Optical Attenuator , provides continuous and variable attenuation for FTTX project and PDH,SDH and modular CATV project.
Features
- Digital Variable Optical Attenuator
- Wide attenuation range
- High precision attenuation
- 0.05dB attenuation step
- Good repeatability
- Attenuation value in dB or dBm
- 10 minutes Auto-off function
- Lowe power indication
- Widely used in FTTX,PDH,SDH,CATV……
Specification
Model |
VOA6700 |
Wavelength Range (nm) |
1260~1650 |
Fiber Model (um) |
9/125 |
Optical Connector |
FC/PC |
Calibration Wavelength (nm) |
1310/1490/1550/1625 |
Measurement Range (dB) |
0~60 |
Resolution (dB) |
0.05 |
Insertion Loss (dB) |
<2.5 |
Linearity (dB) |
±0.5 |
Repeatability (dB) |
±0.2 |
Attenuation Accuracy (dB) |
±0.8 |
Back Reflection (dB) |
>35(typical value 40) |
Max Acceptable Input (dBm) |
+27 |
Battery (v) |
7.4(rechargeable) |
Power Adapter (v) |
8.4 |
Operation Temperature (°C) |
0~+40 |
Storage Temperature (°C) |
-10~+60 |
Dimension (mm) |
180x90x36.5 |
Weight (g) |
450 |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Charger
5) Power Adapter
6) Carrying Bag
7) Manual
Ordering Information
|
VOA6700-C-PA
| |
|
Connector (C)
|
Power Adapter (PA) |
|
C1: Standard FC C2: interchangeable FC/SC/ST
|
PA1: USA power adapter PA2: EU power adapter |
1. The standard warranty is 18 months.
2. Extended warranty is available with additional and reasonable cost.
3. Customized products are also available as per your specific request.
1) Digital Variable Optical Attenuator +cleaing cotton+charger+battery+manual+power adapter+carrying pouch+carton box .
