PPM6107 Handheld PON Power Meter

Name: PPM6107 Handheld PON Power Meter
Brand: Sinomor
SKU: 131779753
Availability: InStock

US$ 100 - 600 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Sinomor

Model Number:

PPM6107

Hangzhou Sinomor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Sinomor

Model Number PPM6107

Specifications

1. Handheld PON Power Meter
2. 1310nm up burst mode test
3. USB port for data storage and upload
4. 1000 data storage

Product Description

PPM6107 series Handheld PON Power Meter ,Fiber Optic Tester are designed for FTTX test and maintenance.

PPM6107 series Handheld PON Power Meter ,Fiber Optic Tester can simultaneously test voice,

data and video signal, then make the judgment, pass, fail or warning as per the pre-set threshold.

There are total 10 groups of threshold setting via PC software and 1000 records storage for further edition.

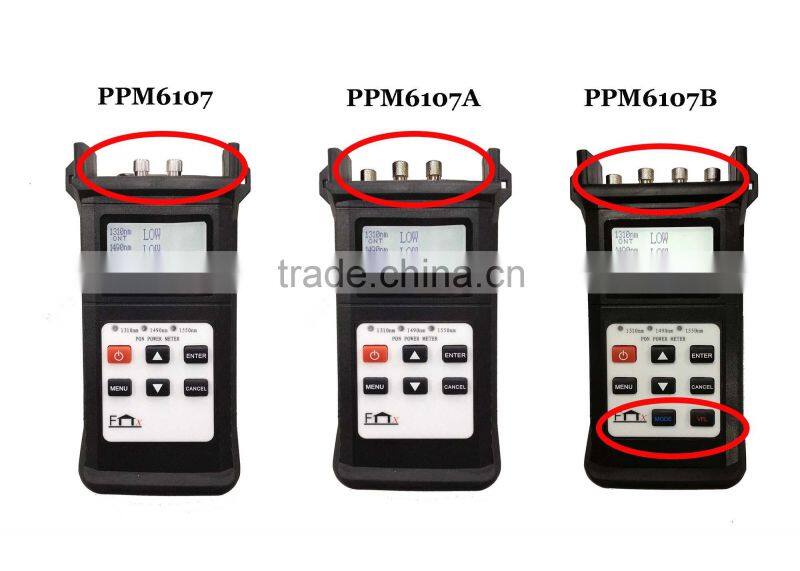

To meet different test requirement, we develops 3 models PPM6107 Optical PON Power Meter,Fiber Optic Tester .

--PPM6107 FTTX Handheld PON Power Meter ,Fiber Optic Tester

It is basic version of PON power meter, which can only test the PON signal.

--PPM6107A FTTX Handheld PON Power Meter ,Fiber Optic Tester

It is PON plus normal power meter, which can test both of PON signal and normal signal.

--PPM6107B FTTX Handheld PON Power Meter ,Fiber Optic Tester

It is PM6107A plus VFL, which keeps PM6107A function and adds VFL function.

Features

PPM6107 series Handheld PON Power Meter ,Fiber Optic Tester
Simultaneous measurement at all tri-wavelengths
(1490nm, 1550nm & 1310nm )
Burst mode measurement at 1310nm wavelength
Green, Yellow or Red LED illuminator separately represents 3types of signal conditions Pass, Warn or Fail.
Up to 1000 test records storage
Data upload via USB cable
10 different threshold setting
User self-calibrating function
10 minutes Auto-off function
Time and date setting
Added Factory Default function in software to enable all the customers’ setting revert to the original factory setting

Specification

Model	PPM6107
PON Module
Wavelength	1310	1490	1550
Pass Zone (nm)	1260~1360	1470~1505	1535~1570
Isolation 1310nm(dB)	/	>40	>40
Isolation 1490nm(dB)	>40	/	/
Isolation 1550nm(dB)	>40	>30	/
Measurement Range (dBm)	-40~+10	-40~+10	-40~+20
Detector	InGaAs
Connector	Interchangeable FC/SC/ST
Uncertainty (dB)	±0.5
Linearity (dB)	±0.1
Insertion Loss (dB)	<1.5
Resolution (dB)	0.01
Measurement Unit	dB/dBm/xW
Optional Optical Power Meter
Calibration Wavelength (nm)	850/1300/1310/1490/1550/1625
Detector	InGaAs
Measurement Range (dBm)	-70~+6 or -50~+26
Uncertainty (dB)	±0.25
Linearity (dB)	±0.1
Resolution (dB)	0.01
Connector	Interchangeable FC/SC/ST
Optional Visual Fault Locator
Wavelength (nm)	650
Fiber	SM & MM
Output Power (mw)	≥1
Modulation (Hz)	CW & 2
General Information
Battery	AA(3pcs)
Working Hours (h)	90 without backlight
Operation Temperature (°C)	-10~+60
Storage temperature (°C)	-25~+70
Dimension (mm)	1809036.5
Weight (kg)	410g(excluding batteries)
