PPM6107 PON Optical Power Meter
- 100 Piece / Pieces per Month
- shanghai
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Sinomor | Model Number: | PPM6107 |
Product Description
Specifications
1. PON Optical Power Meter2. 1310nm up burst mode test
3. USB port for data storage and upload
4. 1000 data storage
PPM6107 series PON Optical Power Meter ,Fiber Optic Tester are designed for FTTX test and maintenance.
PPM6107 series PON Optical Power Meter ,Fiber Optic Tester can simultaneously test voice, data
and video signal, then make the judgment, pass, fail or warning as per the pre-set threshold.
There are total 10 groups of threshold setting via PC software and 1000 records storage for further edition.

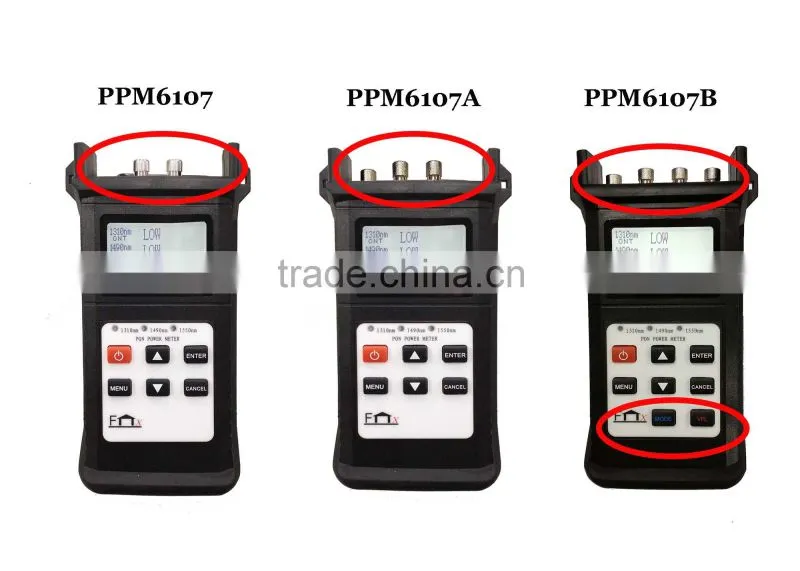

To meet different test requirement, we develops 3 models PPM6107 Optical PON Power Meter,Fiber Optic Tester .
--PPM6107 FTTX PON Optical Power Meter ,Fiber Optic Tester
It is basic version of PON power meter, which can only test the PON signal.
--PPM6107A FTTX PON Optical Power Meter ,Fiber Optic Tester
It is PON plus normal power meter, which can test both of PON signal and normal signal.

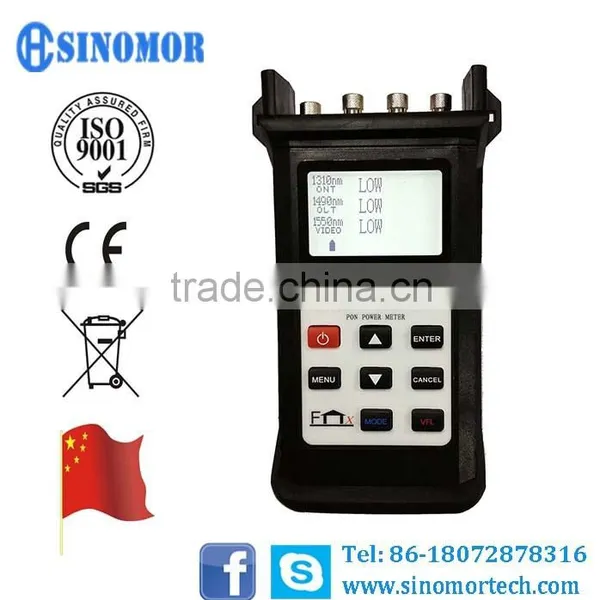

--PPM6107B FTTX PON Optical Power Meter ,Fiber Optic Tester
It is PM6107A plus VFL, which keeps PM6107A function and adds VFL function.
Features
PPM6107 series PON Optical Power Meter ,Fiber Optic Tester
- Simultaneous measurement at all tri-wavelengths
- (1490nm, 1550nm & 1310nm )
- Burst mode measurement at 1310nm wavelength
- Green, Yellow or Red LED illuminator separately represents 3types of signal conditions Pass, Warn or Fail.
- Up to 1000 test records storage
- Data upload via USB cable
- 10 different threshold setting
- User self-calibrating function
- 10 minutes Auto-off function
- Time and date setting
- Added Factory Default function in software to enable all the customers’ setting revert to the original factory setting
Specification
Model | PPM6107 | ||
PON Module | |||
Wavelength | 1310 | 1490 | 1550 |
Pass Zone (nm) | 1260~1360 | 1470~1505 | 1535~1570 |
Isolation 1310nm(dB)
| / | >40 | >40
|
Isolation 1490nm(dB) | >40 | / | / |
Isolation 1550nm(dB) | >40 | >30 | / |
Measurement Range (dBm) | -40~+10 | -40~+10 | -40~+20
|
Detector | InGaAs | ||
Connector | Interchangeable FC/SC/ST | ||
Uncertainty (dB) | ±0.5 | ||
Linearity (dB) | ±0.1 | ||
Insertion Loss (dB) | <1.5 | ||
Resolution (dB) | 0.01 | ||
Measurement Unit | dB/dBm/xW | ||
Optional Optical Power Meter | |||
Calibration Wavelength (nm) | 850/1300/1310/1490/1550/1625 | ||
Detector | InGaAs | ||
Measurement Range (dBm) | -70~+6 or -50~+26 | ||
Uncertainty (dB) | ±0.25 | ||
Linearity (dB) | ±0.1 | ||
Resolution (dB) | 0.01 | ||
Connector | Interchangeable FC/SC/ST | ||
Optional Visual Fault Locator | |||
Wavelength (nm) | 650 | ||
Fiber | SM & MM | ||
Output Power (mw) | ≥1 | ||
Modulation (Hz) | CW & 2 | ||
General Information | |||
Battery | AA(3pcs) | ||
Working Hours (h) | 90 without backlight | ||
Operation Temperature (°C) | -10~+60 | ||
Storage temperature (°C) | -25~+70 | ||
Dimension (mm) | 180*90*36.5 | ||
Weight (kg) | 410g(excluding batteries) |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) CD
Ordering Information
PPM6107 M-D-C-W
| |||
Measurement Range (M) | Detector (D) | Connector (C) | Wavelength (W) |
M1: PM6107 M2: PM6107A M3: PM6107B-T (-70~+6) M4: PM6107B-C (-50~+26) | D1: InGaAs D2: Si D3: Ge | C1:Interchangeable FC/SC/ST/PC C2:Interchangeable FC/SC/APC
| W1:850/1300/1310/1490/1550/1625nm W2: 850/980/1300/1310/1490/1550nm W3: others |
1. Standard warranty is 18 months.
2. For extended warranty,it is also available with additional and reasonable cost.
3. Customized products are also available as per your specific request.
1. PON Optical Power Meter ,Fiber Optic Tester +CD+USB cable+manual+battery+carrying pouch+carton box.
