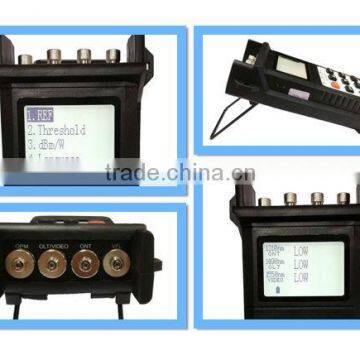

PPM6107l PON Power Meter,Optical Power Meter,FTTx Teter photo-2

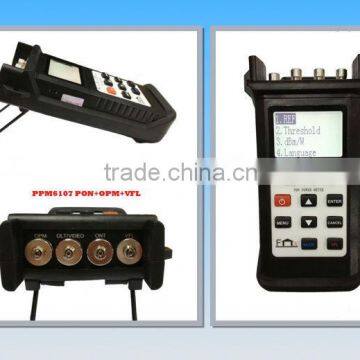

PPM6107l PON Power Meter,Optical Power Meter,FTTx Teter photo-3

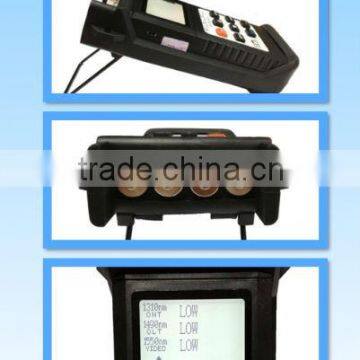

PPM6107l PON Power Meter,Optical Power Meter,FTTx Teter photo-4
US$ 100 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sinomor
Model Number:
PPM6107
Contact Supplier Request Quote Chat Now
Hangzhou Sinomor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Sinomor
Model Number PPM6107

Specifications

1. PON Power Meter
2. 1310/1490/1550nm simultaneous test.
3. 1310nm up burst mode test
4. PON+OPM+VFL

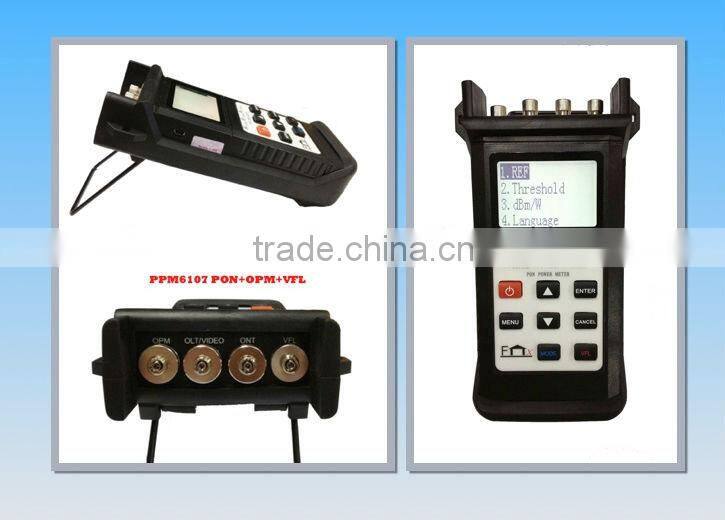

PPM6107l PON Power Meter,Optical Power Meter,FTTx Teter



Overview



PPM6107 series PON Power Meter,Optical Power Meter,FTTx Tester is designed for FTTX test and maintenance.

It can simultaneously test voice, data and video signal, then make the judgment, pass, fail or warning as per the pre-set threshold.



There are total 10 groups of threshold setting via PC software and 1000 records storage for further edition.



To meet different test requirement, we develops 3 models PON power meter.

--PPM6107 FTTX PON power meter

It is basic version of PON power meter, which can only test the PON signal.



--PPM6107A FTTX PON power meter

It is PON plus normal power meter, which can test both of PON signal and normal signal.



--PPM6107B FTTX PON power meter

It is PM6107A plus VFL, which keeps PM6107A function and adds VFL function.



Features

  1. PON Power Meter,Optical Power Mete
  2. Simultaneous measurement at all tri-wavelengths
  3. (1490nm, 1550nm & 1310nm )
  4. Burst mode measurement at 1310nm wavelength
  5. Green, Yellow or Red LED illuminator separately represents 3types of signal conditions Pass, Warn or Fail.
  6. Up to 1000 test records storage
  7. Data upload via USB cable
  8. 10 different threshold setting
  9. User self-calibrating function
  10. 10 minutes Auto-off function
  11. Time and date setting
  12. Added Factory Default function in software to enable all the customers’ setting revert to the original factory setting


Specification

Model

                                  PPM6107

PON Module

Wavelength

1310

1490

1550

Pass Zone (nm)

1260~1360

1470~1505

1535~1570

Isolation 1310nm(dB)



/

>40

>40



Isolation 1490nm(dB)

>40

/

/

Isolation 1550nm(dB)

>40

>30

/

Measurement Range (dBm)

-40~+10

-40~+10

-40~+20



Detector

InGaAs

Connector

Interchangeable FC/SC/ST

Uncertainty (dB)

±0.5

Linearity (dB)

±0.1

Insertion Loss (dB)

<1.5

Resolution (dB)

0.01

Measurement Unit

dB/dBm/xW

Optical Power Meter

Calibration Wavelength (nm)

850/1300/1310/1490/1550/1625

Detector

InGaAs

Measurement Range (dBm)

-70~+6 or -50~+26

Uncertainty (dB)

±0.25

Linearity (dB)

±0.1

Resolution (dB)

0.01

Connector

Interchangeable FC/SC/ST

Visual Fault Locator

Wavelength (nm)

650

Fiber

SM & MM

Output Power (mw)

≥1

Modulation (Hz)

CW & 2

General Information

Battery

AA(3pcs)

Working Hours (h)

90 without backlight

Operation Temperature (°C)

-10~+60

Storage temperature (°C)

-25~+70

Dimension (mm)

180*90*36.5

Weight (kg)

410g(excluding batteries)



Standard Accessories

1)   Main Unit

2)   Cleaning Stick

3)   Battery

4)   Carrying Bag

5)   Manual

6)   CD



Ordering Information



PPM6107 D-W-M-C-PA



Measurement Range (M)

Detector

(D)

Connector

(C)

Wavelength

(W)

M1: PM6107

M2: PM6107A

M3: PM6107B-T (-70~+6)

M4: PM6107B-C (-50~+26)

D1: InGaAs

D2: Si

D3: Ge

C1:Interchangeable FC/SC/ST/PC

C2:Interchangeable   FC/SC/APC



W1:850/1300/1310/1490/1550/1625nm

 W2: 850/980/1300/1310/1490/1550nm

 W3: others
