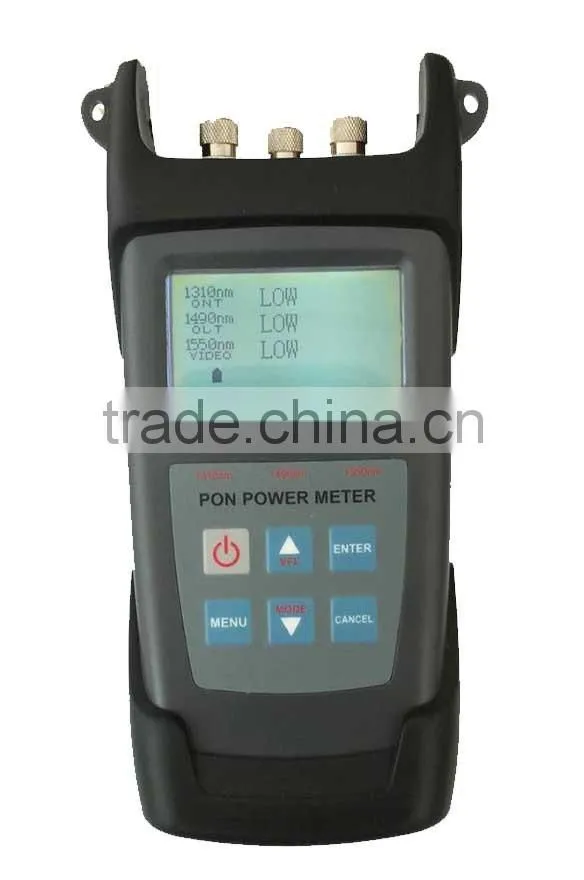

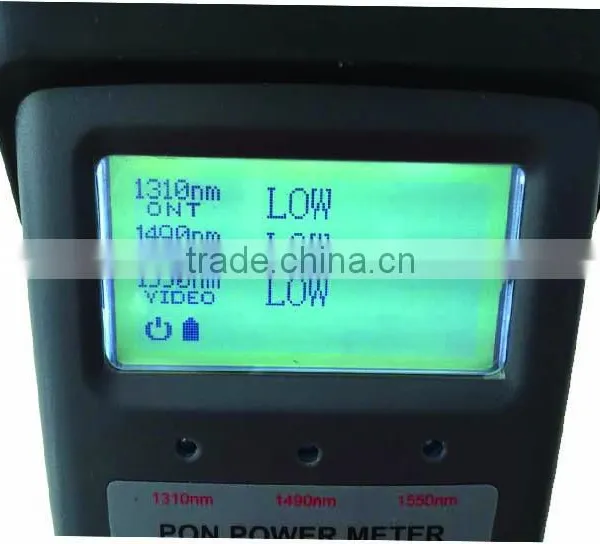

PM6107N Series Optical PON Optical Power Meter targets at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
To meet different test requirement, we develops 4 models PPM6107N optical PON power meter
--PPM6107N- Optical PON power meter
It is basic version of PON power meter, which can only test the PON signal.
--PPM6107N-AP Optical PON power meter +Normal Power Meter
It is PON plus normal power meter, which can test both of PON signal and normal signal.
--PPM6107N-AV Optical PON power meter +Visual Fault Locator
It is PON plus visual fault locator which can test both of PON signal and fault location.
--PPM6107N-A Optical PON power meter + Normal Power Meter+ Visual Fault Locator
It integrates 3 functions in one unit.
Features
- Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
- Simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
- Used in Burst mode measurement of 1310nm upstream.
- Connected with PC via software, setting the threshold, data transfer, and calibration the wavelength.
- 1000 test records storage via USB

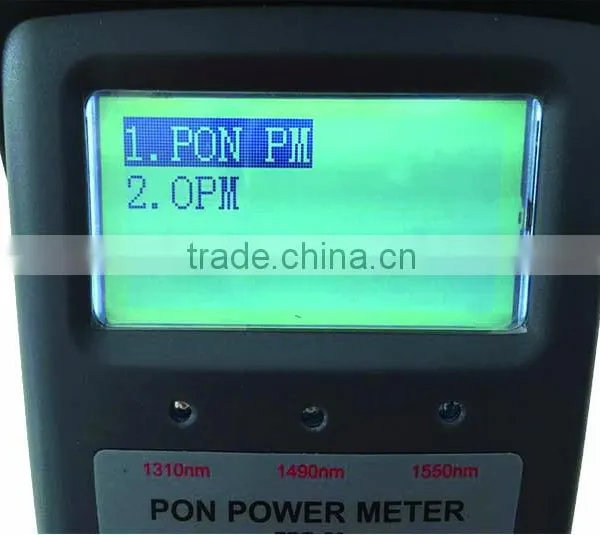

- Optional added OPM function or VFL function or both OPM and VFL
- Optical power meter and VFL with one port.(onlyPPM6107N-A)
- 10 different threshold sets in total, 3 status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
- 10 minutes Auto-off function can be activated or deactivated
- USB charging, USB power supply
- GPON test
- Optional rechargeable function
Specification
|
PON module:
|
PPM6107N |
PPM6107N-A |
PPM6107N-AV |
PPM6107N-AP |
|
1310 upstream measurement | |||||
Pass Zone(nm) |
1260nm~1360nm |
||||
MeasurementRange(dBm) |
-40dBm~+10dBm |
||||
Output power(max) |
15dBm |
||||
Isolation@1490/1550(dB) |
>40dB |
||||
Burst mode measurement error |
<±0.5dB |
||||
1490 downstream measurement | |||||
Pass Zone(nm) |
1470nm~1505nm |
||||
MeasurementRange(dBm) |
-40dBm~+10dBm |
||||
Output power(max) |
15dBm |
||||
Isolation@1310/1550(dB) |
>40dB |
||||
1550 downstream measurement | |||||
Pass Zone(nm) |
1535nm~1570nm |
||||
MeasurementRange(dBm) |
-40dBm~+20dBm |
||||
Output power(max) |
25dBm |
||||
Isolation@(1310/1490nm) |
>40dB |
||||
Measurement Accuracy | |||||
Connatural uncertainty (dB) |
±0.5dB |
||||
Linearity (dB) |
±0.1dB |
||||
Passing through insertion Loss (dB) |
<1.5dB |
||||
General Information | |||||
Detector Type |
InGaAs |
||||
Optical Connector |
FC/SC/ST Interchangeable/2.5 universal adapter |
||||
Fiber Type |
SM 9/125um |
||||
Measurement Unit |
dB/dBm/xW |
||||
Resolution (dB) |
0.01dB |
||||
Operation Voltage (V) |
DC 3.3V~5.5V |
||||
Power Supply |
3pc1.5V battery |
||||
Continuously Operation time (h) |
PON:90h OPM:100h VFL50h |
||||
Operation Temperature (℃) |
-10℃~60℃ |
||||
Storage temperature (℃) |
-25℃~70℃ |
||||
Weight (g) |
423 |
425 |
424 |
424 |
|
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) CD
Ordering Information
PPM6107 M-D-C-W | |||
Measurement Range (M) |
Detector (D) |
Connector (C) |
Wavelength (W) |
|
M1: PM6107N M2: PM6107N-APT (-70~+6) M3: PM6107N-APC (-50~+26) M4: PM6107N-AV1 (1mw) M5: PM6107N-AV1 (10mw) M6: PM6107N-AT (-70~+6) M7: PM6107N-AC (-50~+26)
|
D1: InGaAs D2: Si D3: Ge |
C1:Interchangeable FC/SC/ST/PC C2:Interchangeable FC/SC/APC
|
W1:850/1300/1310/1490/1550/1625nm W2: 850/980/1300/1310/1490/1550nm W3: others |
1. Standard warranty is 18 months.
2. For extended warranty,it is also available with additional and reasonable cost.
3. Customized products are also available as per your specific request.
1. Optical PON Power Meter +CD+USB cable+manual+battery+carrying pouch+carton box.
