Specifications
1. Fiber optic video microscope2 High resolution magnification
3. Video camera
4. Multi connectors available

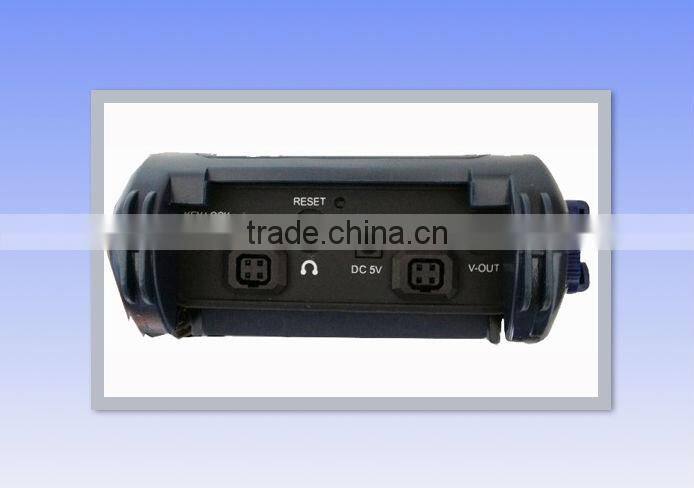

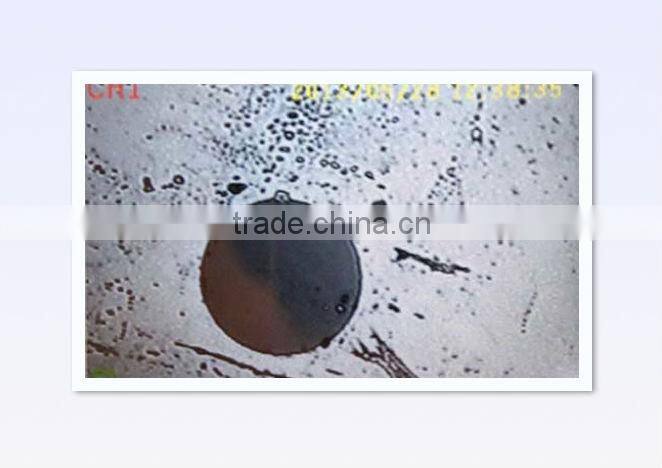

MC-750V Portable Fiber Optic Microscope is used to inspect end-face of fibers and check the optic connectivity. It magnifies fibers of 125um diameter 650 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly in the end.
Not only portable, easily in-hand,MC-750V Portable Fiber Optic Microscope is also multi-functional. It can detect simplex and ribbon fiber ends located in both male and female connectors, as well as other fiber units. Also, working comfortably is it’s another feature. Eliminating the need to finding solutions for hard-to-reach areas inspection, MC-750V Portable Fiber Optic Microscope can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking.
Features
- Portable Fiber Optic Microscope
- High-resolution magnification
- Video camera
- Multi connectors available
- Easy operation
Specification
Model | MC-750V |
Magnification | 400 |
Resolution (u) | 0.75 |
Focusing Method | Unidirectional |
Focusing Range (mm) | <2 |
Output | NTSC or USB |
Light Source | Coaxial Blue LED |
Light Source Lifespan (hrs) | >100,000 |
Image | 0.3” |
Power (v) | 5 |
Operating Temperature (°C ) | -20~+50 |
Humility | 99% |
Weight (kg) | 0.164 |
Dimension (mm) | 180x41x36 |
Standard accessory
1. Probe
2. LCD Screen
3. Standard Tips: 2.5PC-M/FC-SC-F/LC-F/LC Adapter
4. Power Adapter
5. 2G SD Card/Reader
6. USB Wire
7. Earphone
8. Video Wire
9. Black Soft Bag

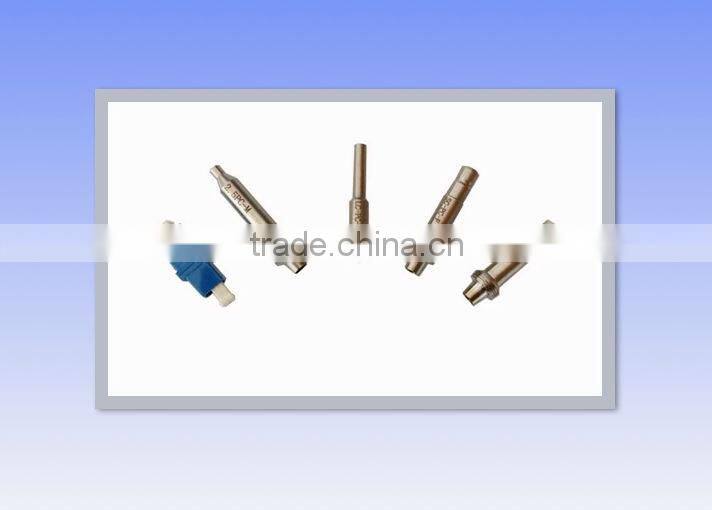

Optional Accessories
No. | Connector | Description |
1 | FC/SC-F | Inspect female fiber ends through FC/SC adaptors |
2 | LC/MU-F | Inspect female fiber ends especially in the high-density connector through LC/MU adaptors |
3 | FC-APC-F | Inspect APC female fiber ends through FC adapters |
4 | SC-APC-F | Inspect APC female fiber ends through SC adapters |
5 | ST-F | Inspect female fiber ends through ST adaptors |
6 | MU-F | Inspect female fiber ends through MU adaptors |
7 | E2000-F | Inspect female fiber ends through E2000 adaptors |
8 | 2.5PC-M | Inspect PC fiber ends of 2.5mm ferrules directly (Normally SC,FC,ST,E2000 four types) |
9 | 1.25PC-M | Inspect PC fiber ends of 1.25mm ferrules directly |
10 | 2.5APC-M | Inspect APC fiber ends of 2.5mm ferrules directly |
Ordering Information
MC-750V-C
C= Connector
C1: FC/SC-F
C2: LC/MU-F
C3: FC/APC-F
C4: SC/APC-F
C5: ST-F
C6: MU-F
C7: E2000-F
C8: 2.5PC-M
C9: 1.25PC-M
C10: 1.25APC-M
1. Standard warranty is 12 months.
2. Extended warranty is available with addtional and reasonable cost .
