FS-50 Fusion Splicer
- 100 Set / Sets per Month
- shanghai
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Sinomor | Model Number: | FS-50 |
Product Description
Specifications
1. Fusion Splicer2. Smart size and lightweight fusion splicer
3. High-resolution true color 5.7" LCD screen
- Product Description

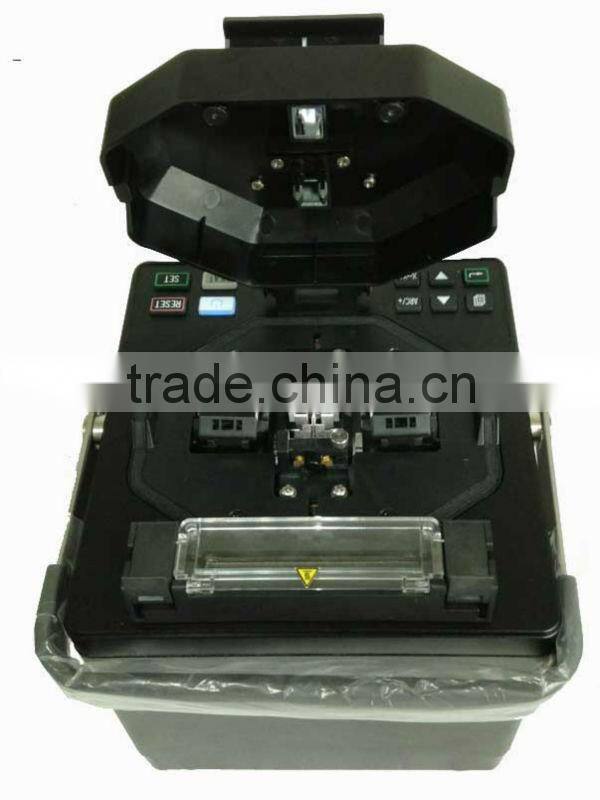

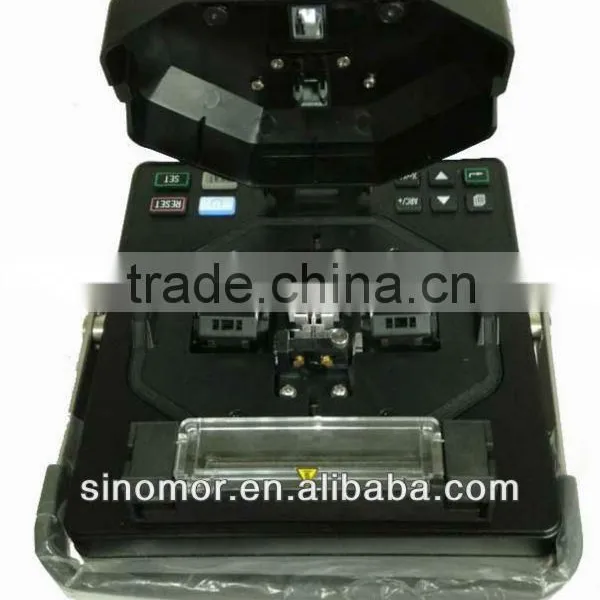

The FS-50 series fusion splicer is a newly designed and very popular splicing machine. Its strong function and extremely low loss make it perfectly meet the fiber trunk line and FTTx application requirements. With the lightweight and compact body, it can easily work under narrow environments.
Adopting the new and high-speed image processing system and digital design, its LCD screen could clearly display the fiber alignment and splicing process.
Adopting the special precision- positioning technology, it could automatically and accurately splice fiber in 8 seconds.
Adopting embedded real time operating system, it provides good operating interface and rich function.
With built-in large capacity lithium battery, the FS-50 series fusion splicer provides reliable security for long- time fieldwork.
With built-in real time compensation system of temperature, humidity and air pressure, the FS-50 series fusion splicer could automatically adjust with environment changes and ensure the low loss splicing even under adverse circumstances.
Features
- Fusion Splicer
- 8 seconds splicing time, 30 seconds heating time
- Smart size and lightweight, only 2.8kg including battery
- High-resolution true color 5.7” LCD screen
- Multi-language
- The advanced core to core fiber profile alignment system (PAS)
- Real time battery capacity monitoring
- 220 times splicing and heating with one fresh battery charge
- Up to 4000 times electrodes lifespan
- Max. wind velocity is 15m/s
- Enhanced wind and dust prevention ability via new wind cover deisgn
- 3 splicing modes: auto, half-auto and manual
- Built-in super high-brightness LED supply convenience for night work
- Auto splicing loss calculation
- 4000 test records storage
- USB data interface &VGA
- Automatically splicing with wind shield covered
- Automatically heating with heating covered
Specification
Model | FS-50 |
Applicable Fiber | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
Average Splicing Loss (dB) | 0.02(SM), 0.01(MM), 0.04(DS), 0.04(NZDS) |
Typical Splicing Time (s) | 8 |
Typical Heating Time (s) | 30 |
Return Loss (dB) | >60 |
Fiber Coating (μm) | 100~1000 |
Fiber Cladding (μm) | 80~150 |
Fiber Cleave Length (mm) | 8~16 (coating diameter<250µm), 16 (coating diameter 250~1000µm) |
Splicing Program | 10 units factory setting SM program; 10 units factory setting MM program; 30 units user setting SM program; 30 units user setting MM program |
Working Mode | Manual, Half Automatic, Auto |
Heating Mode | Auto |
Magnifications (times) | X:152; Y:304 |
Align Mode | Advanced profile alignment system (PAS) |
Screen Display | 5.7” (640*480 pixels) |
Lighting for Construction | Built-in super High-brightness LED supply convenience for night work |
Heat-Shrinkable Tube (mm) | 40,60 and other micro Heat-Shrinkable Tube |
Storage | 4000 records |
Data Transmission | USB port &VGA |
Electrode Life (times) | >4000 (replaceable) |
Tension Test | 2N |
Battery | Built in 11.1V Li-ion battery |
Operating Time (h) | >3.5 |
Battery Cycling (times) | 300~500 (replaceable) |
Power Supply | AC: 100-240 50Hz/60Hz 30W;DC: 13.5V/4.5A;
|
Operating Temperature (°C) | -25 ~ 50 |
Storage Temperature (°C) | -40 ~ 80 |
Relative Humidity | 0 to 95% (non-condensing) |
Work Altitude (m) | 0~5000 meters |
Dimensions (mm) | 160×150×140 |
Weight (kg) | 2.8 including battery |
Package (kg) | 8.0 |
Package (mm) | 500×350×400 |
Standard Accessories
1) Fusion Splicer

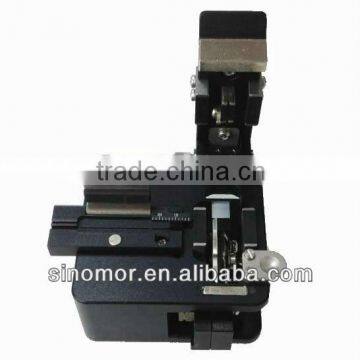

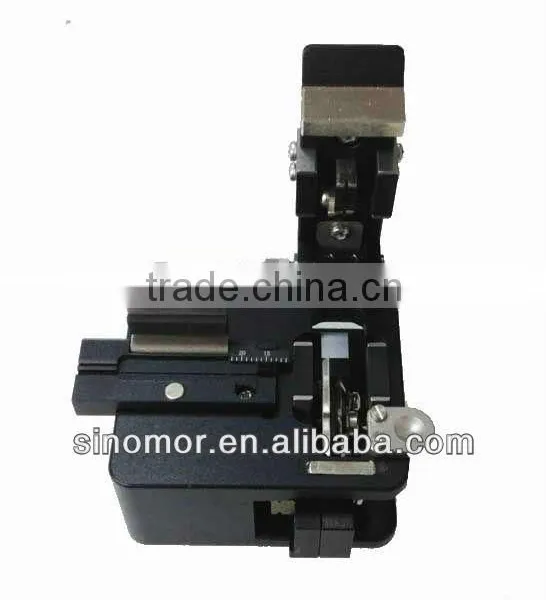

2) Cleaver

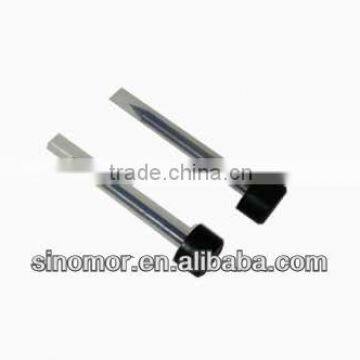

3) Spare Electrodes
4) Stripper
5) Cooling Tray
6) V groove Cleaning
7) Blow Brush
8) Alcohol Dispenser
9) Monitor Coating
10) Monitor Cover
11) USB Flash Disk
12) AC Adapter/Battery Charger
13) Battery Charger Cable
14) Battery Pack
15) CD
16) Manual

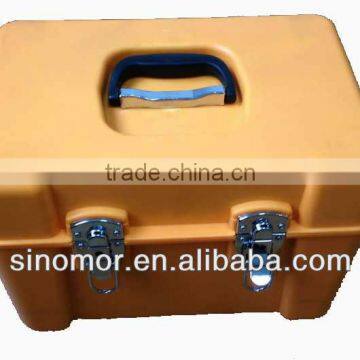

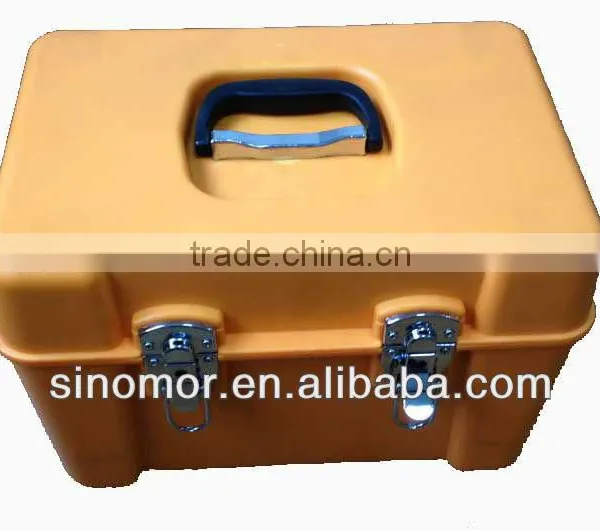

17) Carrying Case
Ordering Information
FS-50-PA
1) PA=Power Adapter
PA1: USA power adapter
PA2: EU power adapter
PA 3: UK power adapter
1. Standard warranty is 12 months.
2. Extended warranty is available with reasonable additional cost.
