Specifications
1. high quality splicing machine2. faster heating time 28s
3. removable battery design
4. multi-functional carrying case
Overview

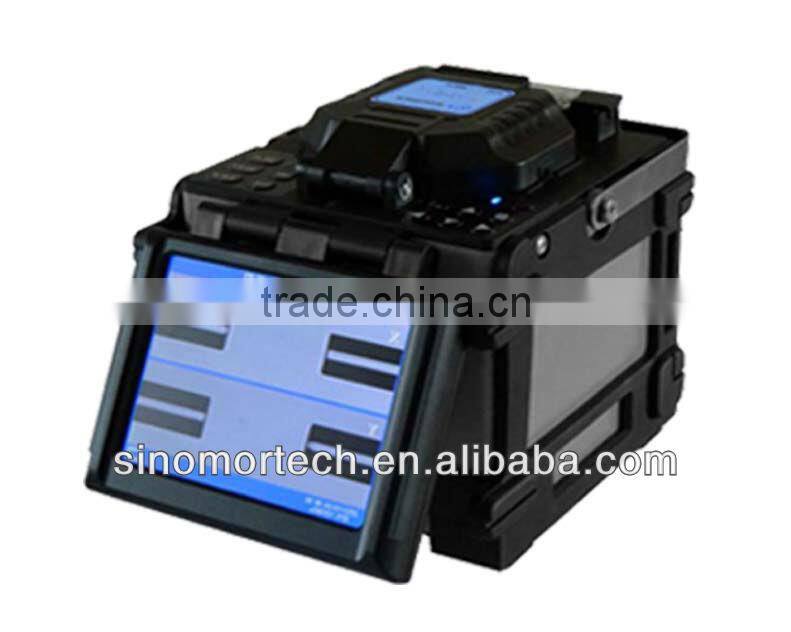

The FS-50Tseries fusion splicer adopt high-speed image processing technology and special precision positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD scree clearly monitor the whole splicing process.
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish, English etc.
Features
- High-resolution true color 5.6” LCD display
- Cleaver with fiber scrap disposal
- Advanced core to core fiber profile alignment system (PAS)
- Real-time calibrating system, no need to adjust parameter
- X/Y axes simultaneously display, up to 304 times magnification
- 8 seconds splicing time,
- 28 seconds Heat-Shrinking
- Real-time battery capacity display
- Built-in high capacity battery, support 220 times splicing and heating,
- Up to 4000 times long electrode lifespan
- Max. wind velocity of 15m/s with the new wind-cover design
- Splicing modes, auto and manual
- Built-in super high-brightness LED, convenient for night work
- Auto calculation of splicing loss
- 4000 splicing results Storage
- USB data interface and VGA
- One button operation for results download or software update
- Close shield splice automatically, Close heater lid heat automatically
- 12 month Warranty
- Small bulk and light weight, only 2.8kg include battery
Specification
Model | FS-50T |
Fiber Types | Single-mode (ITU-TG.652), multi-mode (ITU-TG.651), dispersion shifted (ITU-TG.653), non-zero dispersion shifted (ITU-TG.655) and other SMF including ITU-TG657fibers |
Average Splicing Loss (dB) | 0.02(SM), 0.01(MM) and 0.04(DS,NZDS) |
Typical Splicing Time (s) | 8 |
Typical Heating Time (s) | 28 |
Return Loss (dB) | ≥60 |
Fiber Coating (μm) | 100~1000 |
Fiber Cladding (μm) | 80~50 |
Fiber Cleave Length | 8~16mm(coating diameter<250µm),16mm(coating diameter 250~1000µm) |
Program | 10units factory setting SM program, 10 units factory setting MM program, And 30 units user setting SM program, 30 units user setting MM program |
Align Mode | Advanced profile alignment system (PAS) |
Storage | 4000 |
Data Transmission | USB port & VGA |
Heater | Built-in tube heater, AUTO Heat Mode. |
Heat-Shrinkable Tube | 40mm, 60mm and a series of micro Heat-Shrinkable Tube |
Screen Display | Two CMOS cameras, 5.6 inch 640*480 TFT LCD, core of the fiber is clearly visible |
Lighting for Construction | Built-in super High-brightness LED supply convenience for night work |
Magnifications | 300X for single X or Y view, 300X for X and Y view (left/right), 150X for X and Y view (up/down) |
Working mode | Auto/Manual |
General Information | |
Power Supply | Alternating Current: 100-240v 50Hz/60Hz30W, Direct current: 13.5V/4.5A Built-in 11.1V Li-ion battery charger and AC adapter |
Battery Life | Support 220 cycles (splicing and tube heating) on one charge (Min 3.5hours) |
Battery Lifetime | Cycle life up to 300~500 times, replaceable |
Tension Test | 2N |
Electrode Life time | >4000 times, replaceable |
Operating Temperature (°C) | -25~+50 |
Storage Temperature (°C) | -40~+80 |
Relative Humidity | 0 to 95%(non-condensing) |
Working Altitude (m) | 0~5000 meters above sea level |
Instrument Weight (kg) | 2.3kg(no battery) with AC/DC adapter, 2.8kg (including battery), |
Dimensions (mm) | 160×150×140 |
Package Gross Weight (kg)
| 10.0 |
Package Net Weight (kg) | 9.0 |
Package (mm) | 620×420×360 |
Standard Accessories
1) Main unit
2) Tri-hole stripper

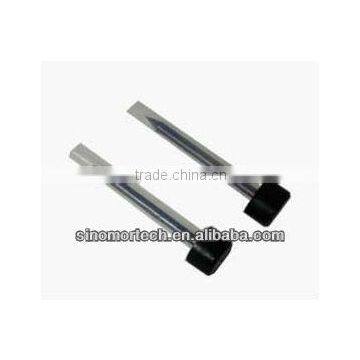

3) Spare electrodes

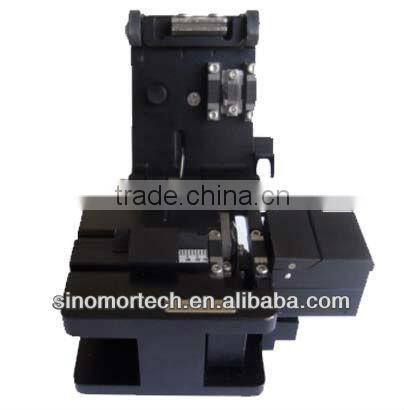

4) Cleaver

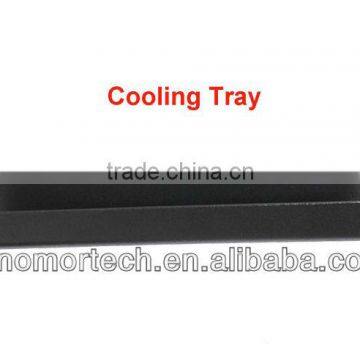

5) Cooling tray
6) Alcohol bottle
7) Blower brush
8) Power adapter
9) AC cable
10) USB flash disk
11) CD
12) Monitor coating
13) Monitor cover
14) V-groove cleaning brush

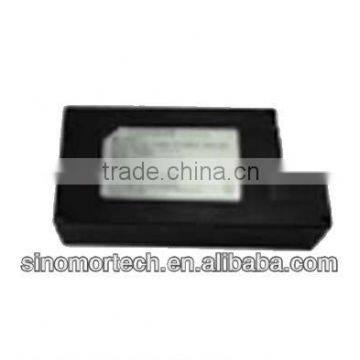

15) Battery pack
16) Manual
17) Carrying case
Optional Accessories
1) Cigar-socket cord
2) Cleaver blade
3) Protection sleeve
Ordering information
1) P=Power Adapter
P1-USA power adapter
P2- EU power adapter
P3-UK power adapter
