CRI-3000 Common Rail Solenoid & Piezo Injector Tester

Specifications

Test one CR injector of solenoid or piezo technologies with an optional manual pump

CRI-3000, the repair tester to simulate the engine ECU driving signals for a common rail injector of either solenoid technology or piezo technology, made by Bosch, Delphi, Denso and Siemens. The user is able to set the control parameters of fuel injection drive signals.

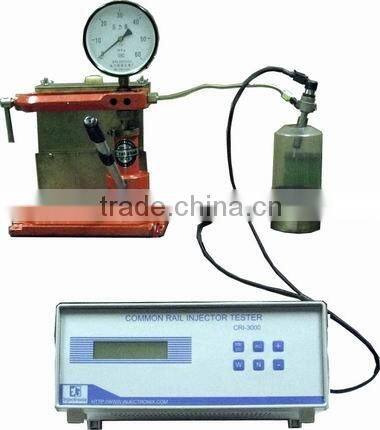

By combining of a CRI-3000 tester and a high pressure fuel source, which may be a mechanical manual pump, or an electrical motor driven pump, or a pneumatic driven pressure booster, to feed the CR injector, the user is able to fulfill the tasks of checking nozzle spray pattern and injector back leakage for an CR injector with either solenoid or piezo technology.

Design Features

      Able to provide injection control signals for a Siemens/Bosch common rail injector with piezo technology

       Able to provide injection control signals for a Bosch, Delphi and Denso common rail injector with solenoid technology.

               High voltage drive for Bosch/Denso injectors

               Low voltage drive for Delphi injectors

  Modulated driving signal to ensure the safety of the solenoid or piezo actuator of the injector.

  User adjustable frequency and pulse width for injector driving signal

  Short circuit protection for solenoid and piezo driving signals

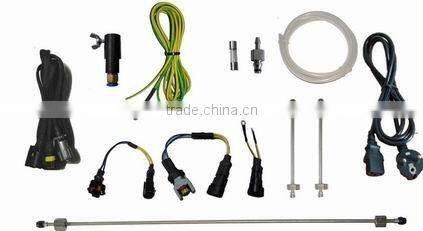

  Rich accessories, ready to test Bosch, Denso, Delphi and Siemens injectors
