Control Cable Copper Conductor PVC Insulated and PVC Sheathed Cable----KVV
- Ningbo Shanghai Guangzhou
- T/T
You May Like
-
PVC Insulated PVC Sheathed Automotive Control Cable Cable 3x1.5mm2
-
Copper Core PVC Insulation Flexible Control Cable Elevator Cable 3x2.5mm2
-
Copper PVC Insulated PVC Sheathed Strand Circular Control Cable 3x4mm2
-
Copper PVC Insulated PVC Sheathed Flexible Control Cable 3x6mm2 KVV Cable
-
Copper PVC Insulated PVC Sheathed Control Cable Elevator Cable 3x10mm2
-
Copper PVC Insulated PVC Sheathed Control Cable Elevator Cable 4x0.75mm2
Product Details
| Brand Name | Xinfeilu | Model Number | KVV | |
| Application | Construction | Conductor Material | Copper | |
| Jacket | PVC | Insulation Material | PVC |
Product Description
Copper Conductor PVC Insulated PVC Sheathed Control Cable--KVV(2x4mm2)
Specification
1.Strong capability, best delivery
2.Reliable quality, best price
3.Rated voltage:450/750V
4.Professional manufacturer
5.CCC, CQC,ISO9001
Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

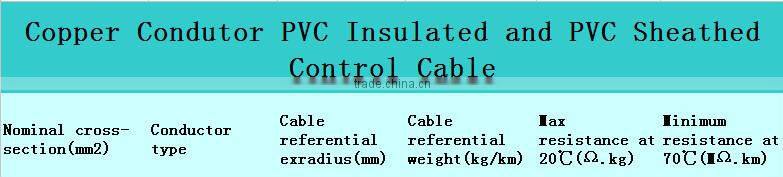

Technical parameters
| 2x0.75 | 1 | 7.2 | 61 | 24.5 | 0.012 |
| 2x0.75 | 2 | 7.5 | 65 | 24.5 | 0.014 |
| 2x1.0 | 1 | 7.6 | 69 | 18.1 | 0.011 |
| 2x1.0 | 2 | 7.8 | 74 | 18.1 | 0.013 |
| 2x1.5 | 1 | 8.5 | 90 | 12.1 | 0.011 |
| 2x1.5 | 2 | 8.9 | 95 | 12.1 | 0.010 |
| 2x2.5 | 1 | 9.6 | 124 | 7.41 | 0.010 |
| 2x2.5 | 2 | 10.2 | 135 | 7.41 | 0.009 |
| 2x4 | 1 | 10.6 | 164 | 4.61 | 0.0085 |
| 2x4 | 2 | 11.2 | 176 | 4.61 | 0.0077 |
| 2x6 | 1 | 11.6 | 215 | 3.08 | 0.0070 |
| 2x6 | 2 | 13 | 230 | 3.08 | 0.0065 |
| 2x10 | 2 | 16.5 | 377 | 1.83 | 0.0065 |
| 3x0.75 | 1 | 7.5 | 69 | 24.5 | 0.012 |
| 3x0.75 | 2 | 7.8 | 74 | 24.5 | 0.014 |
| 3x1.0 | 1 | 7.9 | 80 | 18.1 | 0.011 |
| 3x1.0 | 2 | 8.2 | 85 | 18.1 | 0.013 |
Attention: We can provide more information than above data, if needed. The above are just some examples.

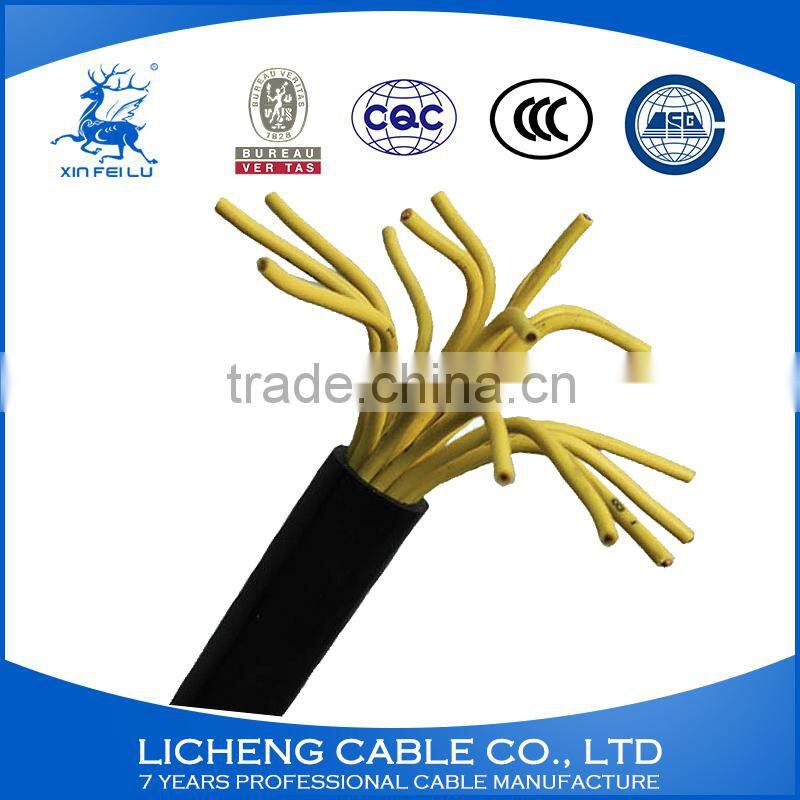

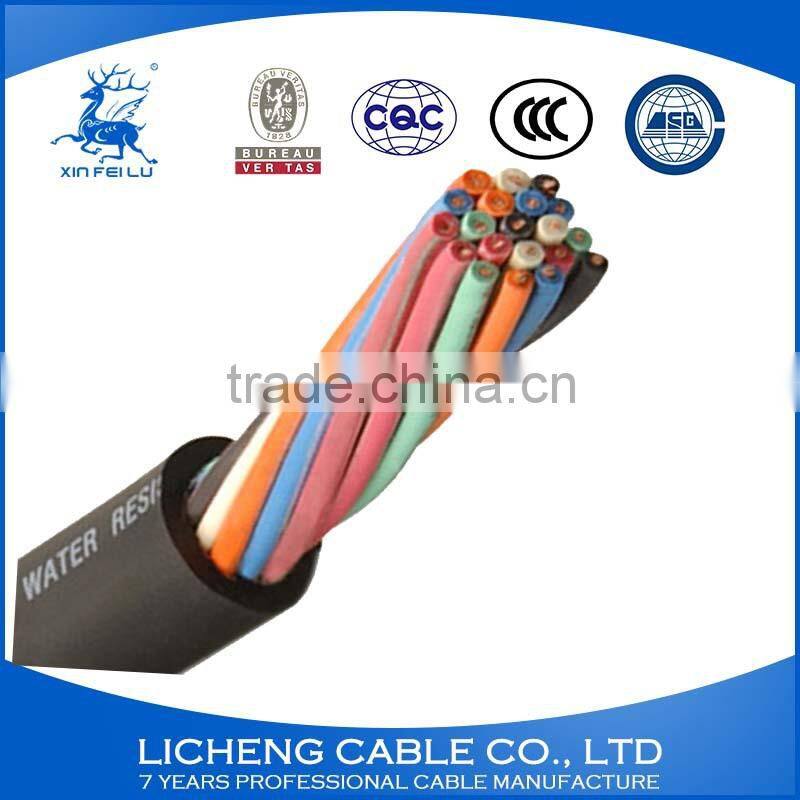

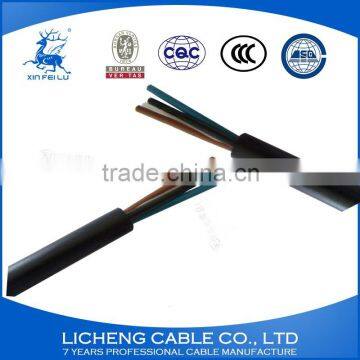

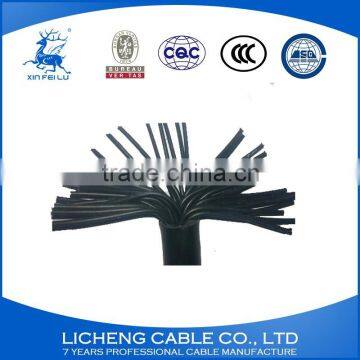

Products picture:
We promise you of the most competitive price. if you need,we can offer you some samples for your reference.

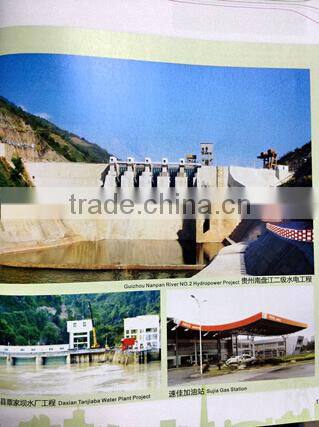

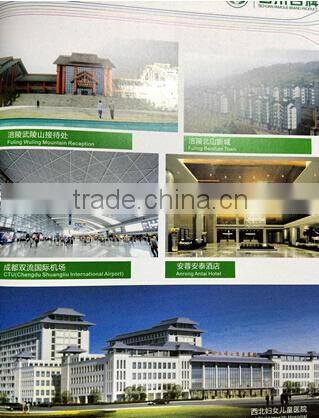

Achievements

1.when can I get the price?
we usually quote within 6 hours after we get yout inquiry.If you are very urgent to get price,please call us or tell us in your Email so that we will regard your inquity priority.
2.How can I get a sample to check your quality?
For quality reference, we can supply 1-2 samples for free.But the freight will be collected.
3.Are your products of good quality? How can I trust you?
Yes.we are professional manyfacturer in chaina, hacing 7 years experience of producing cables,and our products have win good reputations.If this is your first time to contact us,please trust us, we will not let you down.
4.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files,the samples will be ready delivery in 3-7days.The samples will be sent to you via express and arrive in 3-5days. You can use your own express account or prepay us if you do not have an account.
5.what about the lead time for mass production?
Honestly,it depends on the order quantity and the season you place the order.the best record we keep is deliverying 10 kilometers cable within a week. Generally speaking.we suggest that you start inquiry two months before the date you would like to get the products at your country.
Company Profile
Licheng cable co.,ltd is one of the best cable manufacturers, who have our own factory,
we own an advanced production line and testing equipment,professional engineers
and skilled workers.
Licheng Cable Co., Ltd has always been adhering to this development philosophy:
“Quality first; Customers oriented; Credible cooperation; Mutual benefits.” Our
company attaches great importance to the product quality, constitutes a
perfect quality control system, and formulates an effective quality control
mechanism. No matter when and where, our experienced,prominent,
responsible quality engineers have always been managing and controlling
each link in the process of production so as to provide our clients with better products without flaws and excellent service.
Business information
Business type: Manufacturer&Trading company
Main products: Cable,Power Cable,Control Cable,Electrical Cable
Trade&Market:
Main market: Domestic Market.
Central America
Western Europe
Eastern Asia
Southeast Asia
Eastern Europe
South America
North America
Mid East
Oceania
Africa
Certificates:

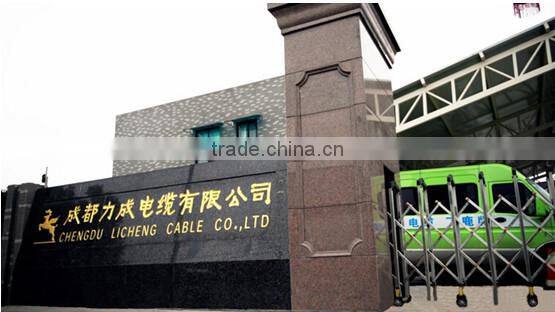

Factory:
Packing:
Inspection:
Please don't hesitate to contact us if you have any problem. Your inquiry is welcomed at anytime.
We are confident in rendering our best service to you with promptness & efficiency.
