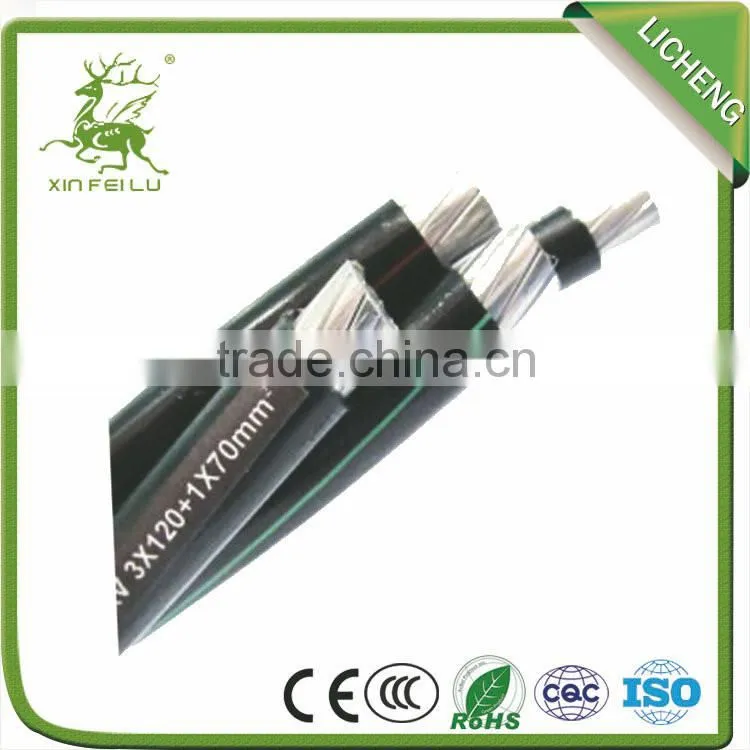

Best selling products 2015 parallel bunched aerial cable from chinese merchandise
- 2000000 Meter / Meters per Month
- Shanghai Guangdong Ningbo
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Xinfeilu | Model Number: | Aerial Cable |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Industrial |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
aluminum conductorPVC/ PE/XLPE Insulated ABC Aerial Bundle Cable |
1 .Type: Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop |
Duplex Service Drop Applications: To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Triplex Service Drop Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
Quadruplex Service Drop Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors. |
Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft (lbs) | Ampacity (amps) | ||||||
Size AWG | Stranding | Insulation Thickness (mls) | Size AWG | Stranding | Breaking Strength (lbs) | XLPE | Poly | XLPE | Poly | |
6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
Minex | 6 | Solid | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 |
Hippa | 6 | 7 | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 |
Prawn | 4 | Solid | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 |
Barnacles | 4 | 7 | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 |
Shrimp | 2 | 7 | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 |
Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4,460 | 411.7 | 386.0 | 205 | 160 |
Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4,460 | 402.7 | 386.0 | 205 | 160 |
Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 |
Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 |
Dlustra | 3/0 | 19 | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 |
Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 |
1. By export standard rolls or drums
2.The length and package can be followed by the customer's requirement
Chengdu licheng Cable Co., Ltd is a high-tech privately owned enterprise with diversification industrial
structure.Since its estalishment ,Chengdu licheng Cable Co., Ltd. has always adhering to this
management philosophy: "High quality, supreme customers credible management, and win-win coopreration
. Our company has been passed”CCC” (China complusory certification),"ISO9001: 2008 international quality
management system certification”. Our brand “Xinfeilu”has been awarded”China renowned Brand”
The main products of our company are: PVC insulated flexible wires and cables , PVC insulated non-sheathed
wires and cables , PVC insulated PVC Sheathed wires and cables, Halogen-free and low-smoke wires and
cables, Flame-retardant and Fire-resistant wires and cables , power cables, Control cables, Aerial/Overhead
cables and some other products.
The company continues to strengthen the structural adjustment and product upgrades. The sales network
hascovered 15 provinces and municipalities all over the country, and has also entered for great national
projects including Chengdu Shuangliu International Airport, Guizhou Nanpan River NO.2 Hydropower Project, etc.
Meanwhile, the company set up the international market system with its forward-looking philosophy and
stouthearted operation. It has successively built business relationships with over 100 importers in nearly 30
countries throughout Southeast Asia, the Middle East and Africa.
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery.
Sample order in stock, and 3-7 days for bulk production.
6. Payment
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
7. Package
packing length: 100m/roll
outer packing: cartoon box
package can be followed by customer's requirement
