Made in wenzhou insulated pin electricalterminal connector
- 1000000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
High quality DBV Series insulated crimp blade terminal battery
-
Corrosion resistance,Good Insulation insulated crimping blade terminal
-
Corrosion resistance,Good Insulation insulated blade flat terminal connector
-
American,Japan,Germany Standard insulated blade terminal types for electrical cable connector
-
ISO9001,CE,SGS,ROHS,TUV insulated blade copper terminal
-
Red, Blue, Yellow, Black insulated blade terminal kit connector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sunlight/OEM | |
| Model Number | PTV series | Type | Other, pin terminal |
Product Description
Made in wenzhou insulated pin electricalterminal connector
1. Made in wenzhou insulated pin electricalterminal connector Application
Made in wenzhou insulated pin electricalterminal connector is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit . The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.
2. Made in wenzhou insulated pin electricalterminal connector Description and reference
|
| lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A material: pure copper thickness:0.75mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 1.25-9 | 1.9 | 19 | 10 | 4.3 | red |
| PTV 1.25-10 | 1.9 | 20 | |||
| PTV 1.25-12 | 1.9 | 22 | |||
| PTV 1.25-13 | 1.9 | 23 | |||
| PTV 1.25-18 | 1.9 | 28 | |||
| lead section: 1.5~2.5mm2(A.W.G:16~14) Imax=27A material: pure copper thickness: 0.8mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 2-9 | 1.9 | 19 | 10 | 4.9 | blue |
| PTV 2-10 | 1.9 | 20 | |||
| PTV 2-12 | 1.9 | 22 | |||
| PTV 2-13 | 1.9 | 23 | |||
| PTV 2-18 | 1.9 | 28 | |||
| cable size: 2.5~4mm2(A.W.G:14~12) Imax:Imax=37A material:pure copper thickness:1.0mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 3.5-10 | 2.8 | 20 | 13 | 6.2 | black |
| PTV 3.5-13 | 2.8 | 25.5 | |||
| cable size:4~6mm2(A.W.G:12~10) Imax:Imax=48A material:pure copper thickness:1.0mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 5.5-13 | 2.8 | 25.5 | 13 | 6.7 | yellow |
| PTV 5.5-18 | yellow | ||||
3. Made in wenzhou insulated pin electricalterminal connector Category Introduction
|
|

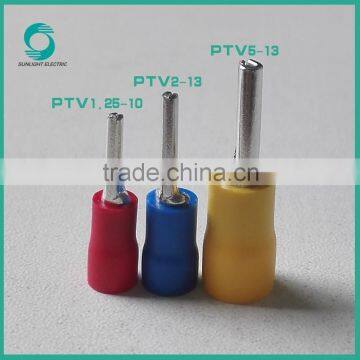

4. Made in wenzhou insulated pin electricalterminal connector Pictures
|
|
|
|
5. Made in wenzhou insulated pin electricalterminal connector other types Pictures
|
6. Made in wenzhou insulated pin electricalterminal connector Certificates
|
7. Made in wenzhou insulated pin electricalterminal connector Packing
|
8. Made in wenzhou insulated pin electricalterminal connector Shipping
9. Made in wenzhou insulated pin electricalterminal connector After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of Terminal products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
|
|
