PTV cable insulated pin battery terminal connectors
1. PTV cable insulated pin battery terminal connectors Application
PTV cable insulated pin battery terminal connectors is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit . The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.
2. PTV cable insulated pin battery terminal connectors Description and reference
|
| lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A material: pure copper thickness:0.75mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 1.25-9 | 1.9 | 19 | 10 | 4.3 | red |
| PTV 1.25-10 | 1.9 | 20 | |||
| PTV 1.25-12 | 1.9 | 22 | |||
| PTV 1.25-13 | 1.9 | 23 | |||
| PTV 1.25-18 | 1.9 | 28 | |||
| lead section: 1.5~2.5mm2(A.W.G:16~14) Imax=27A material: pure copper thickness: 0.8mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 2-9 | 1.9 | 19 | 10 | 4.9 | blue |
| PTV 2-10 | 1.9 | 20 | |||
| PTV 2-12 | 1.9 | 22 | |||
| PTV 2-13 | 1.9 | 23 | |||
| PTV 2-18 | 1.9 | 28 | |||
| cable size: 2.5~4mm2(A.W.G:14~12) Imax:Imax=37A material:pure copper thickness:1.0mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 3.5-10 | 2.8 | 20 | 13 | 6.2 | black |
| PTV 3.5-13 | 2.8 | 25.5 | |||
| cable size:4~6mm2(A.W.G:12~10) Imax:Imax=48A material:pure copper thickness:1.0mm | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 5.5-13 | 2.8 | 25.5 | 13 | 6.7 | yellow |
| PTV 5.5-18 | yellow | ||||
3. PTV cable insulated pin battery terminal connectors Category Introduction
|
|

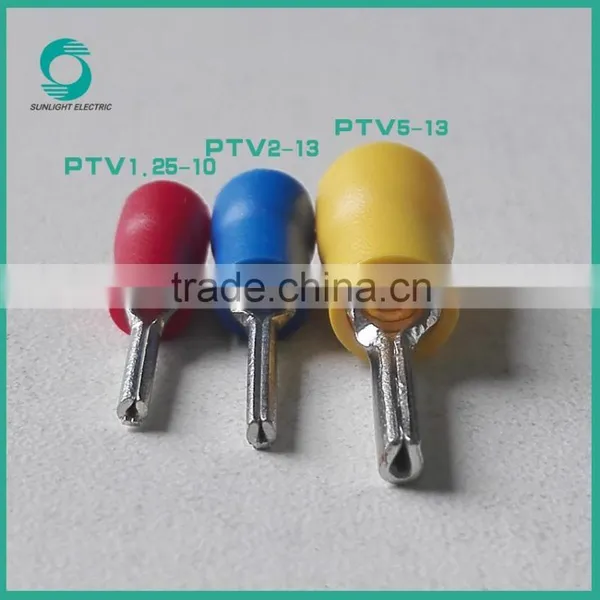

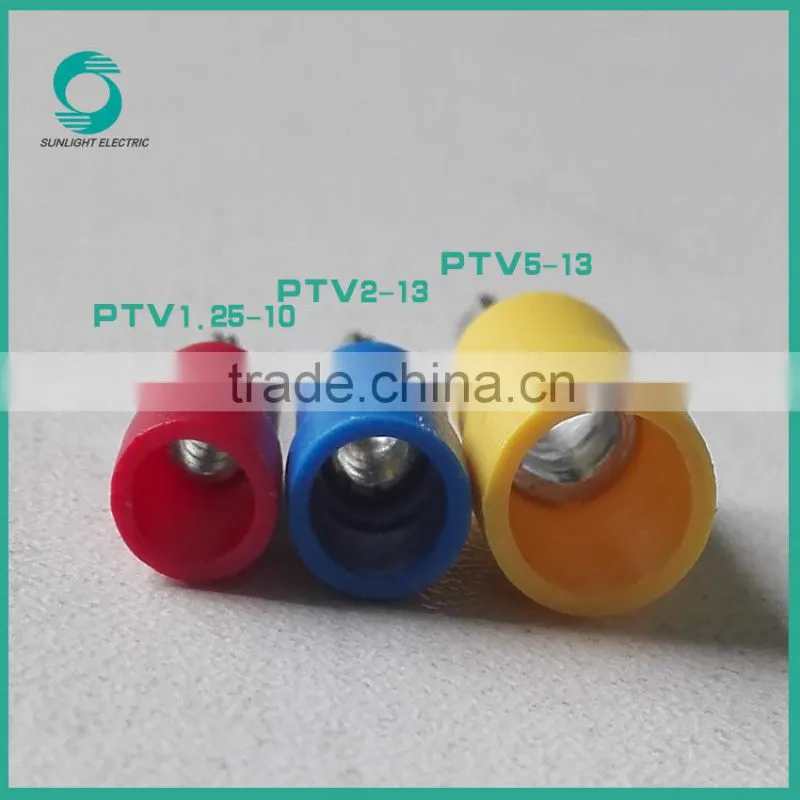

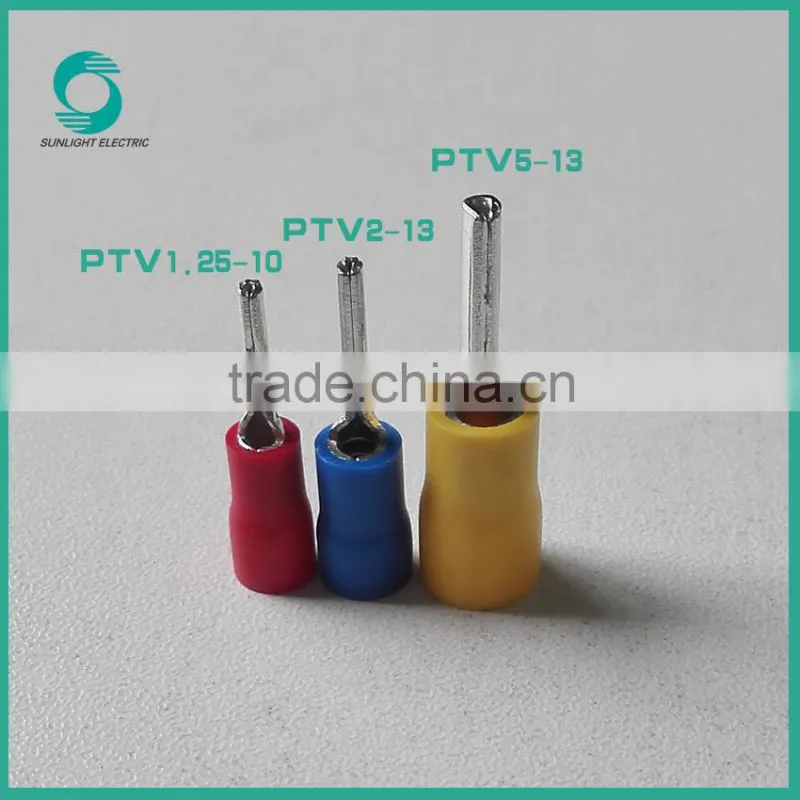

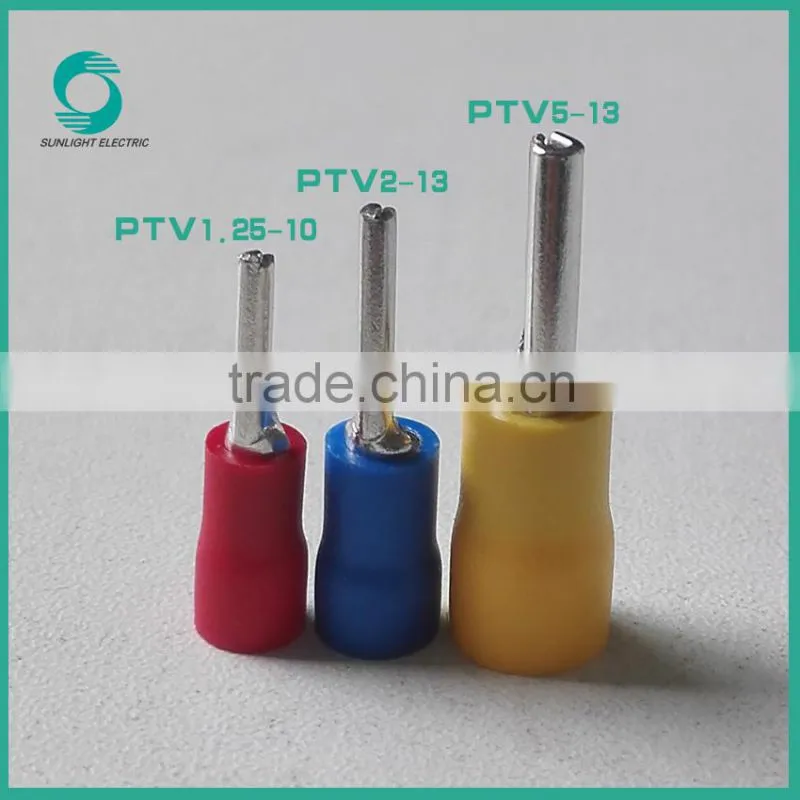

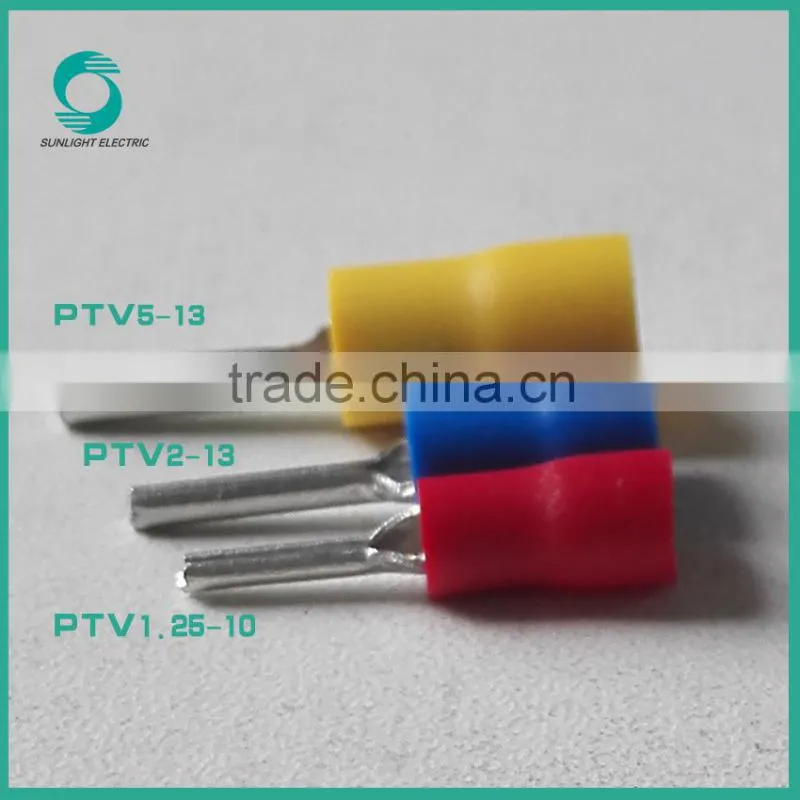

4. PTV cable insulated pin battery terminal connectors Pictures
|
|
|
|
5. PTV cable insulated pin battery terminal connectors other types Pictures
|
6. PTV cable insulated pin battery terminal connectors Certificates
|
7. PTV cable insulated pin battery terminal connectors Packing
|
8. PTV cable insulated pin battery terminal connectors Shipping
9. PTV cable insulated pin battery terminal connectors After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of Terminal products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
|
|
