Tr3050 x 50w Laser Engraving Cutting Machine

Tr3050 x 50w Laser Engraving Cutting Machine photo-1
Tr3050 x 50w Laser Engraving Cutting Machine photo-2
Tr3050 x 50w Laser Engraving Cutting Machine photo-3
Tr3050 x 50w Laser Engraving Cutting Machine photo-4
Tr3050 x 50w Laser Engraving Cutting Machine photo-5
Tr3050 x 50w Laser Engraving Cutting Machine photo-6
US$ 1,200 - 1,666.66 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
400*300 (mm)
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type CO2
Engraving Area 400*300 (mm)
Engraving Speed 50-400mm/s
CNC or Not No
Cooling Mode Water Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported AI, PLT, DXF, BMP, DWG, Other, AI, PLT, DXF, BMP, DWG, CDR,WMF,EMF,EPS,PSD,SVGJPG,PNG,GIF,PDF
Place of Origin Henan, China
Brand Name Amydor
Model Number Elfin-3040C
Dimension(L*W*H) 800*650*400 (mm)
Certification CE, ISO
After-sales Service Provided Overseas third-party support available

Specifications

1.Imported high speed side rail, highspeed and high precision
2.Double infrared location, accuracy and quick reduce scracp rate





Product Description

   Main paramaters

Laser Tube Wattage60-80-100W(optional)
Laser TypeSealed Co2 Glass Laser Tube
Laser CoolingWater Cooling
Work Area300x400mm
Lifting Height of worktable130mm
Engraving Speed50-400mm/s
Cutting Speed6-30mm/s
Positioning Accuracy±0.05mm
Comuputer InterfaceUSB port
Graphic format supportedAI,PLT,DXF,BMP,DST,DWG,LAS,DXP,CDR,CAD,etc
Appearance size800*650*400mm
wooden packaging 1230*780*605mm
Gloss weight80KG (wooden packing)
PackingPlaywood case
Electrical RequirementsAC 220V / 50Hz
Total power350w
Warranty period1 year
Infrared locatoryes
Optional device

1. Front-loading fan;

2. Rotary device.





Application area: Personalized crafts,gifts,Gass crafts, Packaging and Printing,paper-cutting industry,clothing,leather and stamp making industries.



Application material:

Marble carve portraityes
Personalized materials processingyes
Personality pendant,acrylic,breastplate,mobile shell,flash drive, plexiglassyes
Crafts and gifts:Photo frames,glass cup,packagingyes
Crystal jewelry:jade,stone,crystalyes
Garment leather:leather,fabric,cowboyyes
Paper industry:Paper-cutting,window grillesyes





Features:



1. Import liner high speed side rail, high speed and high accuracy.



2. Newly professional motherboard and software, powerful and support CorelDRAW output.



3.Current LTD monitor, easy to operation.



4.Double infrared location, accuracy and quick, reduce scrap rate.



5.Equipped with lead fan, which could exhaust the smoke clean.

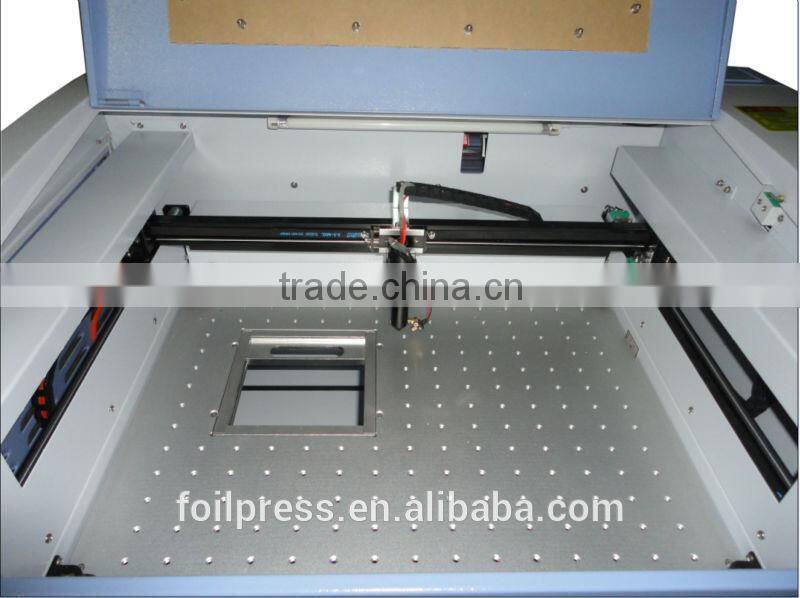

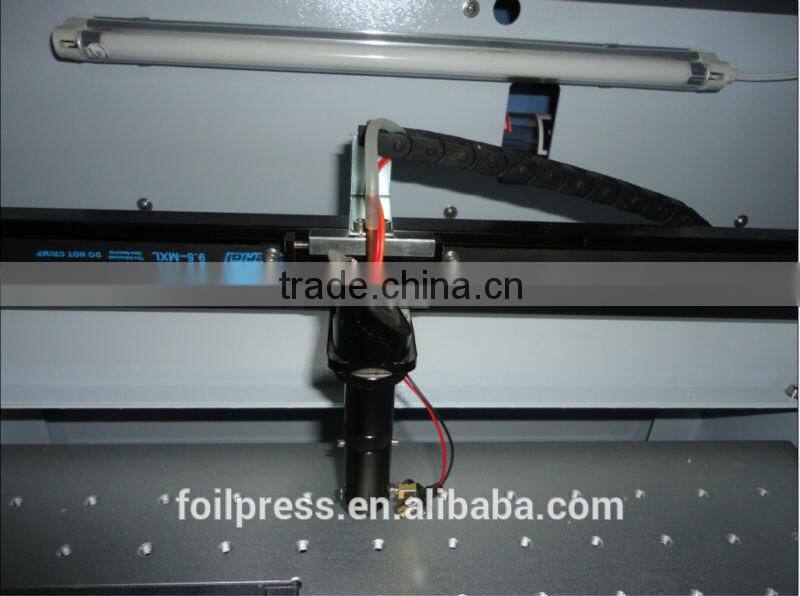

Machine parts:





 tr3050 x 50w laser engraving cutting machine







tr3050 x 50w laser engraving cutting machine



tr3050 x 50w laser engraving cutting machine

               Power box

tr3050 x 50w laser engraving cutting machine

                           Panel

tr3050 x 50w laser engraving cutting machine

                       Exhaust Fan

tr3050 x 50w laser engraving cutting machine

                    Air Pump

tr3050 x 50w laser engraving cutting machine

                     Water pump

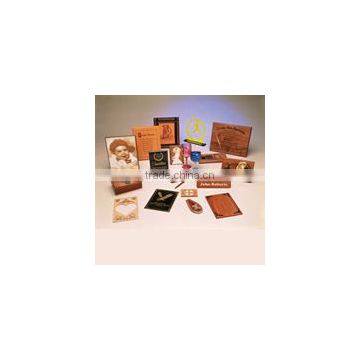

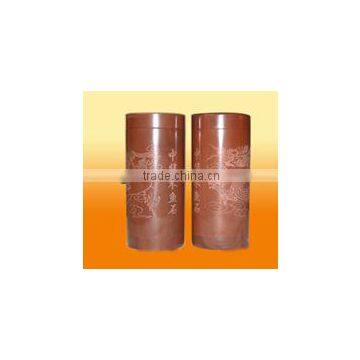

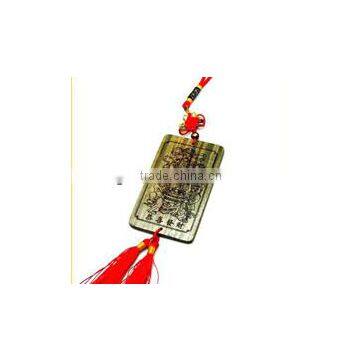

Sample show:

tr3050 x 50w laser engraving cutting machinetr3050 x 50w laser engraving cutting machine
tr3050 x 50w laser engraving cutting machinetr3050 x 50w laser engraving cutting machine




Packaging & Shipping

   Sales packaging: Each machine with a standard export wooden box.




Our Services



Warranty and Service:

1.one year equipment warranty and maintenance for lifetime.

2.free installation and test before sending and free training for operators

3.advice for the solutions best for customers requirements.

4.free training and sample provided




Company Information



Henan Wotafune Digital Technology Co.,Ltd is a highly scientific and technical enterprise which integrates research, development, production and sale together and is the first factory engaged in digital foil stamping machine in China since 1997 With 15 years experience in producing digital foil stamping machines,foil heat transfer machines, digital foil printing machine, cutting plotter and high precision die board laser cutting machine in China, Tianrong proudcts(Amydor brand)such as our tr3050 x 50w laser engraving cutting machines have been sold to wordwide such as Thailand,UK,Malaysia,Germany,Italy,Tanzania, Philippines, Brazil, Israell and so on with high quality,competitive price and good service.

Wotafune welcomes all customers around the world to establish great business relationships and share success together.
