S0603D Plastic Gear 270degree 6kg Digital 1/10 RC Car Plane Robot Servo

S0603D plastic gear 270degree 6kg digital 1/10 RC Car Plane Robot Servo

Features:

High presicion plastic gears;

Select torque motor,could compare with import one;

long  life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Specifications Figure:

Specifications:

                    Item No. S0603D

Operating Voltage:      4.8V~6V

Speed:                            0.14 sec/60deg (4.8v)    0.12sec/60deg (6v)

Locked-Rotor Torque:  5.5kg.cm (4.8v)          6.5kg.cm (6v)

Size:                                40mmX20mmX38.5mm

Weight:                           40gram

Motor:                              3 pole Core motor

Gear Train:                     plastic(POM gear)

Ball Bearing:                  2BB

Dead band width:         4usc

Interface:                         (JR)

Wire length:                    30cm

Type:                                Digital,2BB,

Rotation angle:              270degree(PWM500-2500us)

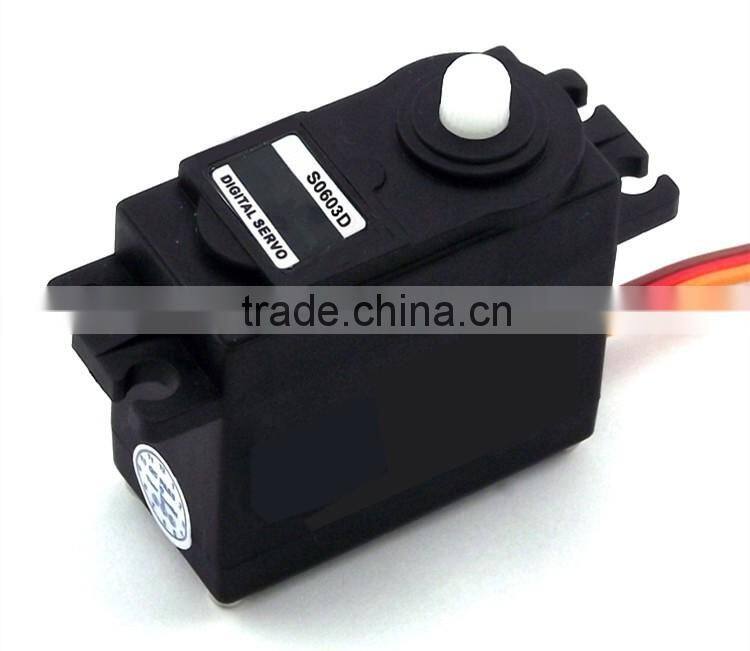

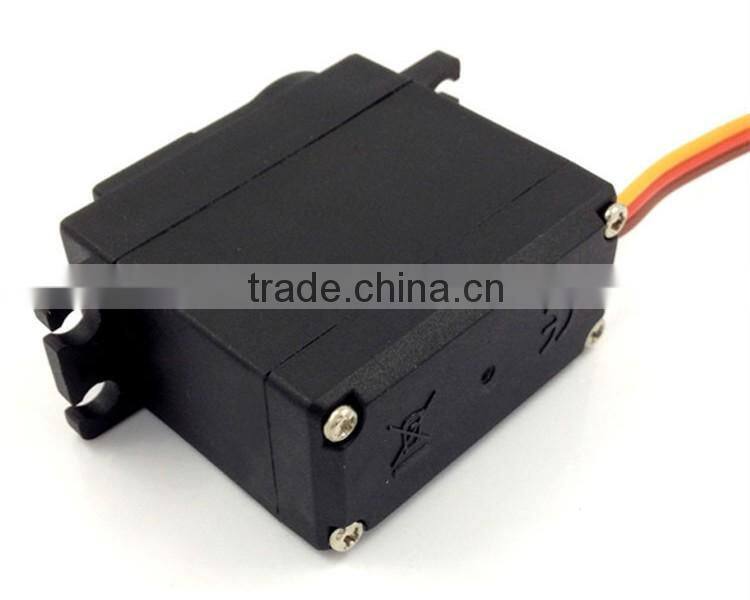

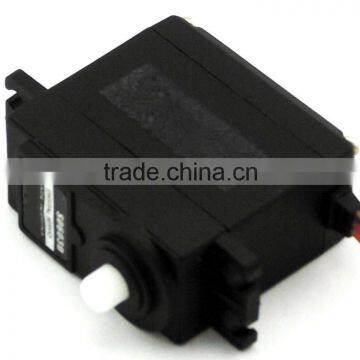

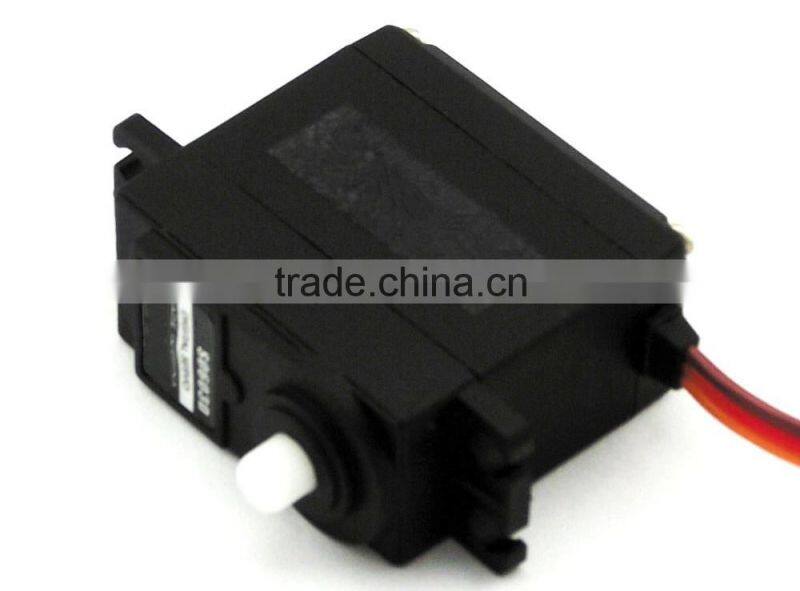

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

     1pcs x S0603D  servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

         1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
         4 x rubber grommets with brass inserts           4 x mounting screws
         1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
     GW: 45 g
