RS0610MD Metal Titanium Alloy Gear 6kg Low Profile 17DOF Humanoid Robot Used Servo

RS0610MD Metal titanium alloy Gear 6kg low profile 17DOF Humanoid robot used servo

Features:

High presicion titanium alloy gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Waterproof

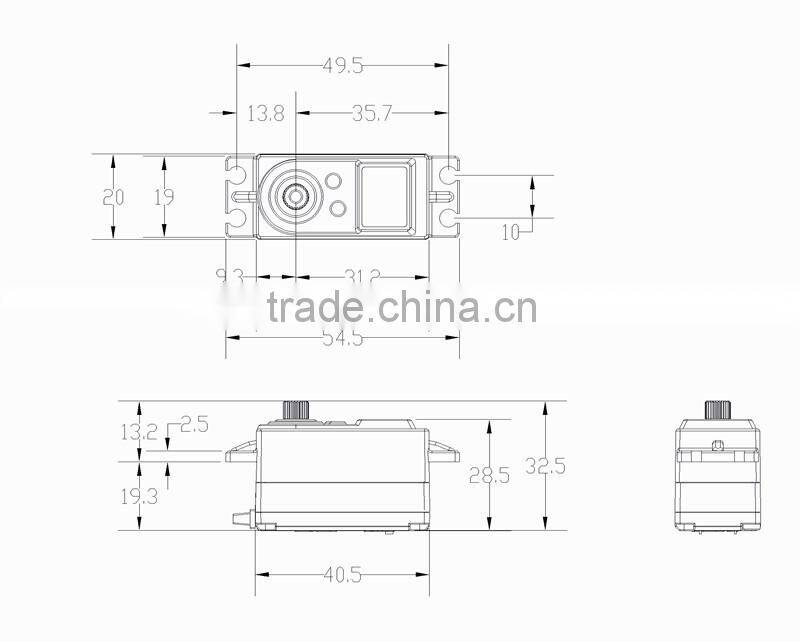

Specifications Figure:

Specifications:

                   Item No. RS0610MD

Operating Voltage:         5.5V~7.4V

Speed:                               0.23 sec/60deg (6v)    0.21sec/60deg (7.4v)

Torque:                             6.5kg.cm (6v)   7.5kg.cm (7.4v)     (Note:need UBEC if use 2S Lipo)

Size:                                  44mmX23mmX26.5mm

Weight:                             51gram

Motor:                               3 pole Core motor

Gear Train:                      Metal(Titanium gear)

Ball Bearing:                   2BB

Dead band width:          2usc

Interface:                          (JR)

Wire length:                    30cm

Type:                                Digital,low profile

Rotation angle:             180degree(PWM500-2500us)

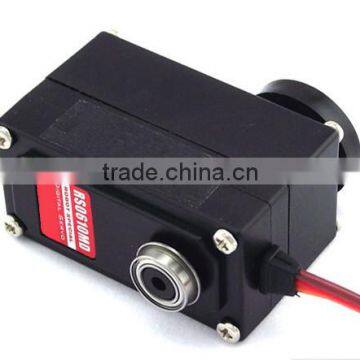

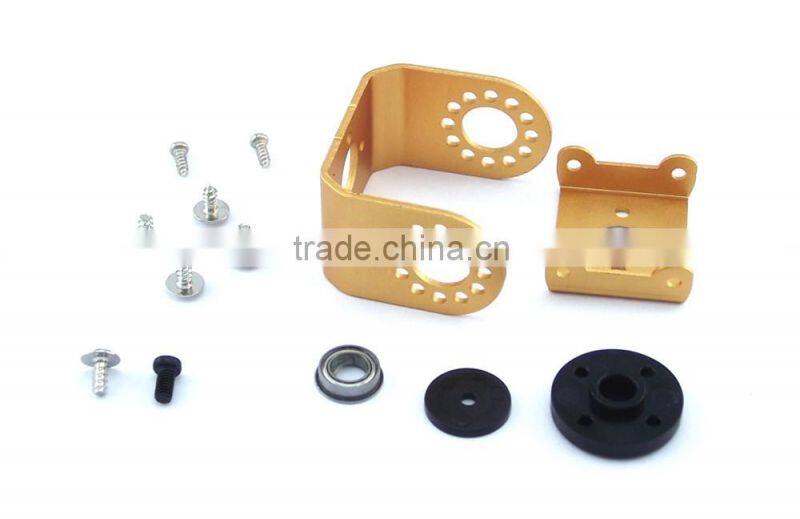

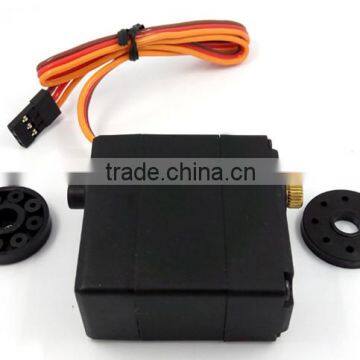

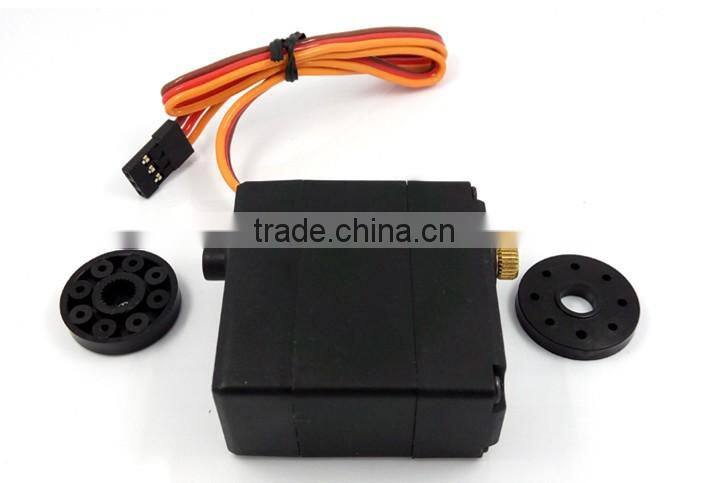

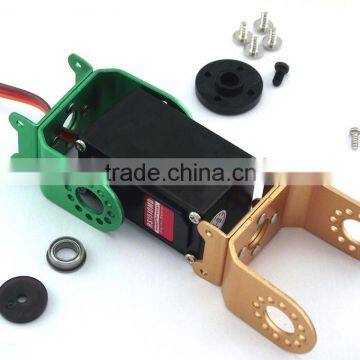

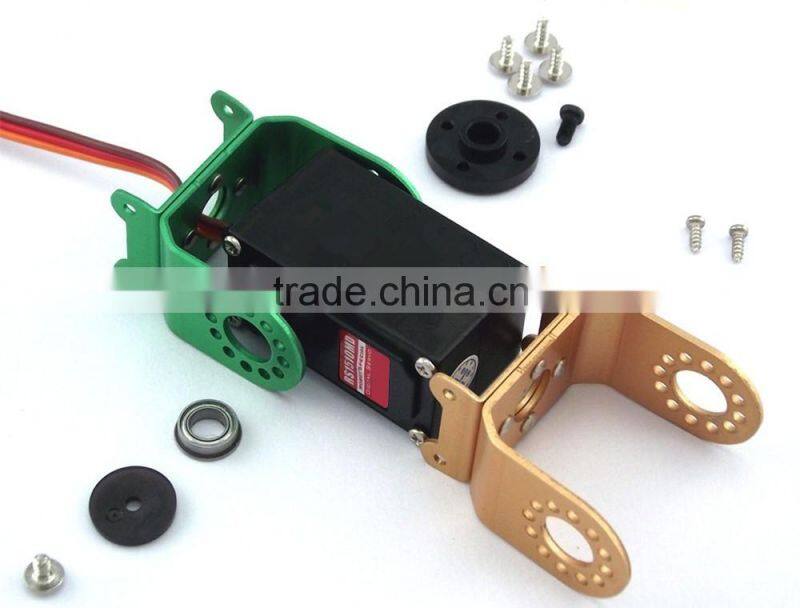

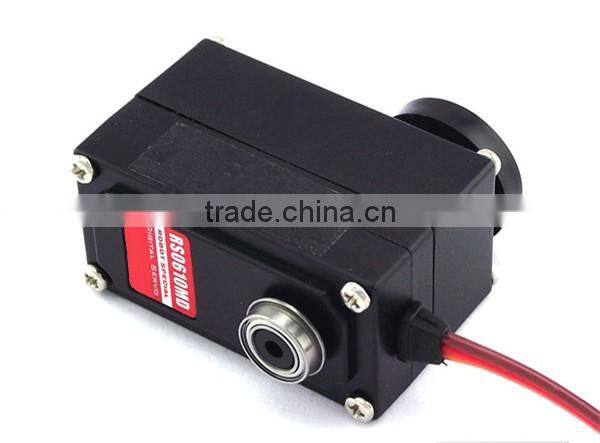

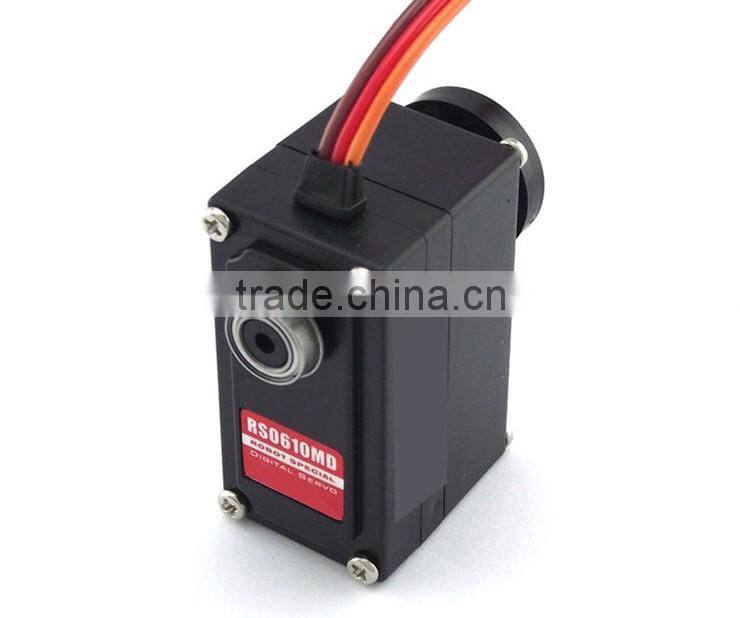

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

     1pcs x RS0610MD  servo

     GW: 70 g

Packing:

Certificate:
