S0300D Plastic Gear 180degree 3kg Digital Servo for 1/10 rc Car Steering,1/10 rc Car Throttle,rc Plane,rc Robot

S0300D plastic gear 180degree 3kg digital servo for 1/10 rc car steering,1/10 rc car throttle,rc plane,rc robot

Features:

High presicion plastic gears;

Select torque motor,could compare with import one;

long  life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Specifications Figure:

Specifications:

                         Item No. S0300D

Operating Voltage:       4.8V~6V

Speed:                             0.13 sec/60deg (4.8v)    0.11sec/60deg (6v)

Torque:                           3kg.cm (4.8v)          3.5kg.cm (6v)

Size:                                40mmX20mmX38.5mm

Weight:                           40gram

Motor:                             3 pole Core motor

Gear Train:                     plastic(POM gear)

Ball Bearing:                 2BB

Dead band width:        4usc

Interface:                        (JR)

Wire length:                  30cm

Type:                              Digital,2BB

Rotation angle:            180degree(PWM1000-2000us)

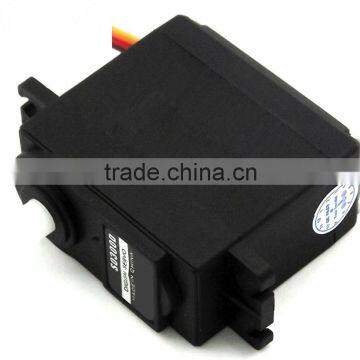

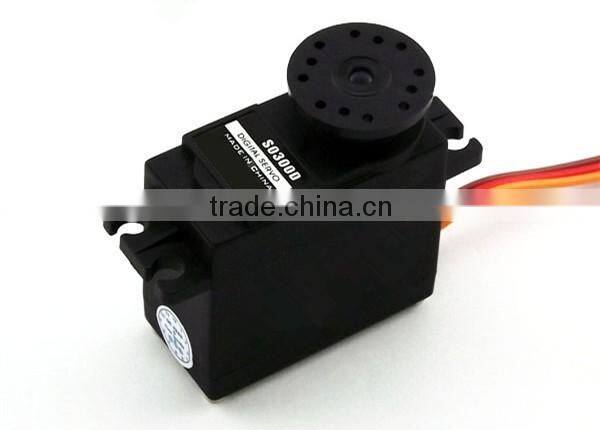

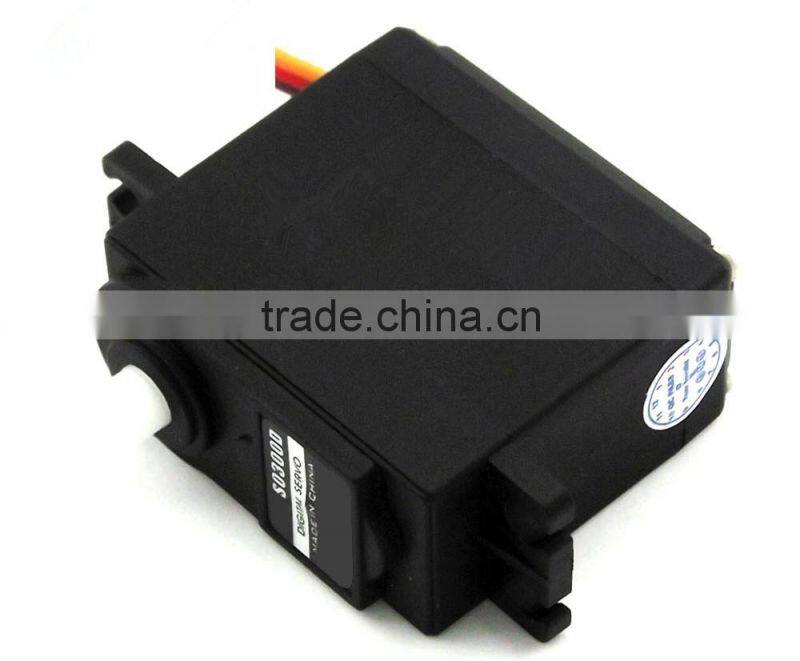

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

 1pcs x S0300D  servo

 Accessaries:servo horns,rubber grommets, eyelets and mounting screws

 1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
 4 x rubber grommets with brass inserts           4 x mounting screws
 1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
 GW: 45 g
