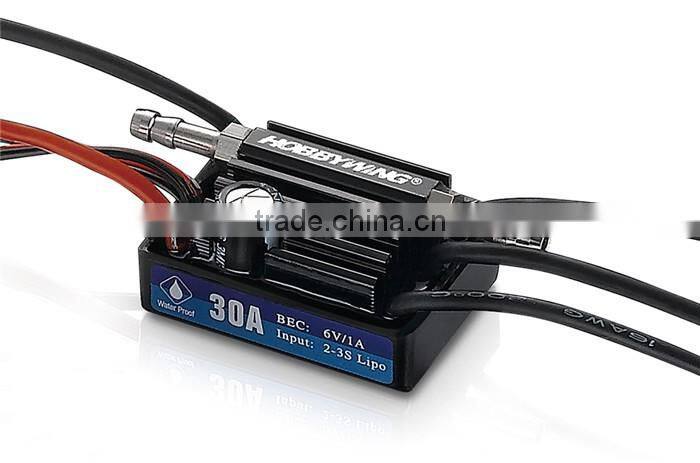

Hobbywing Seaking 30A V3 ESC Water Proof Brushless Speed Controller for Boat
|
Performance & Reliability
Built with high-quality components and coupled with cutting-edge firmware, the Seaking 30A V3 is featured by unmatched performance and reliability.
|
| Efficient Cooling System
The Hobbywing patented heat-conductive copper bar cover on the power board of the Seaking 30A V3 can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum water cooled heat sink housing thus keeping your ESC as cool as possible. |

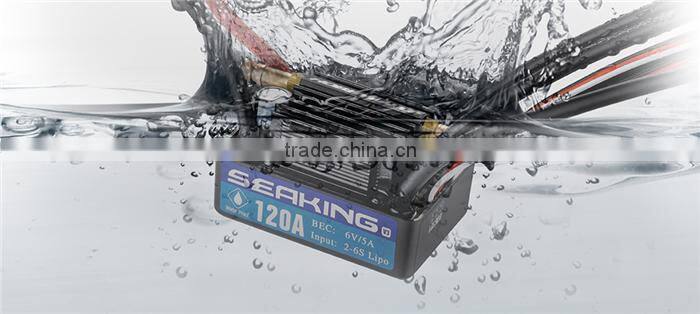

| Waterproof Design
100% waterproof without the need of extra protection. |
| Built-in BEC
The built-in linear mode BEC with output of 1Amp and voltage of 6V make this ESC compatible with high voltage servo. |
| Special Algorithm Design
The special algorithm implemented in the ESC make the acceleration more incredible and sailing more stable. |

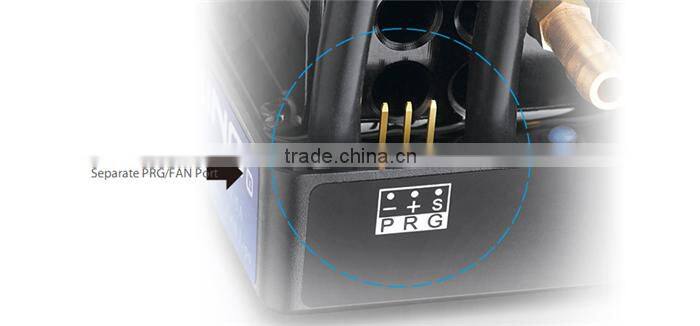

| Separate PRG/FAN Port
The separate PRG/FAN port on the ESC can connect ESC to a program box (via the trio-color programming cable) and start ESC programming. |
Specification:
| Type | Brushed/Brushless | Brushless |
| Waterproof | WP | |
| Specifications | Cont./Peak Current | 30A/180A |
| Input | 2-3S LiPo 5-9 Cells NiMH | |
| BEC Output | Linear Mode:6V/1A | |
| Size & Weight | Size | 54.5x28.3x18.7mm |
| Weight | 41g | |
| I.D./O.D. of the Water Cooling Pipe | Φ2.0/4.0 mm | |
| Wires & Connectors | Input Wires | Red-14AWG-100mm*1 Black-14AWG-100mm*1 |
| Output Wires | Black-16AWG-75mm*3 | |
| Input Connectors | No | |
| Output Connectors | No | |
| (Note: All the wire length above is the original length not the length you see from the outside.) | ||
| ESC Programming via | Transmitter | Supported |
| LED Program Box | Supported | |
| LCD Program Box | Not Supported | |
| WiFi Module | Not Supported | |
| Program Port | Program/Throttle Wire | |
| Firmware | Firmware Upgrade | Not Supported |
| Applications | Boat Length <45cm | |
Installation & Connection

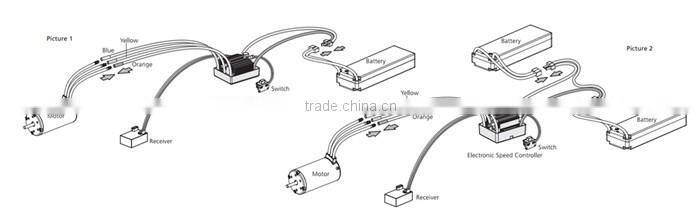

Connect the ESC, motor, receiver, battery and servo according to the wiring diagram below (Picture 1/2). Three wires from the ESC to the motor have no polarity, so you can connect them freely. Please recheck all the connections and ensure they are correctly connected before proceeding to step 2. (And you may find it’s necessary to swap two wires if the motor runs in reverse.)
For safety, please always keep the propeller away from human body or any other objects.Red color input wire is positive pole, Black color input wire is negative pole.2) Picture 2 is for Seaking-120A-V3, Seaking-180A-V3, Seaking-130A-HV-V3(without switch) and other ESCs that may work with two LiPo battery packs; that is the wiring diagram with 2 battery packs.
