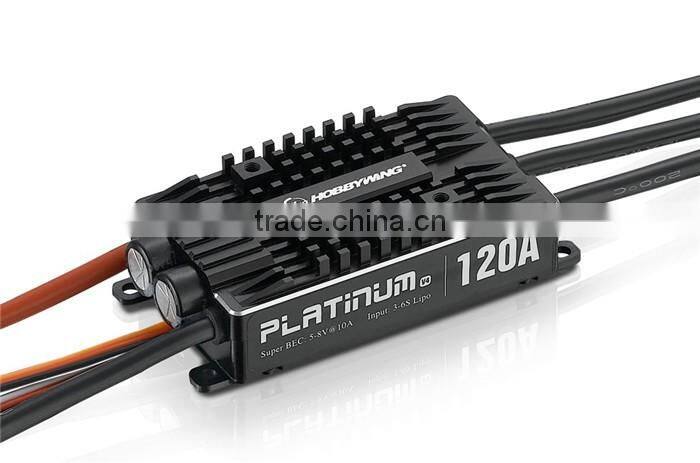

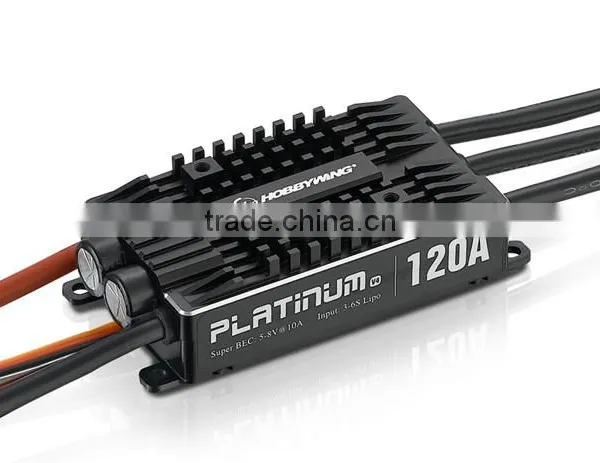

Hobbywing RC Aircraft System Platinum 120A V4 Brushless ESC Excellent Motor Speed Governing

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Shenzhen Port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Vehicles & Remote Control Toys	Power	Battery
Material	Plastic	Plastic Type	ABS
Scale	Other, RC model	Radio Control Style	RC Model
Place of Origin	Guangdong, China	Brand Name	Hobbywing
Model Number	Platinum 120A V4

Product Description

Hobbywing RC Aircraft System Platinum 120A V4 Brushless ESC Excellent Motor Speed Governing

Product Description:

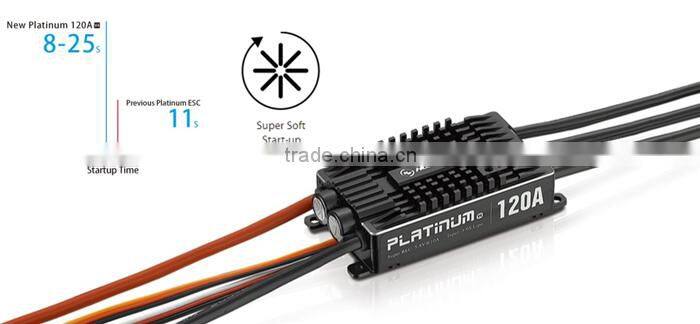

Super Soft Start-up

Platinum V4 serial products allows the motor to start extremely smooth and avoids

tail-drift issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,

this will definitely create a perfect starting point for every flight.

Excellent Motor Speed Governing

High-performance 32-bit processor with a running frequency of 72MHz combined with
advanced algorithm optimizes the speed governing. Together with the adjustable
governor parameters guarantee every pilot a precise control experience.

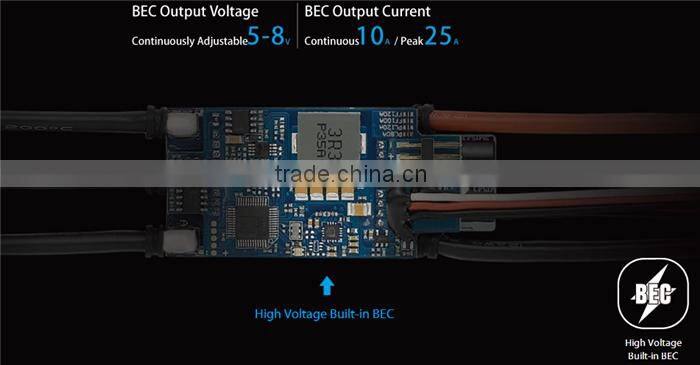

High Voltage Built-in BEC

The built-in switch mode BEC with an adjustable voltage range from 5V to 8V,

a continuous current of over 10A and peak current of 25A can supply

enough power for your HV servos to operate at their peak.

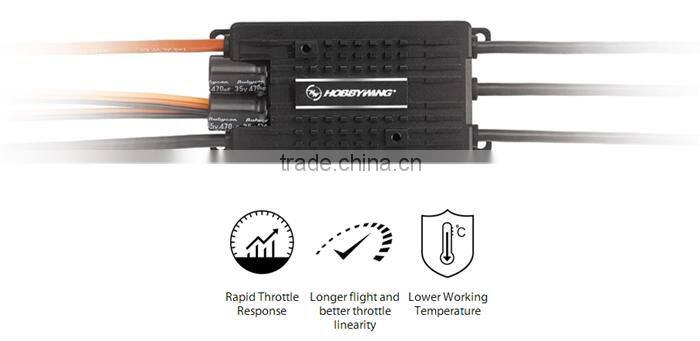

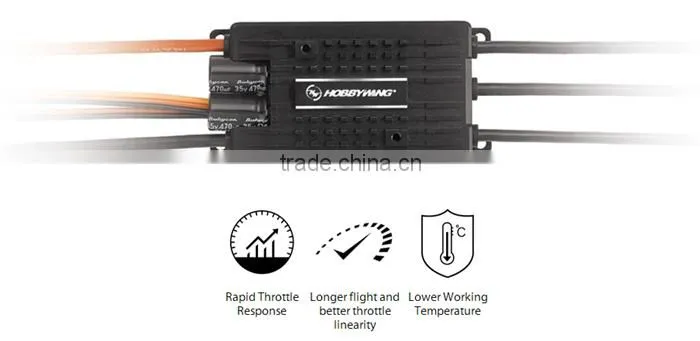

DEO Technology

The DEO (Driving Efficiency Optimization or so-called “Active Freewheeling”)
technology implemented in the ESC has multiple advantages.
• A very Rapid response to throttle change.
• Higher driving efficiency, longer flight time.
• Lower ESC temperature and a much more reliable operation during flight.

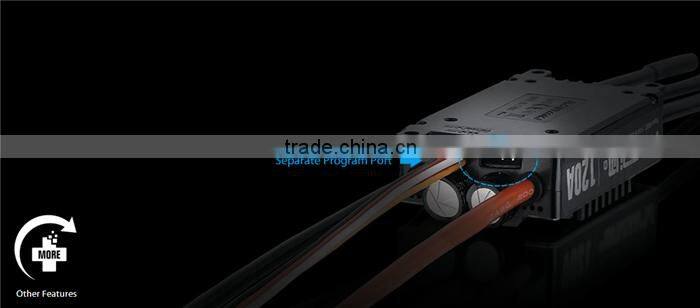

Other Features

A separate program port for connecting programmer on this ESC allows user to
• Program ESC,
• Check flight data include minimum voltage, maximum temperature, standardized RPM and
speed curve (in Heli Governing Store mode) of the flight parameters recorded by the ESC,
• Upgrade ESC firmware with a mutifunction LCD program box or a WiFi Module & our
Apple/Android phone App.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The brake amount is adjustable in
normal brake mode; in proportional brake mode, the brake force will be
automatically selected based on the position of radio throttle stick; in reverse
brake mode, the motor rotation can be changed via a spare transmitter channel.

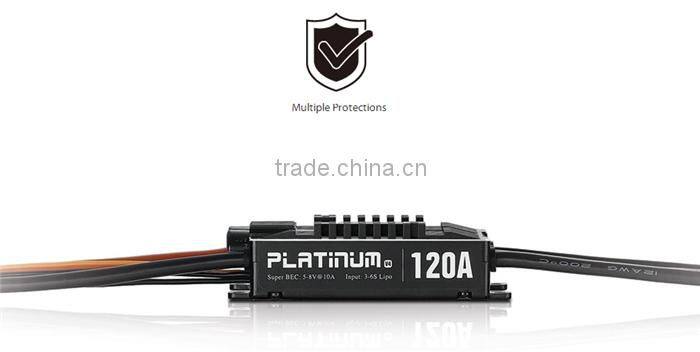

Multiple Protections

Multiple protection features include ESC thermal,

capacitor thermal (HOBBYWING-patented technology),
ESC overload, throttle signal loss(or Fail Safe),

and low voltage cutoff effectively prolongs the service life of the ESC.

Specification:

Type	Brushed/Brushless	Brushless
Type	High Voltage/Regular	Regular
Specifications	Cont./Peak Current	120A/150A
	Input	3-6S LiPo
	BEC Output	Switch Mode:5-8V,10A
Size & Weight	Size	84.3x38.2x20.4mm
Size & Weight	Weight	107g
Wires & Connectors	Input Wires	Red-12AWG-150mm1/Black-12AWG-150mm1
	Output Wires	Black-12AWG-100mm*3
	Input Connectors	No
	Output Connectors	4.0mm Gold Connectors (Female)
	(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programming (via)	Transmitter	Not Supported
	LED Program Card	Not Supported
	LED Program Box	Not Supported
	LCD Program Box	Supported
	WiFi Module	Supported
	Program Port	Separate Program Port
Firmware	Firmware Upgrade	Supported
Applications	500-550 Class Heli (Main Blade: 470-575mm) .70-.90 Class Fixed-wing Airplane 3D, Light Weight FAIF3A EDF (with Diameter≤90mm)
