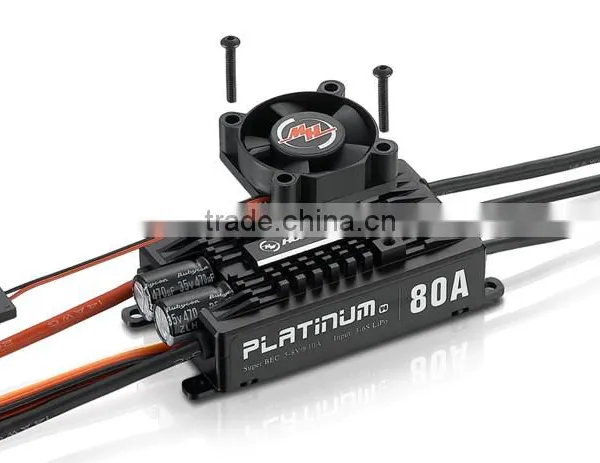

Hobbywing RC Aircraft System Platinum 80A V4 Brushless ESC 3-6S LiPo Super Soft Start-up Perfect Starting Point For Every FlightNegotiableMOQ: 10 Pieces -
Hobbywing RC Aircraft System Platinum 120A V4 Brushless ESC Excellent Motor Speed GoverningNegotiableMOQ: 10 Pieces
-
Hobbywing Platinum HV 130A V4 Brushless ESC 6-14S LiPo High Voltage Built-in BECNegotiableMOQ: 10 Pieces
-
Hobbywing Platinum HV 130A OPTO V4 Brushless ESC 6-14S LiPo Input Voltage Apply To 550-600 Class HelicopterNegotiableMOQ: 10 Pieces
-
Hobbywing 1/10 Car XeRun XR10 PRO 160A ESC 4A BEC Output Competition Brushless Electronic Speed ControllerUS$ 1 - 205MOQ: 10 Pieces

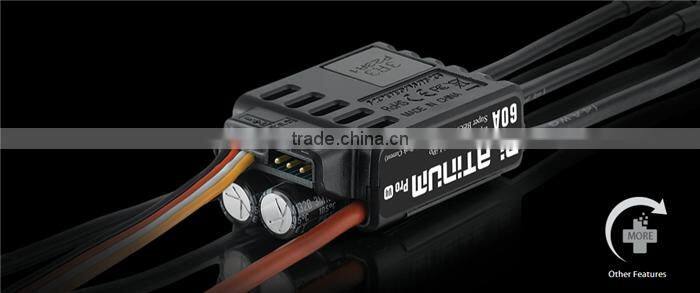

Hobbywing RC Aircraft System Platinum 60A V4 Brushless ESC Higher Driving Efficiency Longer Flight Time Lower ESC Temperature
Excellent Motor Governing Speed
High-performance 32-bit processor with a running frequency of 72MHz combined with
advanced algorithm optimizes the speed governing. Together with
the adjustable governor parameters guarantees every pilot a precise control experience.

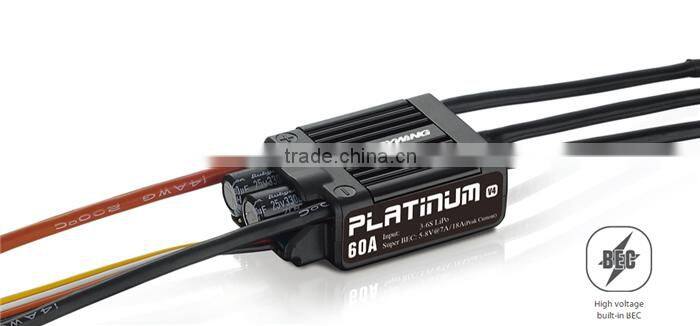

High Voltage Built-in BEC
The built-in switch mode BEC with an adjustable voltage range from 5V to 8V,
a continuous current of over 7A and peak current of 18A can supply enough
power for your servos to operate efficiently.

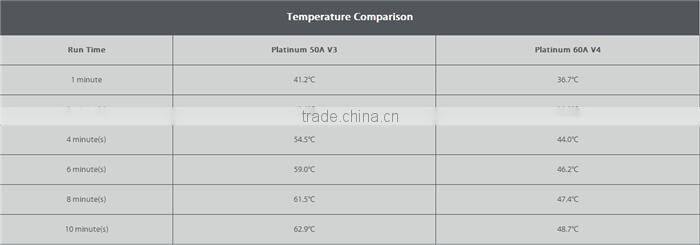

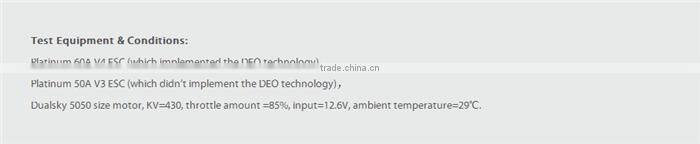

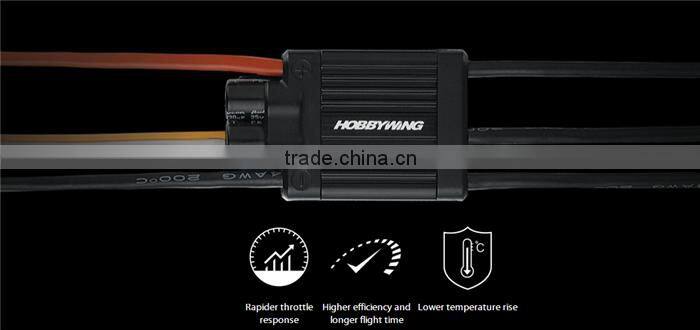

DEO Technology
The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling")
technology implemented in the ESC has multiple advantages.
• Quicker response to the throttle change.
• Higher driving efficiency, longer flight time.
• Lower ESC temperature and a more reliable operation.
Four Brake Modes
This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode;
in proportional brake mode, the brake force will be automatically allocated based on the position of
the radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

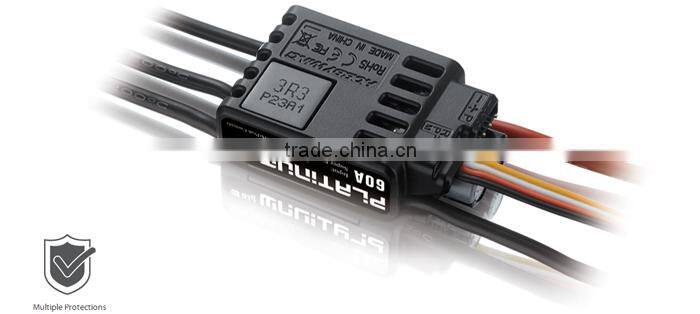

Multiple Protections
Multiple protection features include, ESC thermal, capacitor thermal
(HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe),
and low voltage cutoff effectively prolongs the service life of the ESC.
Other Features
A separate programming port for connecting the programmer on this ESC allows user to
• Program ESC,
• check flight data include minimum voltage, maximum temperature, standardized RPM and
speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
• Upgrade ESC firmware
With a multifunction LCD program box or a Wi-Fi Module & our Apple/Android phone App.
Specification:
| Type | Brushed/Brushless | Brushless |
| High Voltage/Regular | Regular | |
| Specifications | Cont./Peak Current | 60A/80A |
| Input | 3-6S LiPo | |
| BEC Output | Switch Mode:5-8V,10A | |
| Size & Weight | Size | 48.0x30.0x15.5mm |
| Weight | 49g | |
| Wires & Connectors | Input Wires | Red-14AWG-100mm*1/Black-14AWG-100mm*1 |
| Output Wires | Black-14AWG-75mm*3 | |
| Input Connectors | No | |
| Output Connectors | 3.5mm Gold Connectors (Female) | |
| (Note: All the wire length above is the original length not the length you see from the outside.) | ||
| ESC Programming (via) | Transmitter | Not Supported |
| LED Program Card | Not Supported | |
| LED Program Box | Not Supported | |
| LCD Program Box | Supported | |
| WiFi Module | Supported | |
| Program Port | Program/Throttle Wire | |
| Firmware | Firmware Upgrade | Supported |
| Applications | 450-480 Class Heli (Main Blade: 325-360mm) | |
