Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897

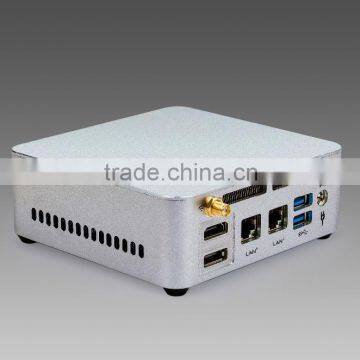

Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897

Shenzhen Yacoo Technology Co., Ltd.
Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897 thumbnail-1
Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897 thumbnail-2
Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897 thumbnail-3
Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897 photo-1
Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897 photo-2
Intel Haswell /Brodwell U-series CPU Mini PC Box PC Nettop HTPC Embedded Barebone System NIS-H897 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Computer
Brand Name:
YACOO
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Computer
Brand Name YACOO
Model Number NIS-H897
Processor CPUIntel® HaswellTM /BrodwellTM U-series CPU (dual core)compatible with I3/I5/I7
Chipset Intel® Haswell
BIOS SPI BIOS, CMOS 480mah
RAM Architecture DDR3 MAX 1666 MT/s
Capacity MAX 16GB
Socket SODIMM
Display Graphic Controller Intel® HD4000 Graphic media accelerator
LVDS Dual channel 24 bit LVDS
Max. resolution: 1920 * 1200
HDMI HDMI 1.4
Max. resolution: 4096 * 2304 24Hz
Display Port DISPLAY PORT++ 1.2
Max. resolution: 3200 * 2000 60Hz
Display HDMI+DP+LVDS, Synchronous or asynchronous display
LAN Controller LAN 1: RTL8111E GbE
LAN 2: RTL8111E GbE
Audio Controller Realtek HD ALC662 audio decoder(Right&left Channel + Mic)
Super I/O Controller NT6102
H/W Monitor Watch Dog Timer0-255 sec., provide watch dog routine
Thermal DC +12V Fan, support SMART FAN and system temp. detection
TPM Controller N/A
I/O USB 6*USB 3.0 PORT
Serial Port 2*TTL COM
Expansion BusMini-PCIe1* full size Mini-PCIe(support PCIe & USB devices)(support M-SATA for storage only)
USIM1 * standard 3G UIM socket
Storage Laptop SATA 7+15Pin, adopt onboard heightened connecto
Power Power Type DC9-19V extended voltage dynamic input,support reverse power protection
Power Consumption Typical Power: 15W
IndicatorF_PANELHDD LED/POWER LED/RESET/POWER BOTTOM
CIRCIR function
EnvironmentOperating Temp. -0°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Storage Humidity 0% ~ 90% relative humidity, non-condensing
FormfactorDimensions 100mm * 100mm
Weight0.45KG
Certificate FCC, CE, RoHS
