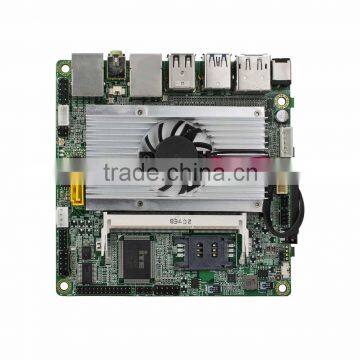

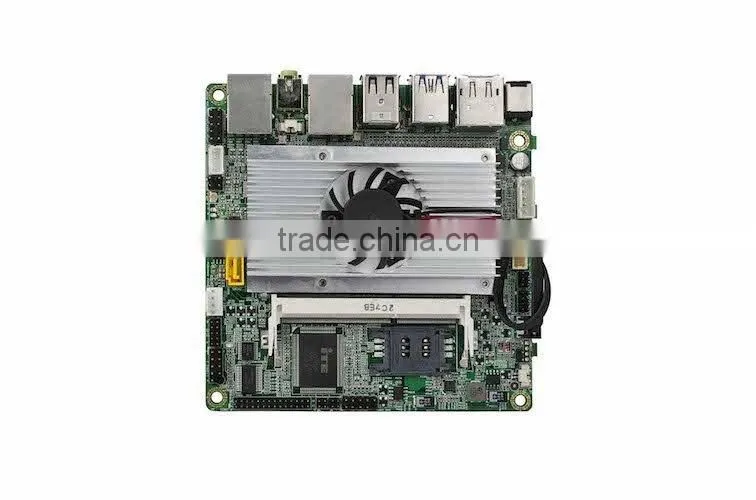

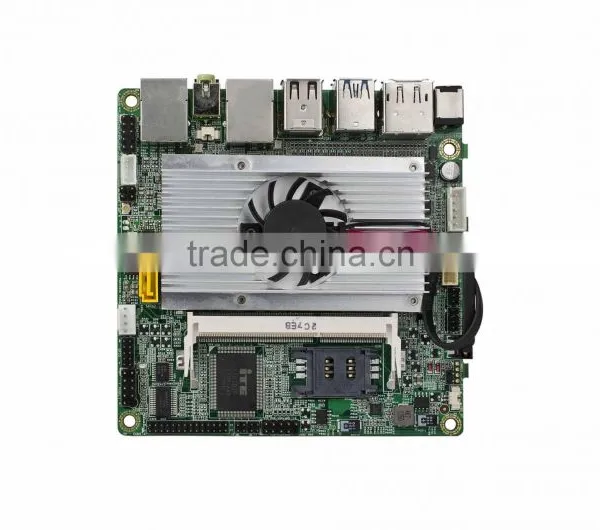

AMD Quad Core APU Motherboard Nano-ITX Motherboard DS-2019

Shenzhen Yacoo Technology Co., Ltd.
AMD Quad Core APU Motherboard Nano-ITX Motherboard DS-2019 thumbnail-1
AMD Quad Core APU Motherboard Nano-ITX Motherboard DS-2019 thumbnail-2
AMD Quad Core APU Motherboard Nano-ITX Motherboard DS-2019 photo-1
AMD Quad Core APU Motherboard Nano-ITX Motherboard DS-2019 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
Yacoo
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name Yacoo
Model Number DS-2019
ProcessorCPU AMD®KabiniG-SOC Series APU 1.5-2.0GHz Dual/Quad core
CPU PackageOnboard
ChipsetAMD® KabiniG-SOC Serial APU
BIOS AMI EFI BIOS
MemoryArchitectureDual Channel DDR3 1600MHz FSB
CapacityMax. 8GB
Socket1*204pin SO-DIMM socket
DisplayGraphic ControllerAMD® RadeonTM HD8 series, support DirectX® 11
LVDS Support dual channel 18/24 bit
 Max. resolution: 1920 * 1200 (support 1080P)
VGAN/A
 N/A
HDMISupport HDMI 1.3A type, 19 pin
 Max. resolution: 1920 * 1200
Display PortDISPLAY PORT 1.2
 Max. resolution: 2560 * 1600
Dual DisplayHDMI+LVDS, DisplayPort+HDMI
LANControllerLAN1: Realtek 8111E GbE Lan
 LAN2: Realtek 8111E GbE Lan
WIFI USB Signal RTL8188 WIFI module, support 802.11N/G/B
AudioControllerRealtek ALC662 HDaudio decoder (left&right channel + Mic)
Max. amplifier output: 2W
Super I/OControllerITE IT8782F, Support System temperature detection
H/W MonitorWatch Dog TimerProgrammable 1 ~ 255 sec./min.; Support System Reset
Fan1 * 3 Pin DC Fan control
TPMControllerN/A
I/OUSB 6 * USB (4 * USB 2.0 /1.1 compatible + 2 * USB3.0)
Serial Port3 * RS-232, 1 * RS232/485 option
Parallel Port8 Bit programmer, 3.3V@24mA
PS/2N/A
GPION/A
IEEE 1394N/A
ExpansionPCIeX16 N/A
PCIeX4N/A
PCIeX1N/A
PCIN/A
Mini-PCIe1 * Mini-PCIe socket, support 3G or WIFI
USIM1* standard SIM socket
StorageSATA 1 * SATAIII, Max. transmission rate: 3Gb/s
M-SATAHalf size Mini-PCIe, Support SSD
IDE N/A
eSATA N/A
CF CardN/A
PowerPower TypeDC-in 12V @ 3A
 Power ConsumptionTypical Power:15W
EnvironmentOperating Temp.- 0°C ~ 50°C
Storage Temp.-40°C~85°C
Operating Humidity0% ~ 90% relative humidity, non-condensing
Storage Humidity0% ~ 90% relative humidity, non-condensing
Form Factor Dimensions120 mm * 120 mm
 Weight0.208Kg
Regulatory ComplianceFCC, CE, RoHS compliant





AMD Quad core APU Motherboard Nano-ITX Motherboard DS-2019
