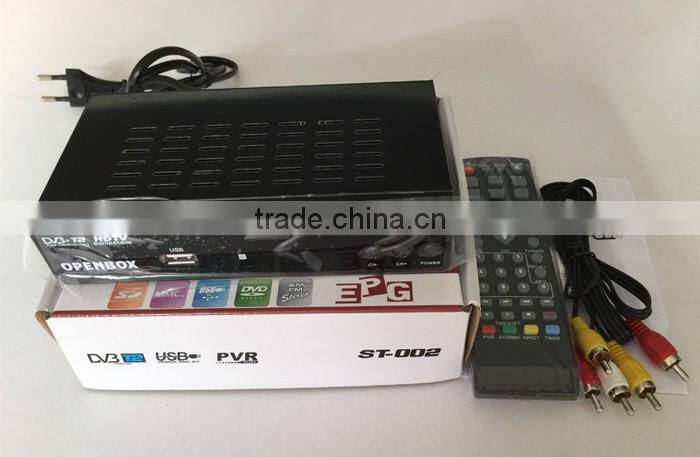

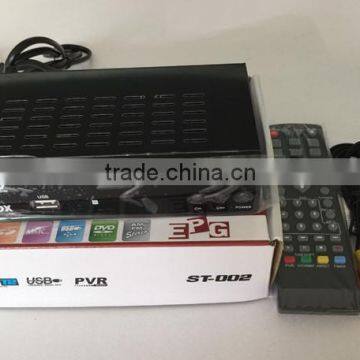

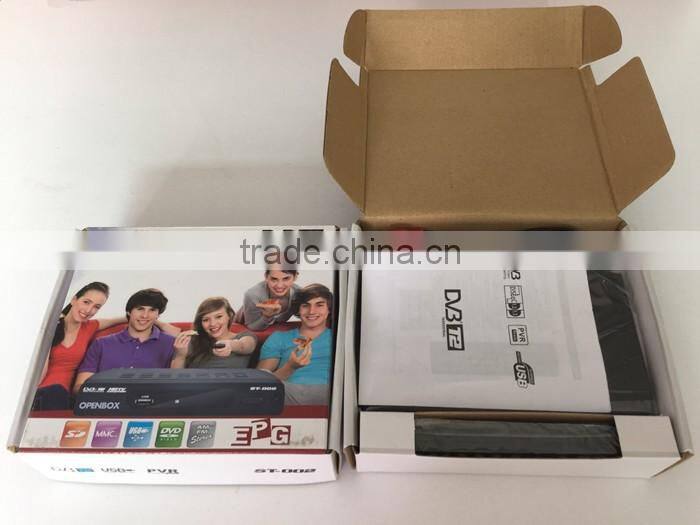

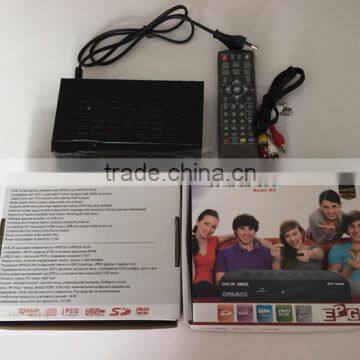

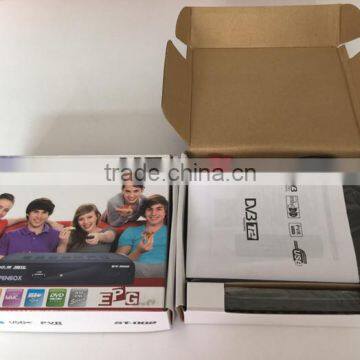

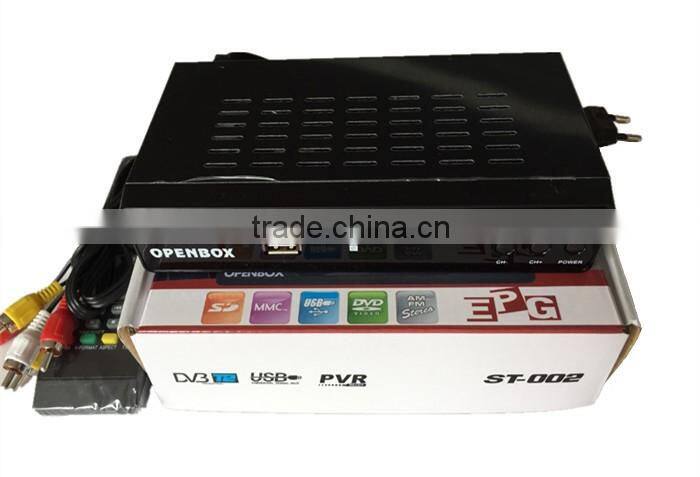

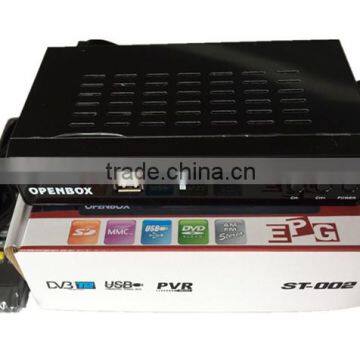

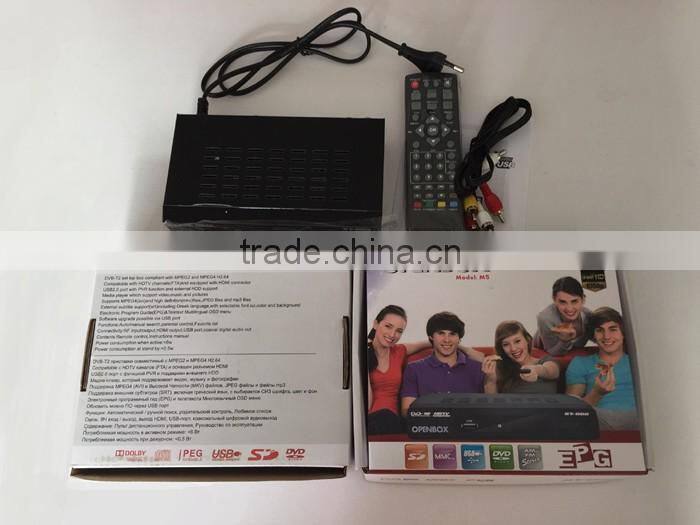

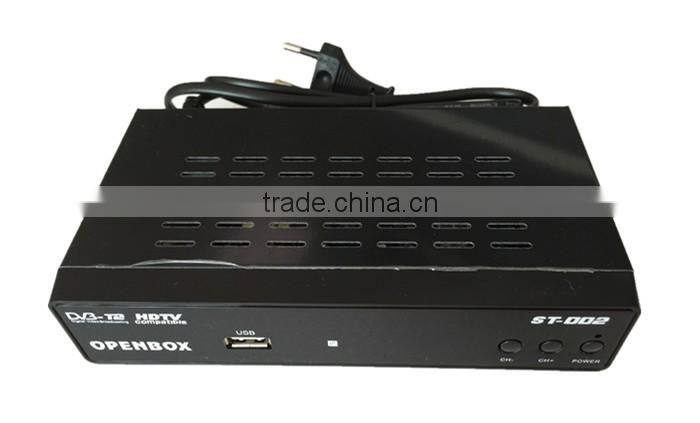

Ground Digital TV Set Top Box DVB-T2 Dual Display for HD and SD Output TV Receiver For Central Asia and Eastern Europe

Ground Digital TV Set Top Box DVB-T2 Dual Display for HD and SD output TV Receiver For Central Asia and Eastern Europe

OEM &ODM  Order are warm welcomed !

Features:

• Dual Display for HD and SD output
• Multiple output Resolution modes:1080P,1080I,720p,576p,576i
• Dolby R Digital 5.1 Channel Surround Sound

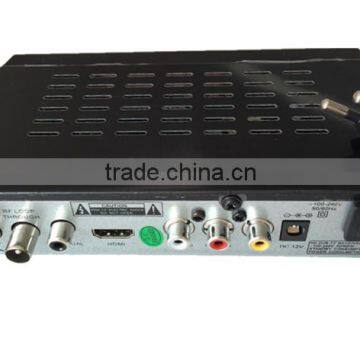

• Videooutput selections: DVI, RGB(D-SUB), Component(RCA,YpbPr), S-Video, Composite(RCA)
• 4:3/16:9 Pictures
• Logical and Easy-to-Use Graphical User’s Interface(GUI)
• 7-days Electronic Program Guide(EPG)
• Automatic Channel Search Favorite Channel Editing
• Teletext/Closed Caption
• Parental Controls
• Coaxial/Optical Digital Audio Output
• USB port supports(Optional)
• Low power consumption
• Time-Zone and daylight-saving time options

Specification:

 High Frequency Tuner

• Input Frequency Range: 174~230, 470 ~~ 862MHz (VHF&UHF)
• Bandwidth: 7 or 8MHz
• Input Signal Level:-75~-20dBm
• RF Input Connector: IEC169-2, Female
• Input impedance: 75Ω

Demodulation Mode

• Waveform: COFDM(CodeOrthogonal Frequency Division Multiplexing)
• Demodulation: QPSK, QAM16, QAM64
• Transmission Mode: 2K,8K
• Guard interval: 1/4,1/8,1/16,1/32
• Code rate: 1/2,2/3,3/4,5/6,7/8

Video, Audio decoding

• Video decoding: MPEG2(MP@ML), MPEG 4, AVC/H. 264 @ L3 Compatible
• Video resolution: PAL 720×576 @ 25 Hz; NTSC 720X480 @ 30 Hz:
• Audio decoding: MPEG-1, 2 Layer 1 & 2
• Audio Track: Stereo, Left, Right

USB 2.0

• Supported file format: MP3, JPEG, OGG or BMP
• Output voltage of USB port: 5V, 1000 mA (Max.)

Power Specification

• Rated voltage:~ 230V,50Hz
• Range of rated voltage:~ 165-265V,50Hz
• Rated consumption: < 12 W
• Standby consumption:    ≤ 1 W

Operation condition

• Temperature: 0-40℃
• Humidity:<95%

Others:

• Net Weight:<1.0 Kg
• Packed measurements: 168 mm×110 mm×38mm
