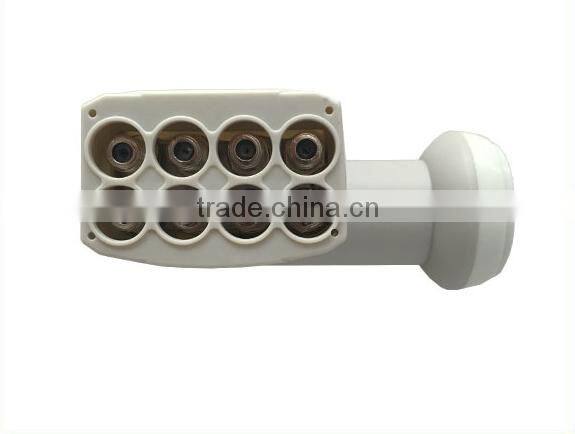

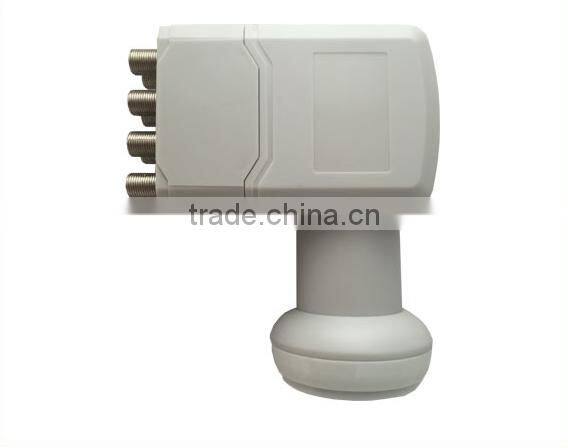

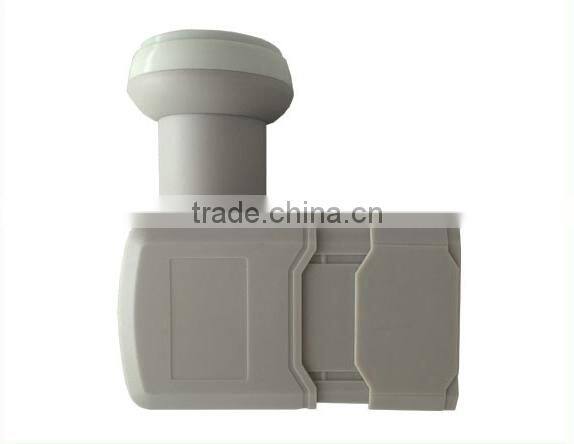

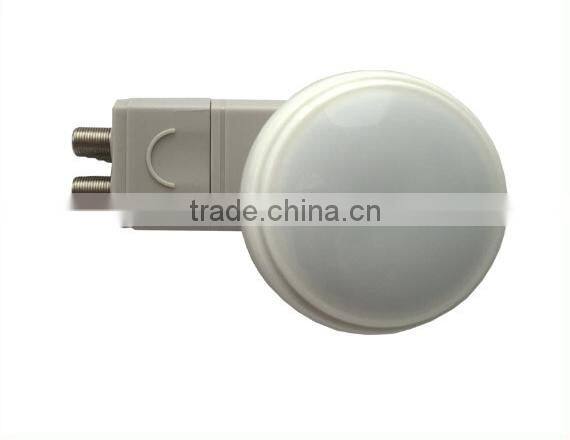

8 output lnb manufacturers of amplifier for tv
Input Frequency Range | LOW Band:10.7~11.7GHz |
| High Band:11.7~12.75GHz |
Output Frequency Range | Low Band: 950 - 2050MHz |
| High Band: 1100 - 2150MHz |
Input VSWR | 2.5:1 |
Output VSWR | 2.5:1 |
L.O. Frequency | Low Band 9.75GHz |
| High Band 10.6GHz |
L.O. Stability | ±2MHz @ (-40c~70c) |
L.O. Phase Noise | -70dBc/Hz (1KHz Offset) |
| -90dBc/Hz (10KHz Offset) |
| -110dBc/Hz (100KHz Offset) |
Conversion Gain | 60dB (TYP) |
Gain Flatness | ±0.5dB/6MHz; ±2.5dB/IN BAND |
Noise Figure | ±0.3dB (Typ) |
Image Rejection | 50dB(Typ) |
Output Power | +5dB (Min) (at 1dB gain compression) |
Cross Polarization Discrimination | 23dB(Min) |
DC SUPPLY VOLTAGE | 11~14.5V (V),15.5~22V (H) |
SUPPLY CURRENT | 130mA (MAX) |
LOW/HIGH BAND SWITCHING | Low Band: 0Hz HIGH BAND: 22KHz±4KHz |
Output Connector | 75Ω "F" type female |
RELATIVE HUMIDITY | 0%~95% |
Operating Temperature | -30 °C to +70 °C |
30 pcs in one carton
0.038 cbm for one carton
20GP container--28 cbm---737 cartons
40GP container--58 cbm---1527 cartons
40HQ container--68 cbm---1790 cartons
we have professional designers,engineers and high-efficient production lines.
we can provide you before services:
1.our designers will give you unique,eyes-catched gift box designs to choose
2.our engineers will always be strongest promist to our lnbs
3.our labors is hard-working and careful,promise your order finished in time with good quality
