Help CenterJR-CGF40-40-12 Water Filling Machine
Related Products
Specifications
1.JR-CGF series2. 3-in-1 unit combines rinsing,filling and capping
3. full automation
4.suitable for non-carbonated drinks.

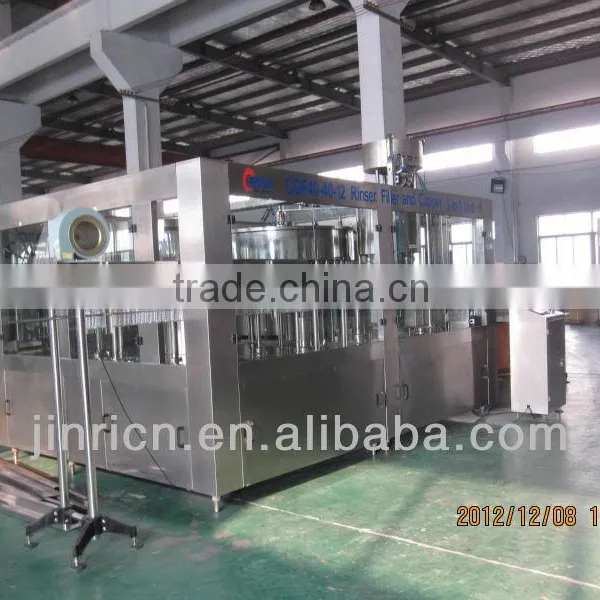

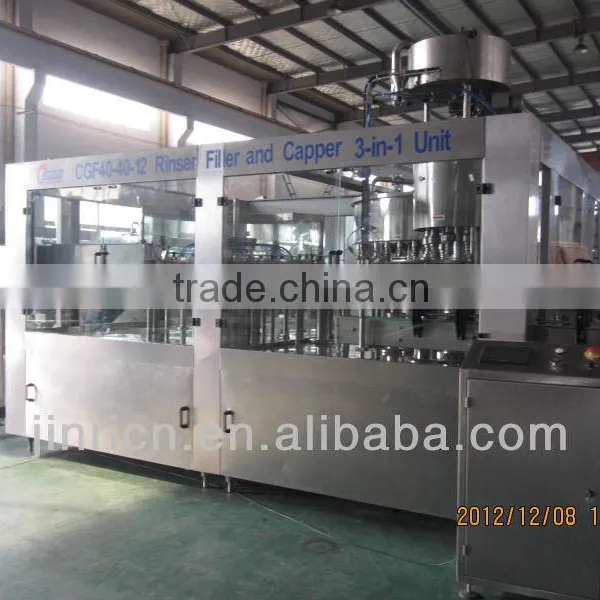

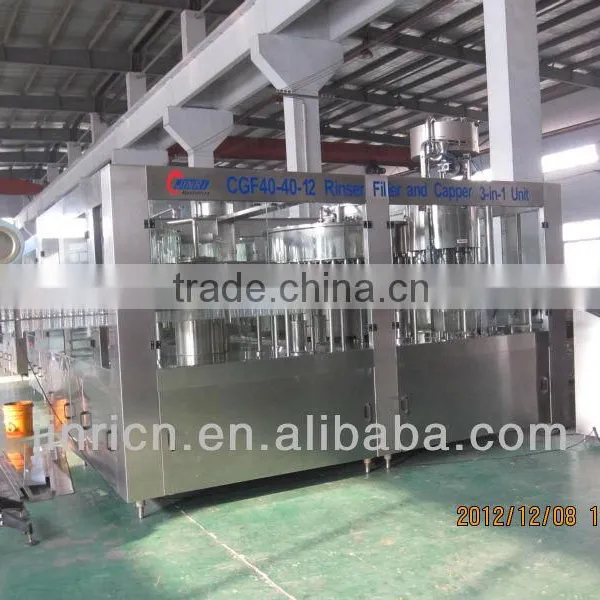

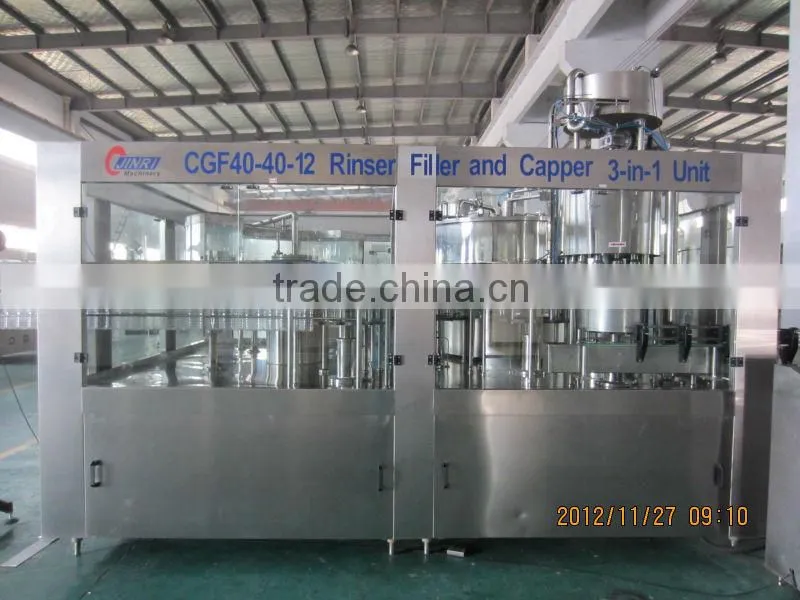

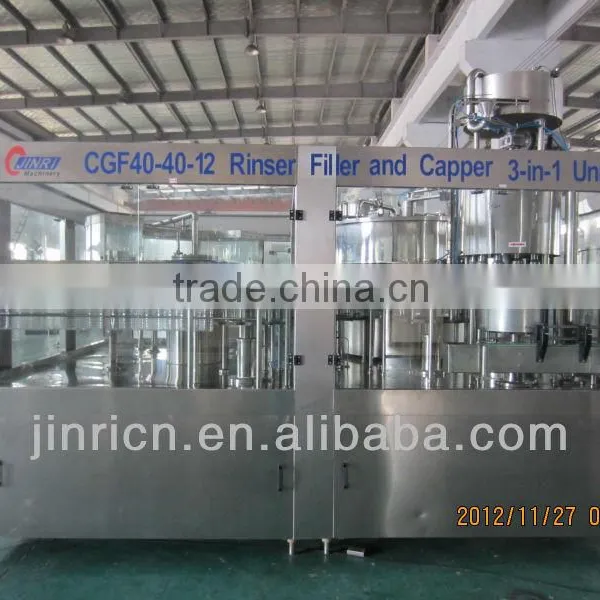

CGF40-40-12 Water filling machine
It is applicable for round and abnormity PET mineral water pure water and juice, etc, and normal temperature filling.
Range of bottle capacity:500-2000ml (the bottle mouth must be same)
Range of bottle diameter:φ50—φ90mm
Range of bottle height: 140--330mm
Inner diameter of the bottleneck:φ20--φ30mm
1.1 Variety and specification:
C ---- Washing Machine
G ---- Filling Machine
F ---- Capping Machine
CGF40-40-12
1.2 Equipment composition and introduction of structure
Composition——(washing)
——(filling)
——(capping)
——(Air driving)
Body machine——(electric)
——(electric box)
——(working platform)
——(main transmission)
——(Chain box and entering and exiting arc board)
——(frame)
1.3 Technique characteristics:
Valve quantities of filling: 40 heads
Heads of capping: 12 heads
Heads of washing: 40heads
Output:12000-16000B/H for 500ml
1.4 Input Power:
Main power: 7.5KW
Hopper power: 0.18KW
Working Voltage AC: 380V
Controlling Voltage DC: 24V
1.5 Water Consumption: (aseptic water) ≈ 9m3/h
Water Pressure:0.2-0.4 Mpa
1.6 Dimensions: LxWxH3250×2500×2700mm
Weight of equipments≈6500Kg
Main configuration:
1.Sensor:Mitsubishi/Omron(Japan)
2.PLC:Mitsubishi/Omron(Japan)
3.AC Contactor:Mitsubishi(Japan)
4.Transformer:Delixi
5.Proximity Switch:Delixi
6.Pneumatic Components:Taiwan Airtac
7.Touch Screen:Mitsubishi
8.Reducer:Shanghai
9.Breaker:Delixi
Carbonated drink filling machine
Product Images

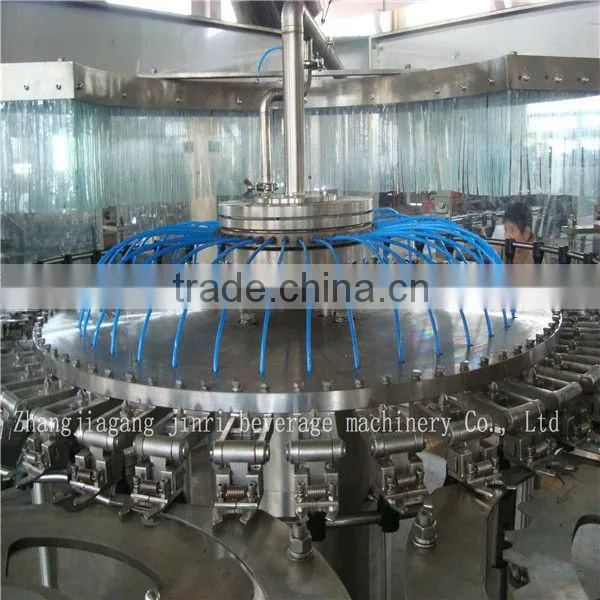

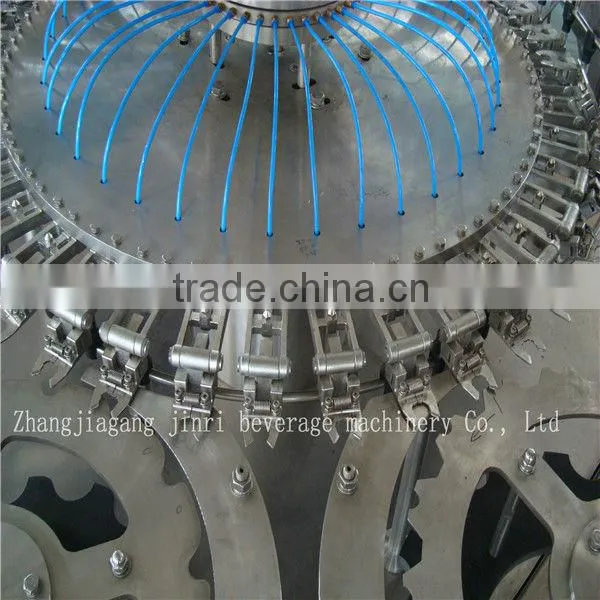

Washing parts

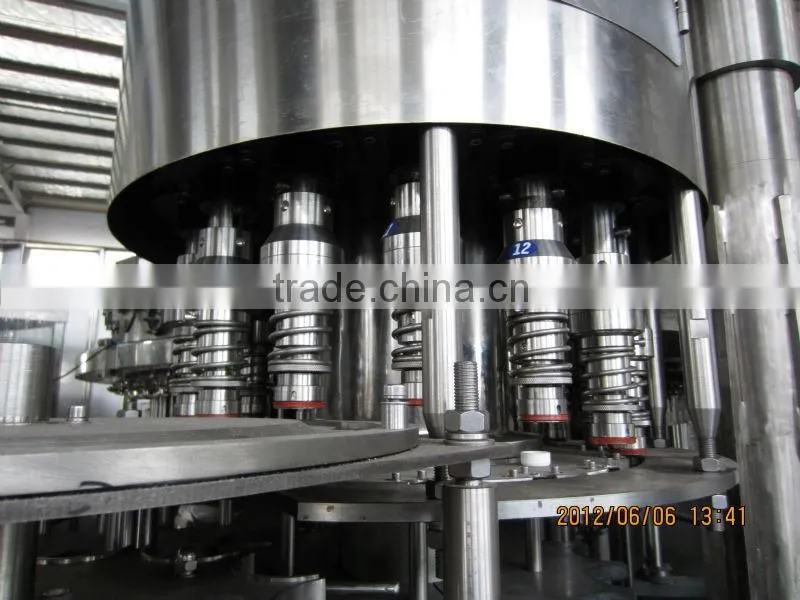

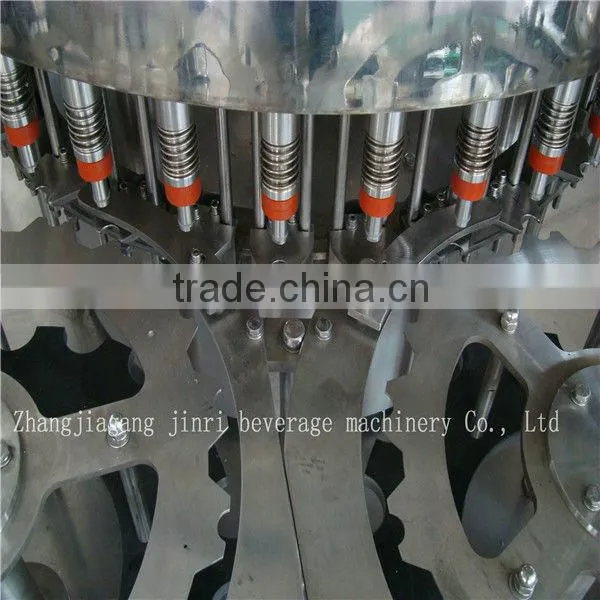

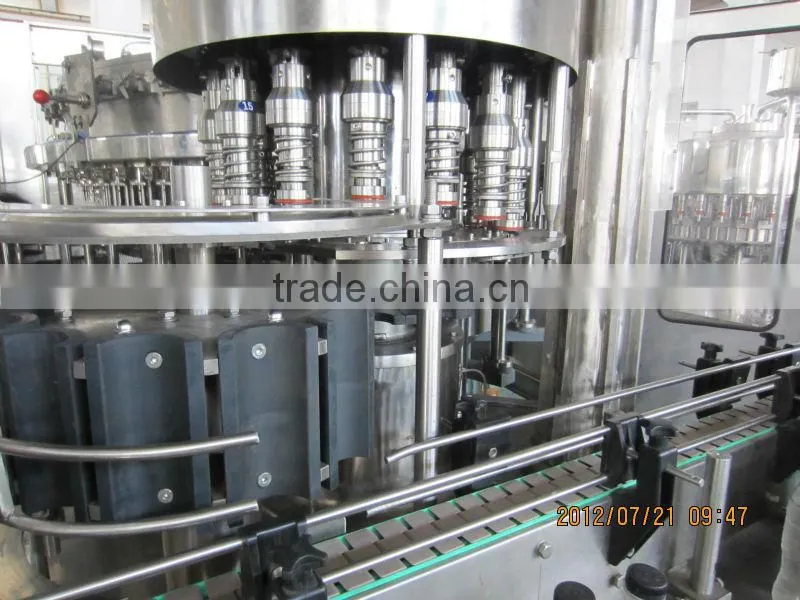

Filling parts
Capping head

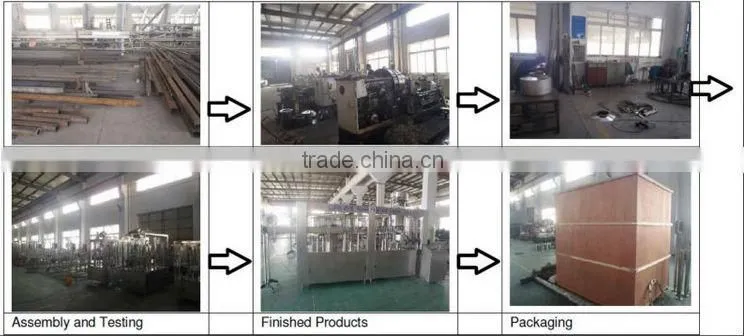

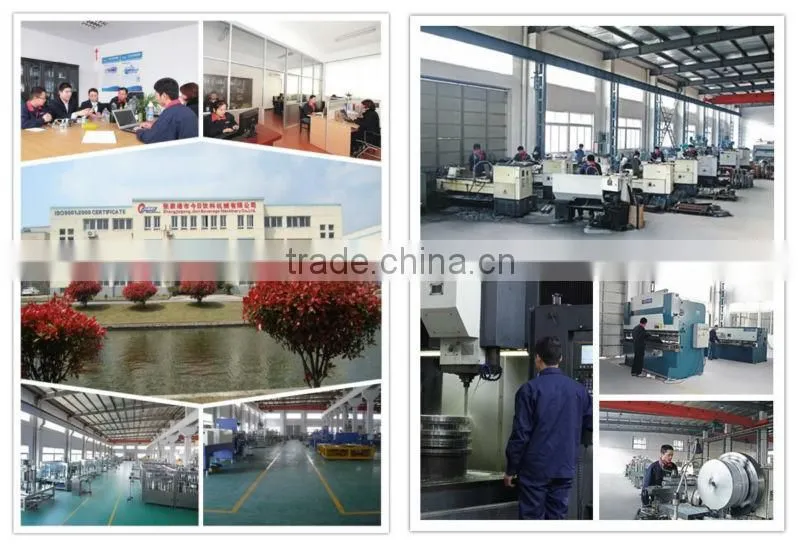

Factory
Certification
Working
Delivery
Collaboration client
