Help CenterPET Bottle Water Filling Machinery
Related Products
Specifications
1 highly automatic2 washer, filler and capper in one monobloc
3 material: SUS304

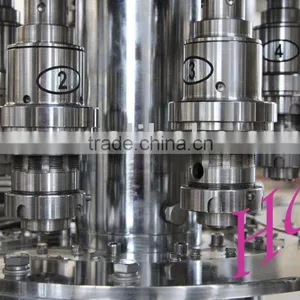

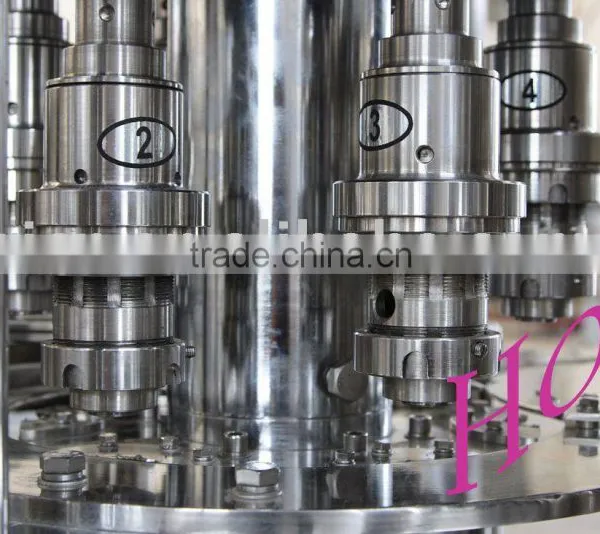

PET bottle water filling machinery
JR-CGF Non-Carbonated Filling machine
JR-CGF series 3-in-1-unit combines rinsing, filling and capping with complete automation, suitable for non-carbonated drinks, such as, pure water and mineral water. The height of conveyer is adjustable, and the whole process is set up with alarm device in case the bottle is jammed, lacking, cap missing and over loading. With complete system highly automatic, mechanically sound, and very easy to operate, it meets the food hygiene standards with optional capacity from 2000BPH to 36000 BPH.
Main Technical Parameters
Model |
CGF14/12/4 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/8 |
CGF40/40/12 |
CGF60/60/15 |
CGF72/72/18 |
CGF80/80/18 |
Washing heads |
14 |
18 |
24 |
32 |
40 |
60 |
72 |
80 |
Filling heads |
12 |
18 |
24 |
32 |
40 |
60 |
72 |
80 |
Capping heads |
4 |
6 |
8 |
8 |
12 |
15 |
18 |
18 |
Capacity (BPH) |
3500 |
8000 |
10000 |
15000 |
18000 |
28000 |
35000 |
40000 |
Power(kw) |
2.0 |
2.2 |
2.2 |
3.0 |
7.5 |
11.0 |
15.0 |
19.0 |
Dimension (mm) |
2000×1800×2200 |
2500×1800×2800 |
3400×2600×2800 |
3600×2800×3000 |
4500×3300×2750 |
5300×4000×2800 |
6500×4000×2800 |
6800×6640×2750 |
Weight(kg) |
3000 |
3500 |
4500 |
5000 |
6000 |
8000 |
8000 |
8000 |
PET bottle water filling machinery
