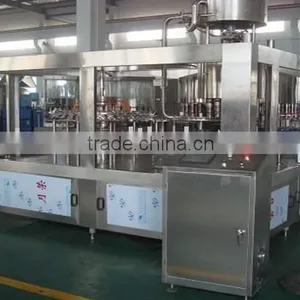

Water bottling machine
1) We use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process od bottle-size-changing
2) Neck-hanging technology is applied in bottle transportation.Instead of traditional starwheel,we use neck-hanging gripper to make bottle-size-changing easy,without equipment height adjustment,only arch board and starwheel need to be changed
3) Specially-designed rinser which are made of stainless steel are firm and durable,with no contact to screw part of the bottle to prevent second pollution
4) Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss
5) Splint of starwheel uses twist descending way to simplify the process of bottle-size-changing
6) Used for the production of mineral water and purified water
Technical parameters
Washing head:24
Filling head:24
Capping head:8
Capacity:8000-10000b/h
Applicable bottle diameter:D=50-92mm
Bottle height:H=150-320mm
Main motor power:4.0kw
Hopper motor power:0.18kw
Conveying motor:0.75kw
Working voltage:AC 380V
Jetting pump power:0.37kw
Controlling voltage:DC 24v
Vortex pump power:0.75kw
Filling pump power:0.75kw
Water consumption:2.5m³/h
Water pressure:0.4Mpa
External dimension:2800*2100*2350mm
Weight:4.2T
Electrical components
PLC Mitsubishi japan
Frequency inverter Mitsubishi japan
Touch screen Weinview taiwan
Transformer,breaker DELIXI china
AC contactor Schneider france
Proximity switch,photoelectrical switch Omron japan
