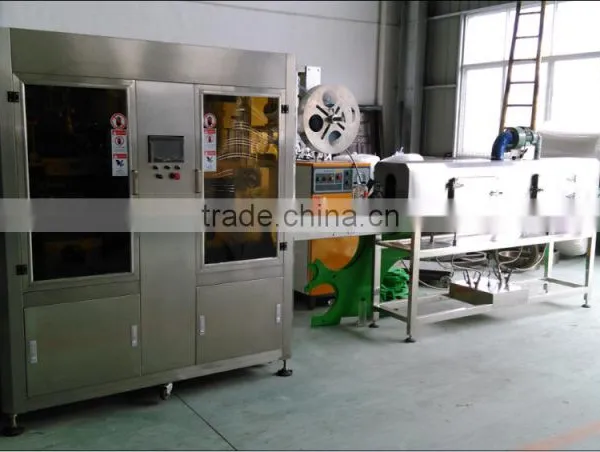

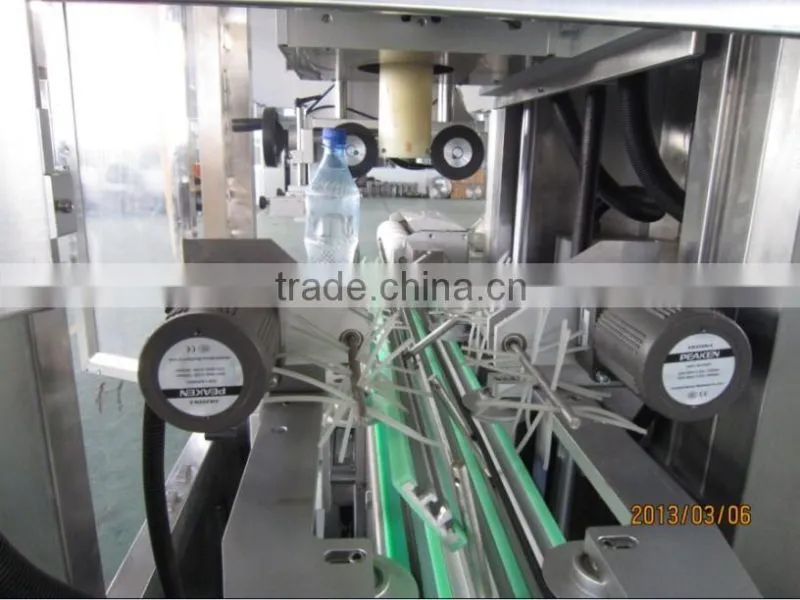

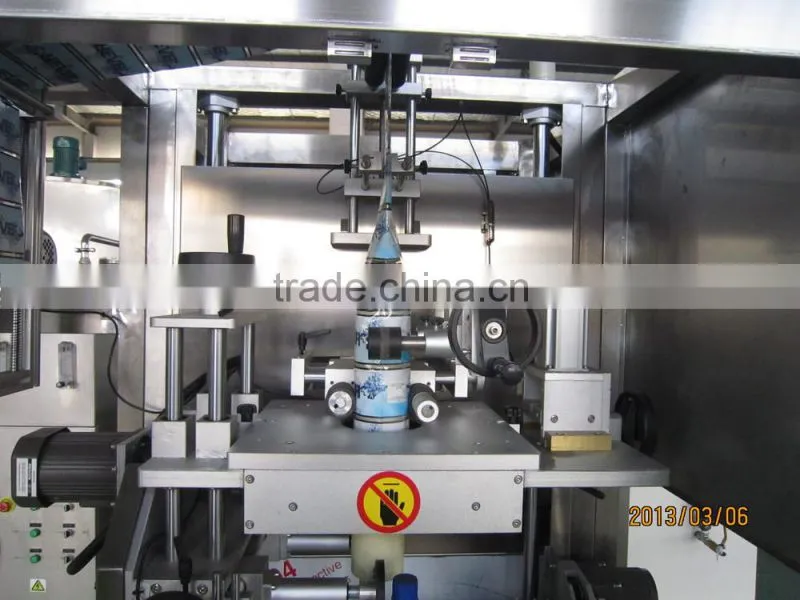

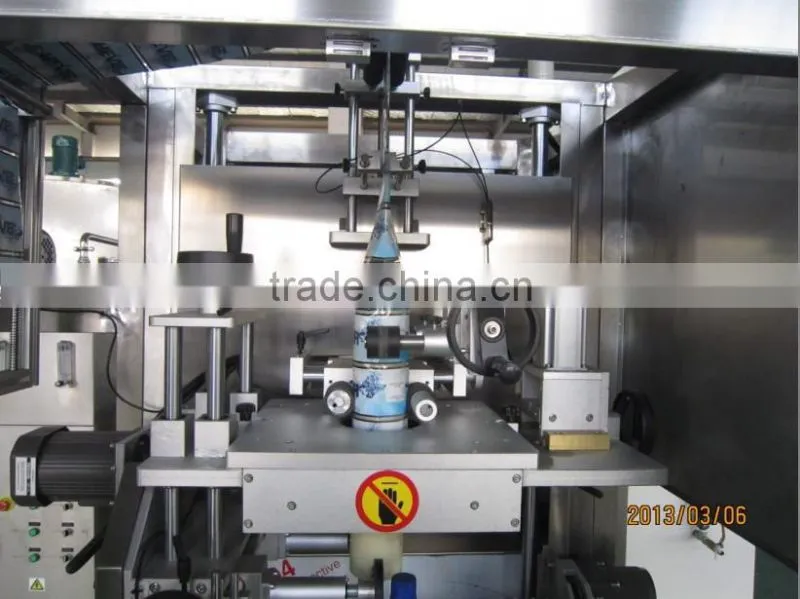

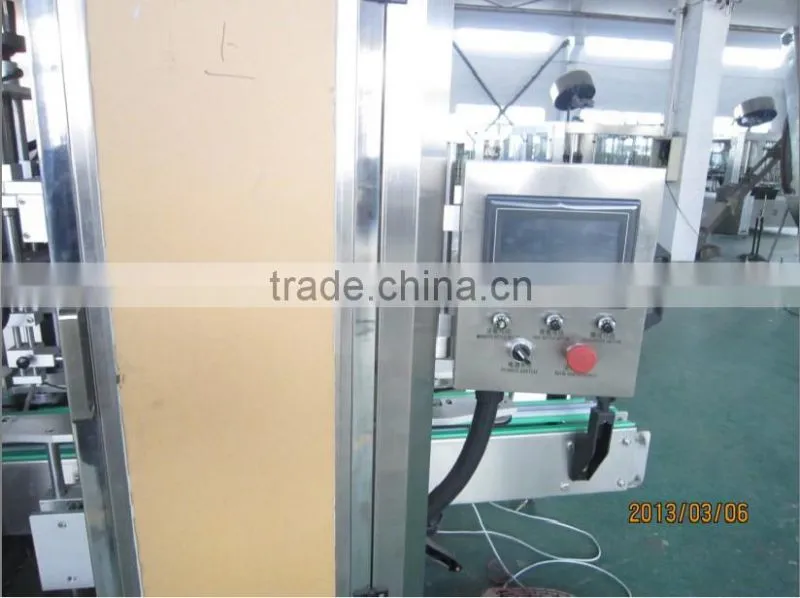

Help CenterPVC Label Shrinking Machine for Bottle Body and Cap
Related Products
-
Double Head PVC Label Shrinking MachineUS$ 15,000 - 150,000MOQ: 1 Set -
PVC Bottle Sleeve Label MachineUS$ 1,000 - 40,000MOQ: 1 Piece
-
Automatic Bottle Shrink Sleeve Label MachineUS$ 1,000 - 55,000MOQ: 1 Piece
-
Bottle Shrink Sleeve Labeling Machine Price in ChinaUS$ 1,000 - 85,000MOQ: 1 Piece
-
Automatic PVC/PET Bottle Shrink Sleeve Inserting MachineUS$ 1,000 - 55,000MOQ: 1 Piece
Specifications
Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.
Label shrinking machine
No. |
Item |
Model |
Qty |
Brand |
Origin |
1 |
PLC |
FPX-C60T |
1 |
Panasonic |
Japan |
2 |
Touch Screen |
MT506-MV |
1 |
WEINVIEW |
Taiwan |
3 |
High-speed Optical Fiber Sensor |
FX-301 |
2 |
SUNX |
Japan |
4 |
Photoelectric Sensor |
CX-421 |
2 |
SUNX |
Japan |
5 |
Photoelectric Sensor |
CX-422 |
2 |
SUNX |
Japan |
6 |
Photoelectric Sensor |
PM-L44 |
4 |
SUNX |
Japan |
7 |
Label Infeeding Servo Motor |
MHMD042P1U(400W) |
2 |
Panasonic |
Japan |
8 |
Label Infeeding Servo Drive |
MBDDT2210003(400W) |
2 |
Panasonic |
Japan |
9 |
Cutting Head Servo Motor |
MHMD042P1U(400W) |
2 |
Panasonic |
Japan |
10 |
Cutting Head Servo Drive |
MBDDT2210003(400W) |
2 |
Panasonic |
Japan |
11 |
Bottle Discharge AC Contactor |
5IK90GN-YF-5GN7.5K |
2 |
TDG |
Taiwan |
12 |
Bottle Discharge Variable-frequency Drive |
BFV00022DK |
2 |
Panasonic |
Japan |
13 |
Bottle Conveyor AC Contactor |
5IK90GN-YFT-5GN15K |
1 |
TDG |
Taiwan |
14 |
Bottle Contactor Variable-frequency Drive |
BFV00022DK |
1 |
Panasonic |
Japan |
15 |
Conveyor Motor |
RV50-20-0.75KW |
1 |
WANSHIN |
Taiwan |
16 |
Conveyor Variable-frequency Drive |
BFV00072GK |
1 |
Panasonic |
Japan |
17 |
Label Feeder AC Contactor |
RV50-15K-180 |
2 |
WANSHIN |
Taiwan |
18 |
Label Feeder Variable-frequency Drive |
BFV00022DK |
2 |
Panasonic |
Japan |
19 |
Framework Lifting AC Contactor |
51K90GU-CF-5GU30KB |
1 |
TDG |
Taiwan |
20 |
Under-brush AC Contactor |
51K120A-CFT |
2 |
TDG |
Taiwan |
21 |
Positioning Brush AC Contactor |
4IK25GN-CF-4GN3K |
2 |
TDG |
Taiwan |
22 |
Draught Fan Motor |
YL8022 |
1 |
WANSHIN |
Taiwan |
Technical Parameter
Import Power |
5.5 Kw |
Import Voltage |
3, 380/220 VAC |
Production Capacity |
150 bottles/miute |
Dimension of Host Machine (mm) |
L3200 * W1200 * H2070 mm |
Applicable Diameter Container (mm) |
φ28 mm ~ φ120 mm |
Applicable Label Length (mm) |
30~250 mm |
Applicable Thickness Label (mm) |
0.03~0.13 mm |
Applicable Inner Diameter of Paper Tube |
5''~10'' |
WELCOME TO JINRI BEVERAG MACHINERY!
For any further information about this machine,please contact us without hesitation,we will reply to you asap.Thank you and welcome to JINRI .
