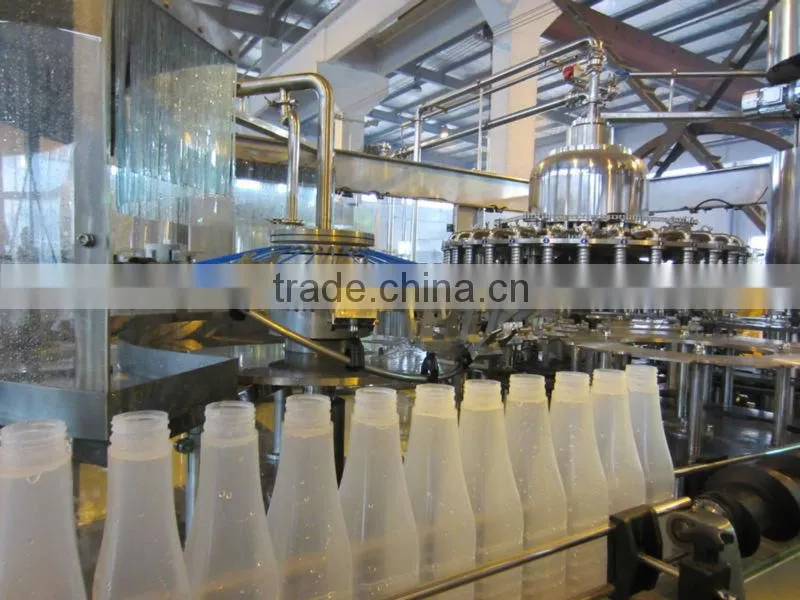

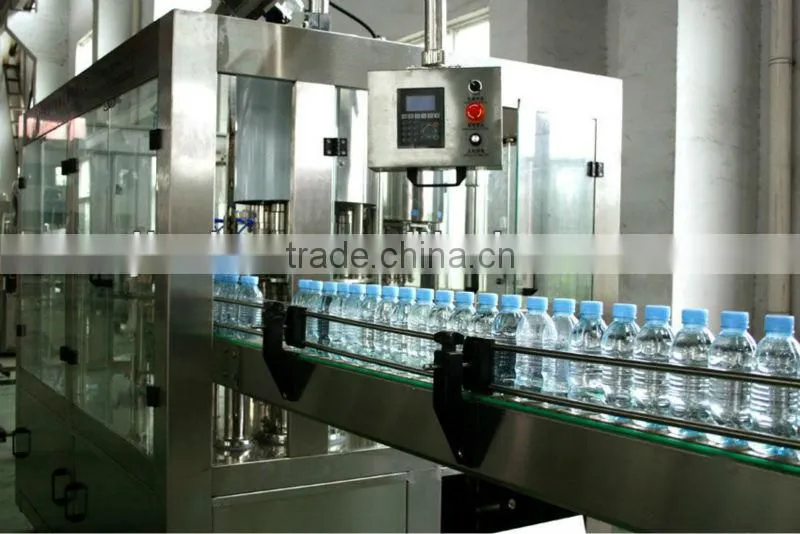

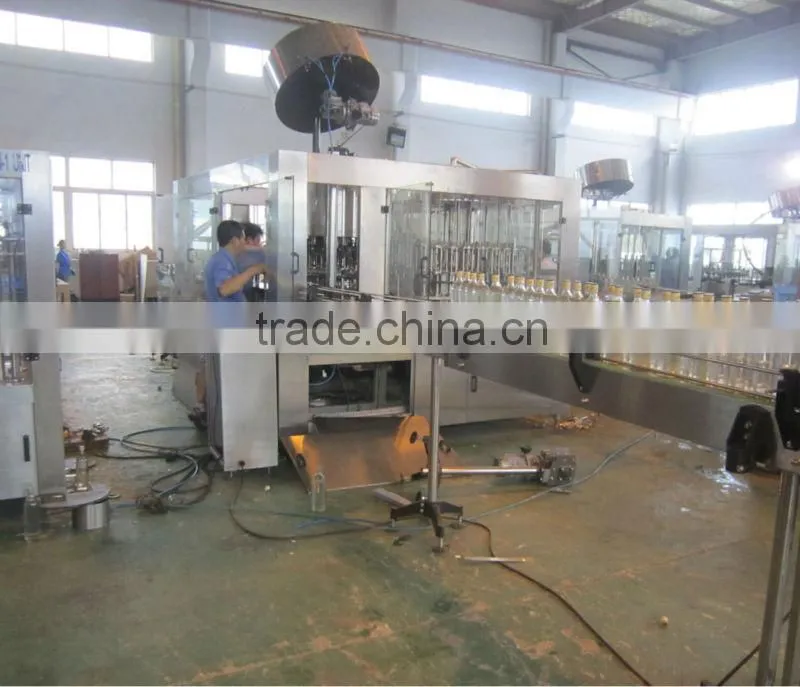

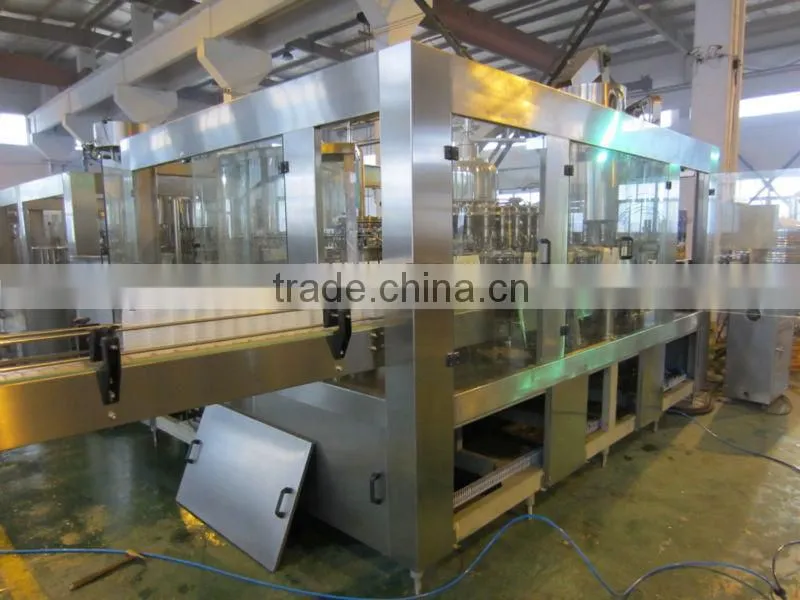

juice machine
1) The machine has compact structure, complete control system, easy operation and high degree of automation
3) The parts contacting media are made from 316L and have no process blind angles to enable easy cleaning
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred

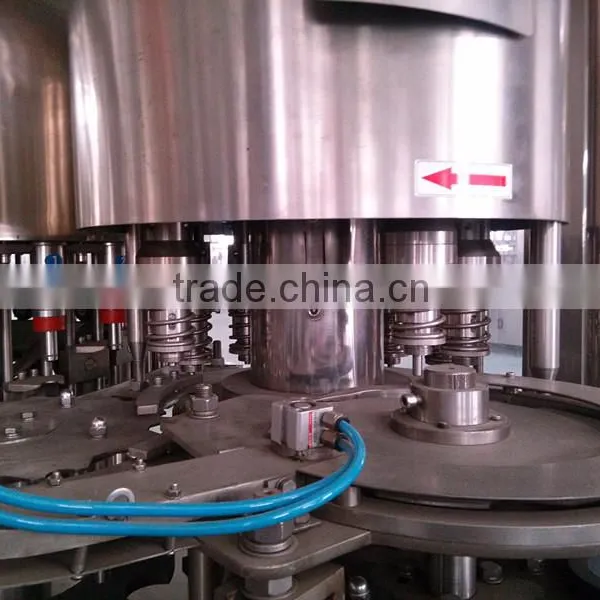

5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting
Products Introduction:
Juice Bottling Machine / Pure Water Production Line-user:

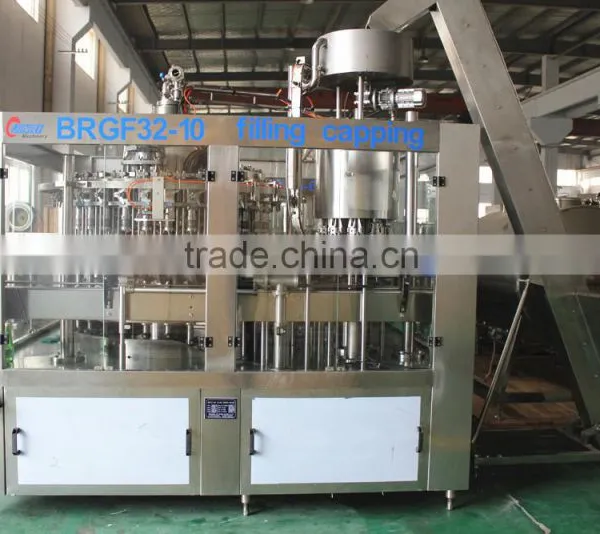

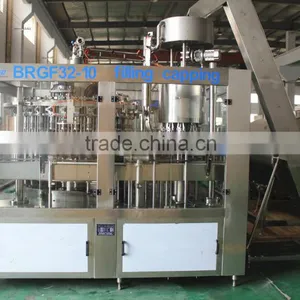

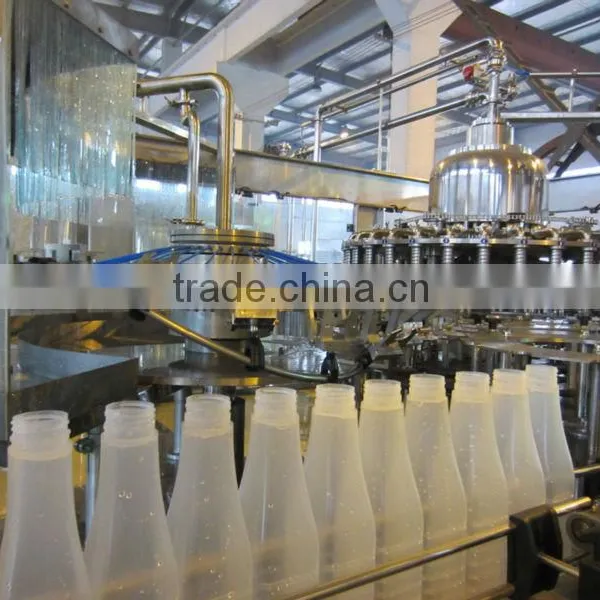

This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

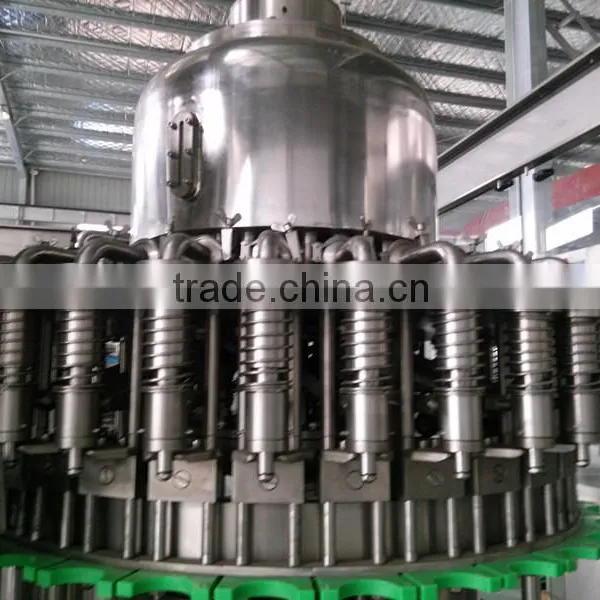

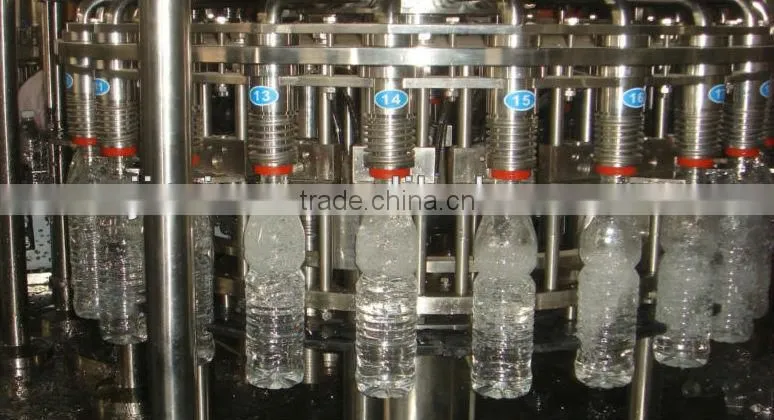

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

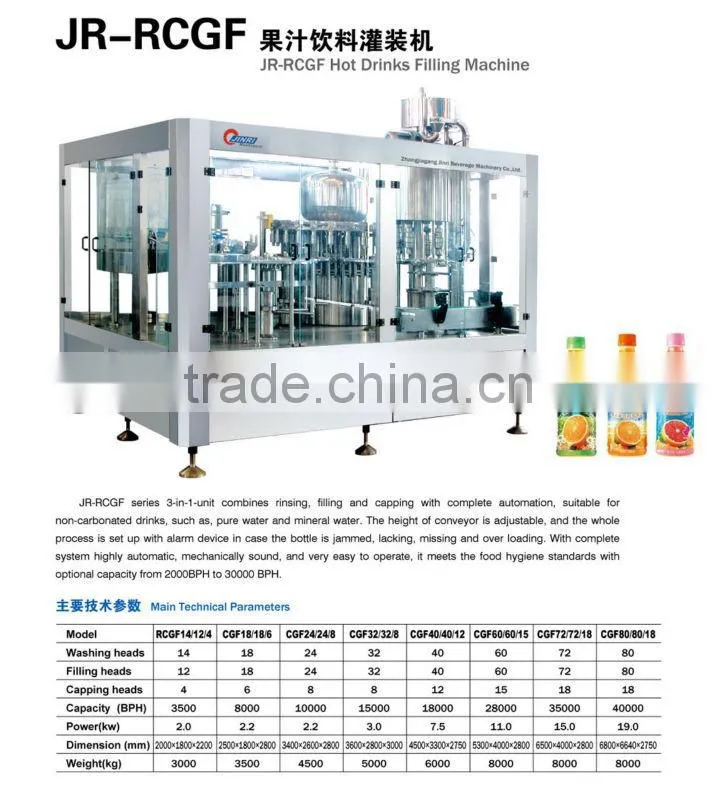

technical parameters:
Technical Data | |||||||||
Model |
CGF14124 |
CGF18186 |
CGF24248 |
CGF323210 |
|||||
The number of Washing, Filling, Capping |
14-12-4 |
18-18-6 |
24-24-8 |
32-32-8 |
|||||
Producing capacity; |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
|||||
Applicable bottle specifications (mm) |
φ=50-108 H=170-340 330ml-2.25L |
||||||||
Pressure (kg/cm2) |
2~3 |
||||||||
Motor power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
|||||
Outside vacuum pump power (kw) |
0.75 |
1.1 |
1.5 |
2.2 |
|||||
Overall dimension (mm) |
2100x1400x2500 |
2460x1720x2650 |
3100x2100x2650 |
3500x2500x2650 |
|||||
Weight(kg) |
2500 |
3500 |
4200 |
5500 |
|||||
Technical Data | |||||||||
Model |
CGF404010 |
CGF484812 |
CGF606015 |
||||||
The number of Washing, Filling, Capping |
40-40-10 |
48-48-12 |
60-60-15 |
||||||
Producing capacity: |
16000-20000 |
20000-24000 |
25000-30000 |
||||||
Applicable bottle specifications (mm) |
φ=50-108 H=170-340 330ml-2.25L |
||||||||
Pressure (kg/cm2) |
2~3 |
||||||||
Motor power (kw) |
Main motor 7.5kw |
Main motor 9.5kw |
Main motor 12kw |
||||||
Outside vacuum pump power (kw) |
2.2 |
3 |
4 |
||||||
Overall dimension (mm) |
4600x1800x2650 |
5200x4500x3400 |
6500x4500x3400 |
||||||
Weight(kg) |
6800 |
7600 |
9800 |
||||||
Juice machine

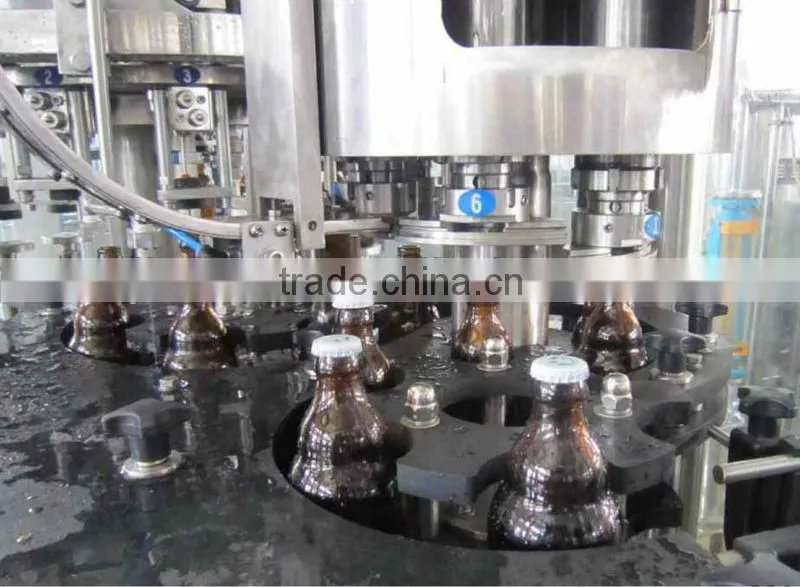

wine produce line
BEER MACHINE

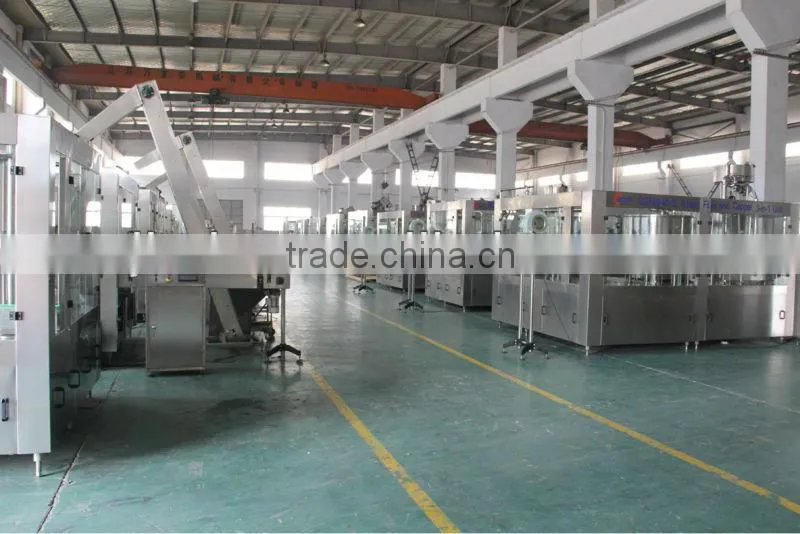

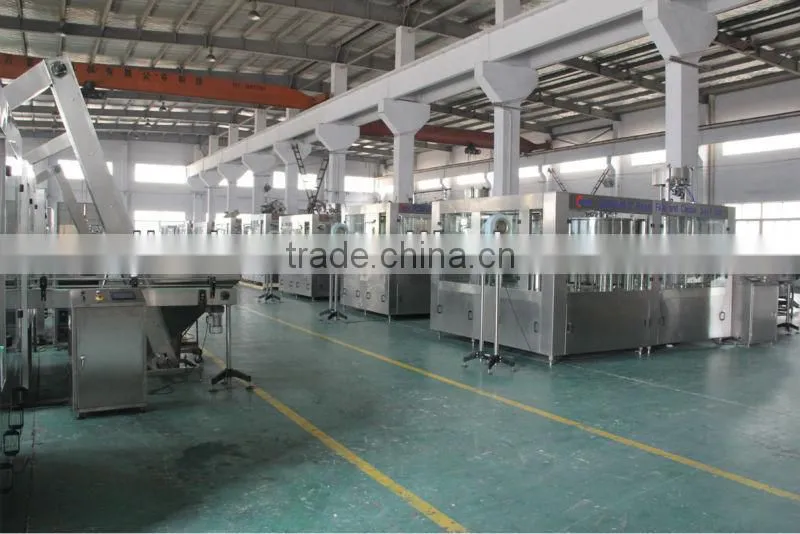

OUR FACTORY
