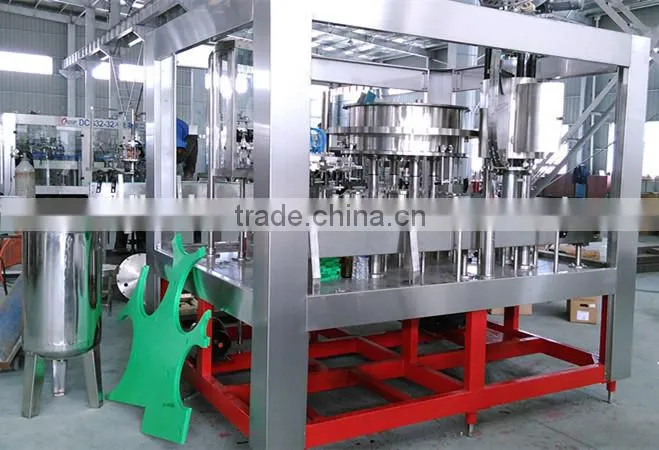

carbonated juice filling machine
The monobloc is composed by:
RINSER-FILLER-CAPPER
General description
CGF24-24-8 3 in 1 filling monobloc, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage production, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers
Machine frame
1. The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet(SUS304).
2. Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.
3. The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
4. The output shaft of the main motor is equipped overload protection to secure machine safety.
Electrical control system
The electrical cabinet is made of SUS304 stainless steel. From bottle infeed to bottle discharge, a PLC system controls the fully automatic operation of the 3-in-1 Unit.
Equipment structure
Base frame
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Driving system
Controlling cabinet
Cap elevator
Model |
Model CGF24-24-8 |
Number of working positions |
rinser : 24 heads,filler: 24 heads,capper: 8 heads |
Required capacity |
2,000-2500BPH(1500ml/bottle) |
Filling method |
Gravity filling |
Applicable bottle |
diameter 50-90,height 165-290 |
Air supply pressure |
0.7 MPa |
Air consumption |
0.8M3/min |
Rinsing water pressure |
0.2-0.25 MPa |
Rinsing water consumption |
1.5 tons/hour |
Rated voltage |
380V |
Main motor power |
4 Kw |
Installed power |
6.62 Kw |
Dimensions |
2650×2300×2250 (L×W×H) |
Machine weight |
3000Kg |
Main Electric configuration
No |
Name |
Supplier |
1 |
Main motor for monoblock |
SIEMENS |
2 |
Motor for cap unscrambler |
SIEMENS |
3 |
Motor for conveyor |
SIEMENS |
4 |
Washing pump |
Nangfan pump |
5 |
electromagnetism valve |
SMC |
6 |
Air source fitting |
SMC |
7 |
pressure adjusting valve |
SMC |
8 |
Switch |
Made in Taiwan |
9 |
Relay |
SIEMENS |
10 |
middle relay |
OMRON |
11 |
Photoelectricity switch |
banna(USA) |
12 |
Approach switch |
TURCK |
13 |
PLC |
OMRON |
14 |
Touch screen |
DIGITAL (made in Taiwan ) |
15 |
pynumatic parts |
Airtac |
16 |
AC Relay |
SIEMENS |
