Specifications
juice with pulp filler1.Capacity: 3000-12000BPH
2.Suitable for plastic bottle
3.Specially for hot filling juice,tea and
Juice with pulp filler
1)All Kinds juice
2)2000-30000BPH
3)Easy Operation And Mantainance

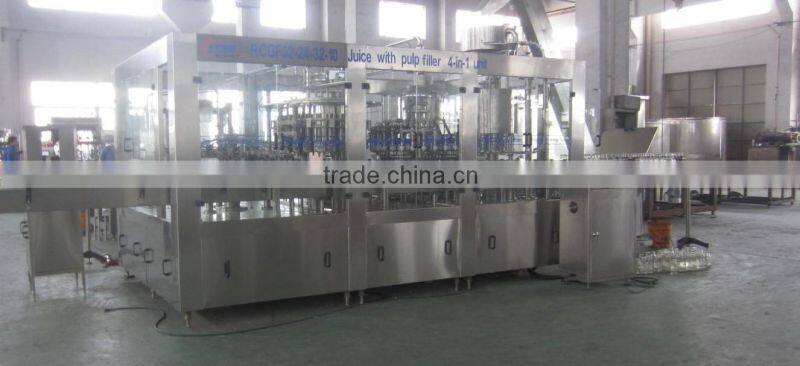

Juice with pulp filler
---Product Images

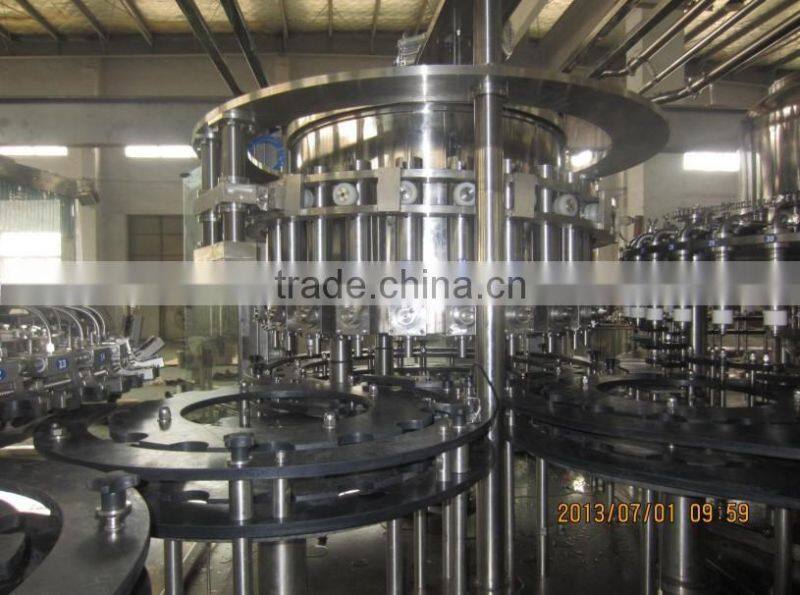

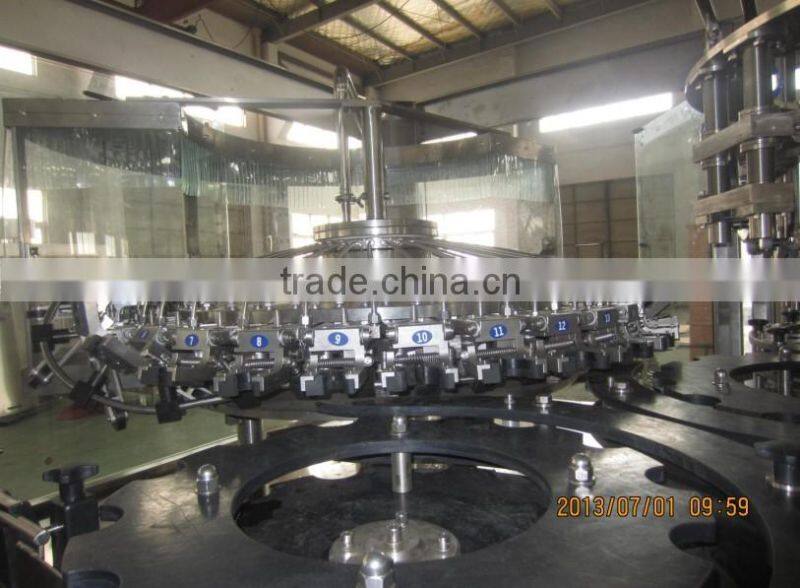

1.Washing part

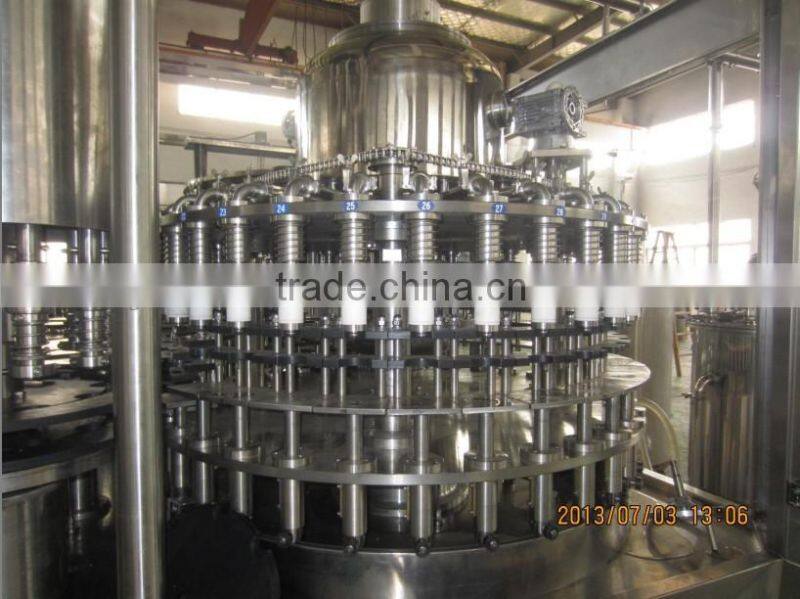

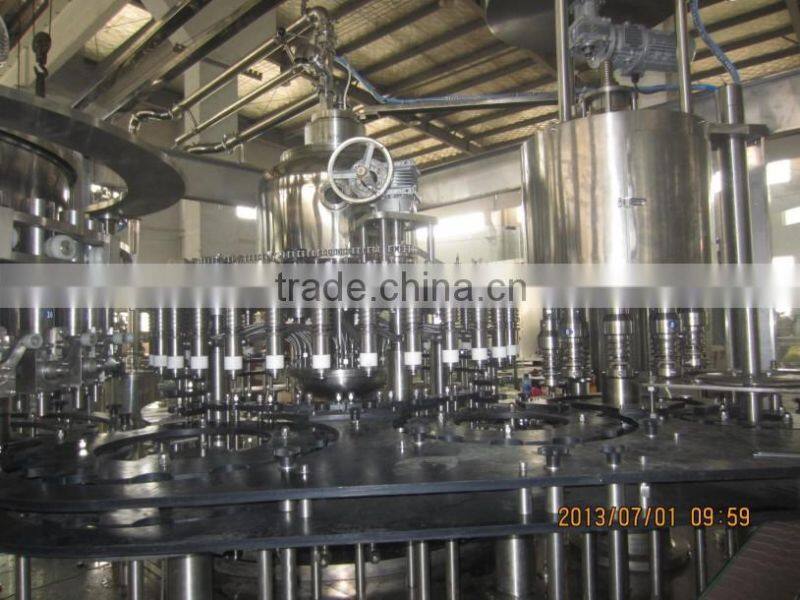

2.Filling part

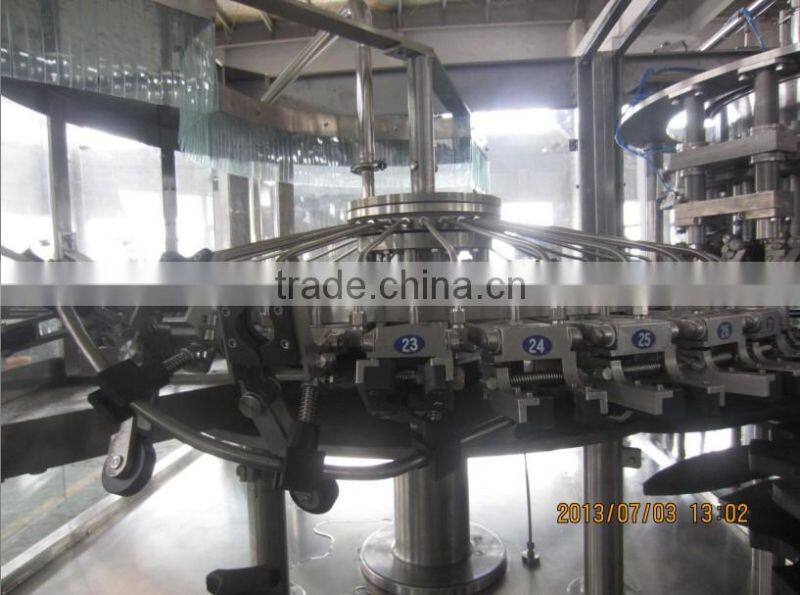

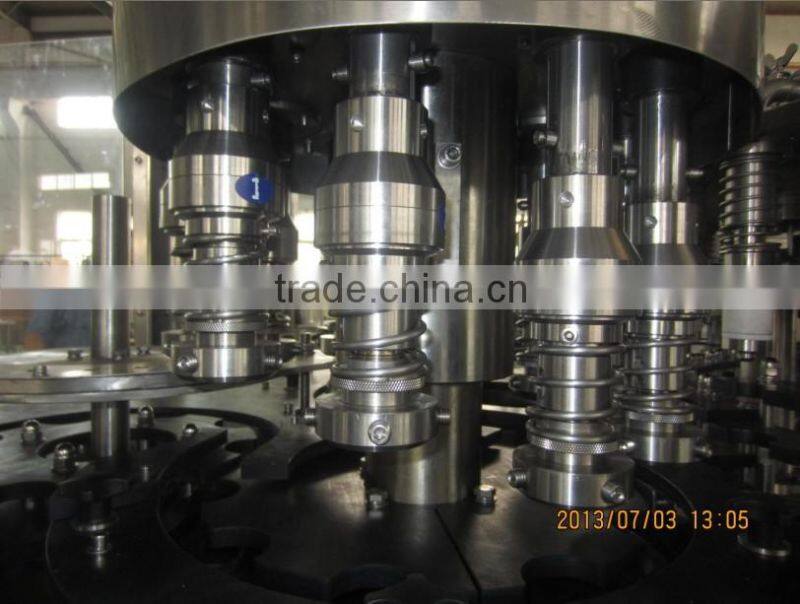

3.Capping parts
---Product Main Technical Data
Model |
RCGF14124 |
RCGF18186 |
RCGF24248 |
RCGF323210 |
RCGF404012 |
RCGF505012 |
RCGF606015 |
RCGF808020 |
Number of washing, filling and capping heads |
14-12-4 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-12 |
60-60-15 |
80-80-20 |
Production capacity(500ml) (B/H) |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
35000-40000 |
suitable bottle specification(mm) |
φ=50-110=170 330-2250ml |
|||||||
Washing pressure(kg/cm 2 ) |
2-3 |
|||||||
Motor power(kw) |
Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
Overall dimensions (mm) |
2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
76800×66400 ×2850 |
Weight (kg) |
2500 |
3500 |
4500 |
6500 |
8500 |
9800 |
12800 |
15000 |
WELCOME TO JINRI BEVERAG MACHINERY!

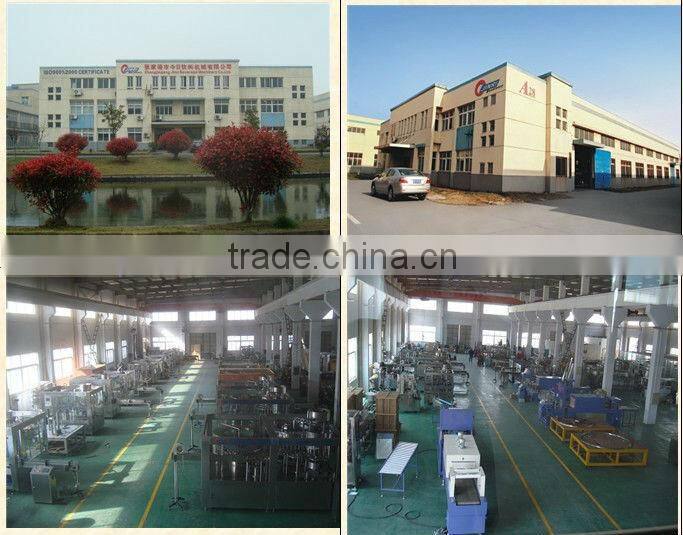

---Factory
---Certification
---Working
---Customers
---Delivery
For any further information about this machine,please contact us without hesitation,we will reply to you asap.Thank you and welcome to JINRI .
