Hot Roll Press Laminating Machine

Hot Roll Press Laminating Machine photo-1

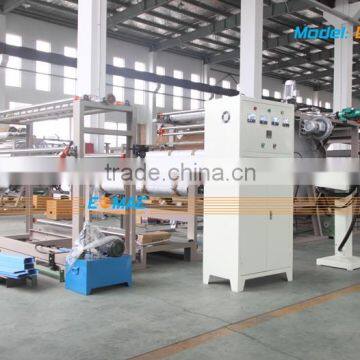

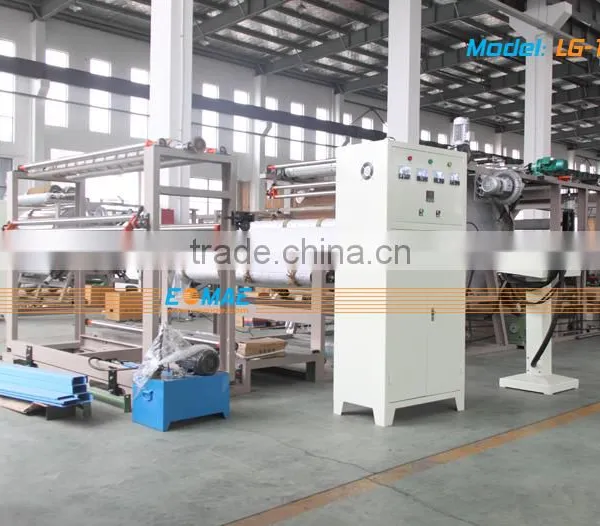

Hot Roll Press Laminating Machine photo-2

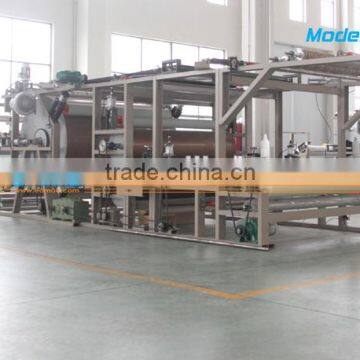

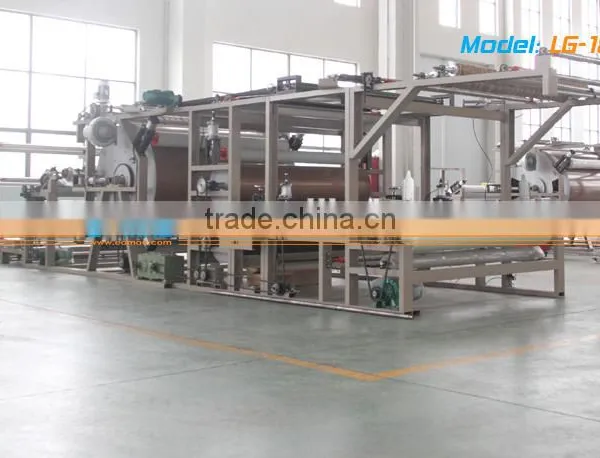

Hot Roll Press Laminating Machine photo-3

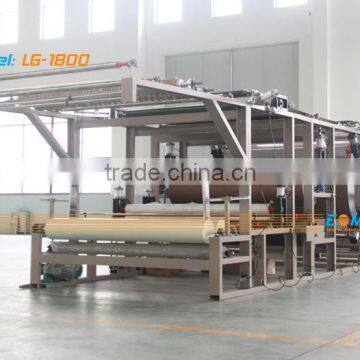

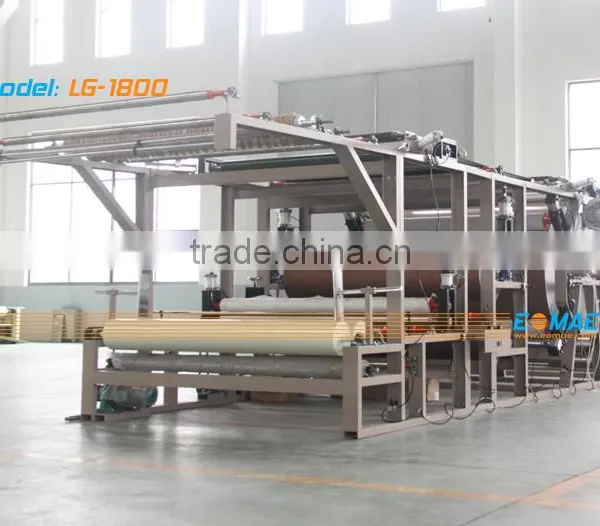

Hot Roll Press Laminating Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Chemical, Medical, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Chemical, Medical, Textiles
Packaging Type Case
Packaging Material Plastic, Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage Customizable
Power 55.5 KW
Place of Origin Jiangsu, China
Brand Name EOMAE
Model Number LG-1800
Dimension(L*W*H) 12800 x 2700 x 2600 mm
Weight 7600 KGS
Certification CE SGS ISO
After-sales Service Provided Engineers available to service machinery overseas





LG-1800 Hot Roll Press Laminating Machine





Applications:

  • Used for gluing and laminating:
    1. Fabric, Nonwoven, Foil ...
    2. Film (Membrane) such as PU, TPU, PTFE, PE, BOPP, OPP, PET, PVC...
    3. Luggage materials, such as EVA, PVC...
    4. Diving fabric, such as SBR, CR...
    5. ...
  • Widely used in garments, luggage, shoe materials, sports products, medical products, dive equipment, and other industries.



Key Features:

  • Applicable to solvent based glue;
  • Glue is transferred to the surface of the material via engraved roll (dot or diamond shape), then laminate it with other materials;
  • Laminated products is breathable, waterproof, soft and washable;
  • Professionally designed gluing unit, glue is transferred onto material surface very evenly, low glue consumption;
  • Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate;
  • Both unwinding and winding have magnetic constant tension control;
  • Automatic hydraulic centering unit ensures edge alignment in laminating;
  • Equipped with pneumatic expanding shaft for easy operation;
  • Automatic temperature control system, heating system is divided into 2 groups, user can select one group heating mode or both, can reduce the energy consumption;
  • Surface of the drying cylinder is coated with Teflon to avoid glue;
  • Efficient cooling unit;
  • Edge cutting unit;
  • Counting unit.





Options:

  • 1200mm diameter heating drum;
  • Thermal oil heating system;
  • Dot or diamond shape engraved roll, 25 mesh, 28 mesh, 32 mesh..., various options;
  • Servo motor
  • Machine color





Main Technical Data



  • LG-1800 Hot Roll Press Laminating Machine



Model:   LG-2000
Working Width:   1800mm
Drying Cylinder Diameter:   1500mm
Drying Cylinder Width:   2000mm
Heating Tube Inside Drying Cylinder:   30 PCS x 1.5 KW
Running speed:   1-30 m/min
Power:   55.5 KW
Net Weight:   7600 KGS
Dimension:   12800 x 2700 x 2600 mm

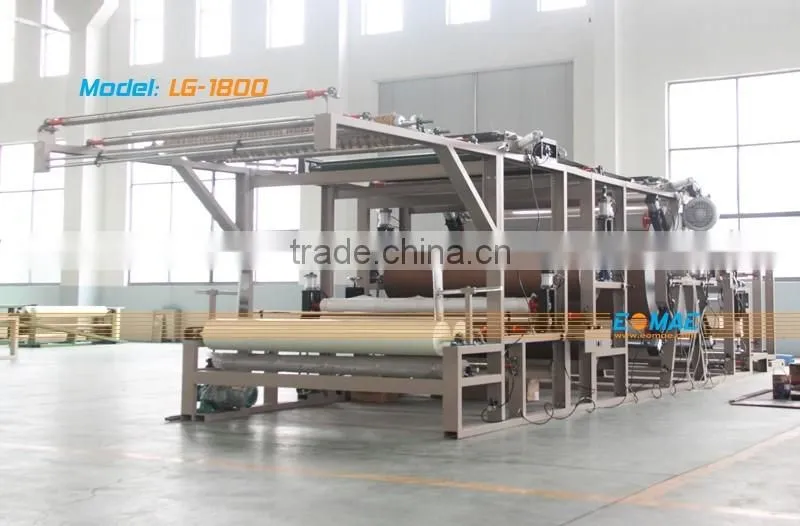

Machine Photos



  • LG-1800 Hot Roll Press Laminating Machine

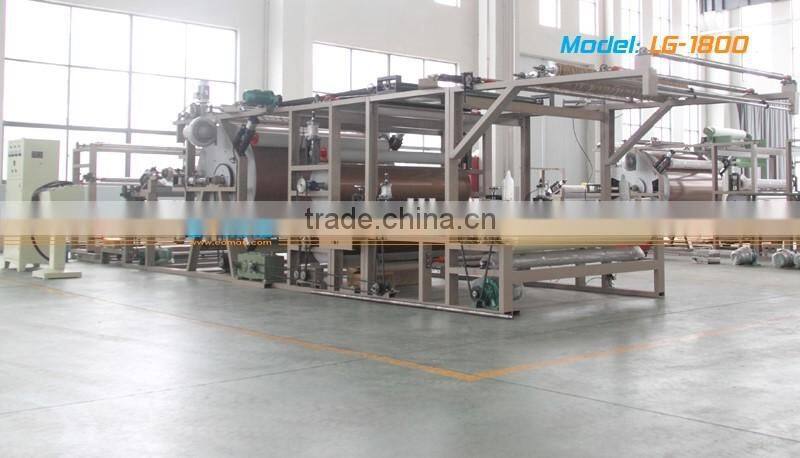

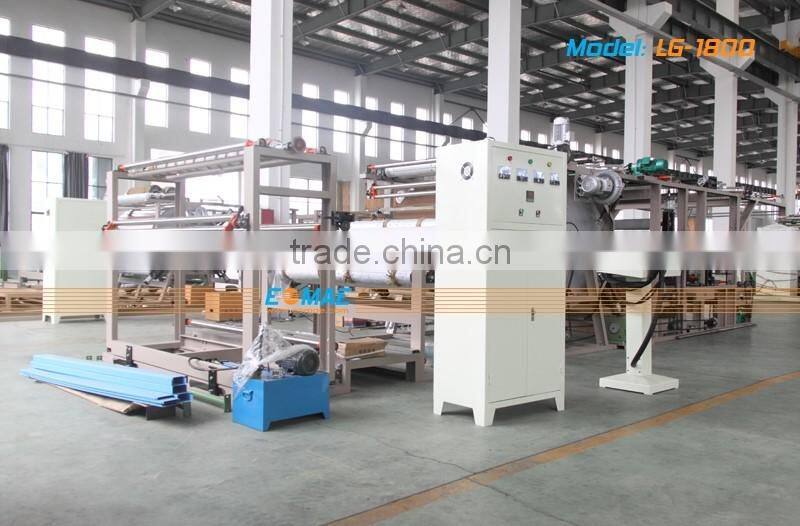

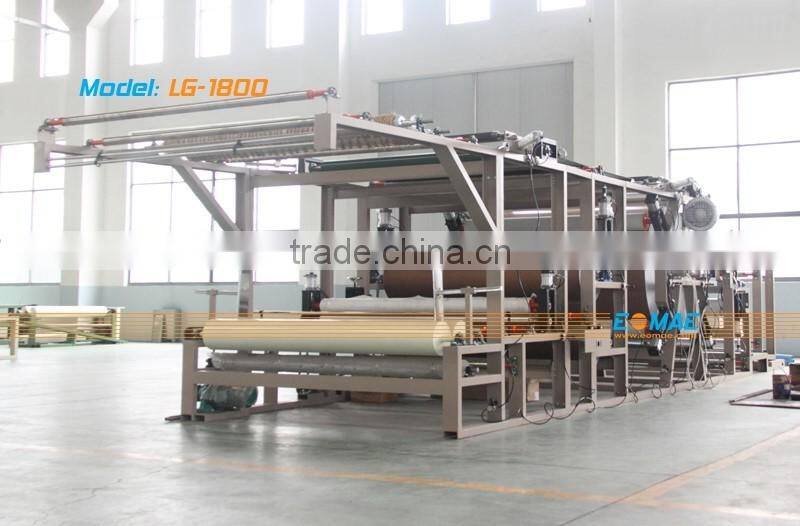

Hot Roll Press Laminating Machine



Hot Roll Press Laminating Machine



Hot Roll Press Laminating Machine





Hot Roll Press Laminating Machine



Hot Roll Press Laminating Machine
