TPU/PTFE/PU Film Laminating Machine LE-2200

Name: TPU/PTFE/PU Film Laminating Machine LE-2200
Brand: EOMAE
SKU: 131675033
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EOMAE

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number LE-2200

Voltage Customizable

Power(W) 51.2 KW

Dimension(L*W*H) 14800 x 2900 x 2600 mm

Weight 8800 KGS

Certification CE

Warranty 18 Months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

* Film Laminating Machine
* Solvent Based Glue
* Low glue consumption
* Multifunctional and Customizable
* CE Certified

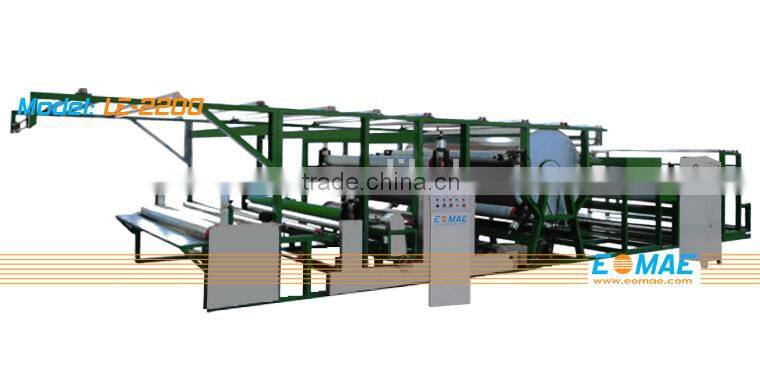

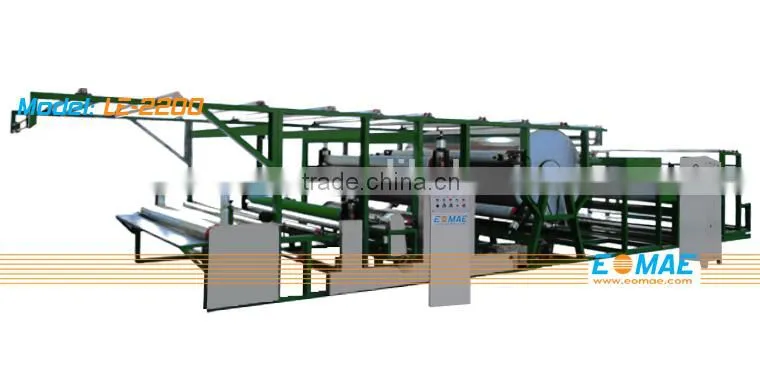

LE-2200 TPU/PTFE/PU Film Laminating Machine

Applications:

Used for gluing fabric or other material and laminate it with other materials, suitable for laminating:

Widely used in garments, luggage, shoe materials, sports products, medical products, dive equipment, and other industries.

Key Features:

Applicable to solvent based glue;
Glue is transferred to the surface of the material via engraved roll (dot or diamond shape), then laminate it with other materials;
Laminated products is breathable, waterproof, soft and washable;
Professionally designed gluing unit, glue is transferred onto material surface very evenly, low glue consumption;
Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate;
Both unwinding and winding have magnetic constant tension control;
Automatic hydraulic centering unit ensures edge alignment in laminating;
Equipped with pneumatic expanding shaft for easy operation;
Automatic temperature control system, heating system is divided into 2 groups, user can select one group heating mode or both, can reduce the energy consumption;
Surface of the drying cylinder is coated with Teflon to avoid glue;
Efficient cooling unit;
Edge cutting unit;
Counting unit.

Options:

1200mm diameter heating drum;
Thermal oil or steam heating drying cylinder;
Dot or diamond shape engraved roll, 25 mesh, 28 mesh, 32 mesh..., various options;
Servo motor
Machine color

Main Technical Data

Model:	LE-2200
Working Width:	2000mm
Drying Cylinder Diameter:	1500mm
Drying Cylinder Width:	2200mm
Heating Tube Inside Drying Cylinder:	30 PCS x 1.5 KW
Running speed:	1-30 m/min
Power:	51.2 KW
Net Weight:	8800 KGS
Dimension:	14800 x 2900 x 2600 mm
