Roller Textile Laminating Machine

Name: Roller Textile Laminating Machine
Brand: EOMAE
SKU: 131674993
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EOMAE

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number LG-1800

Voltage Customizable

Power(W) 56.0 KW

Dimension(L*W*H) 12800 x 2500 x 2800 mm

Weight 5800 KGS

Certification CE CIQ FTA SGS

Warranty 18 Months

After-sales Service Provided Engineers available to service machinery overseas

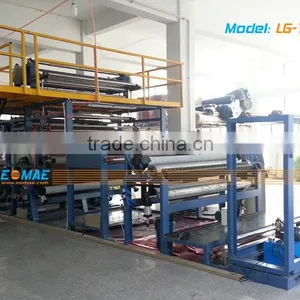

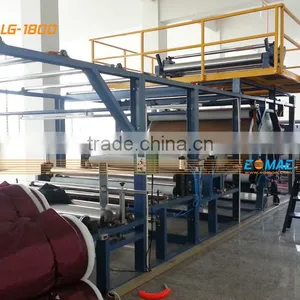

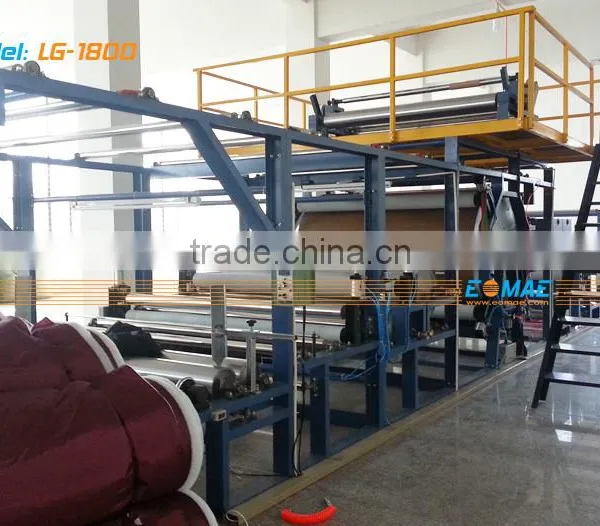

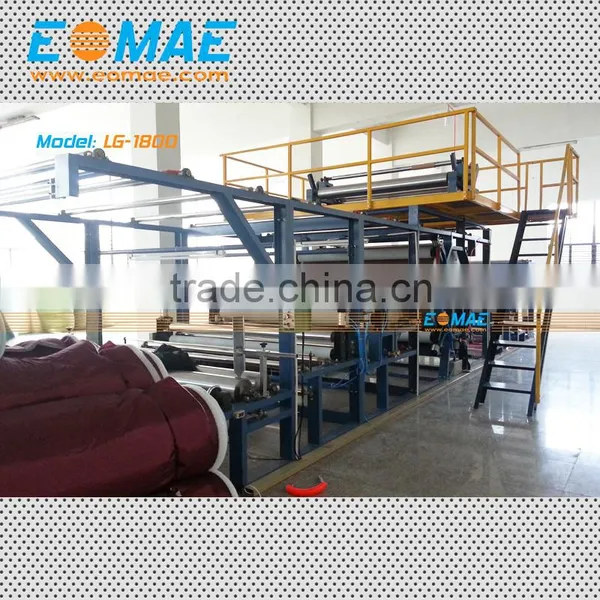

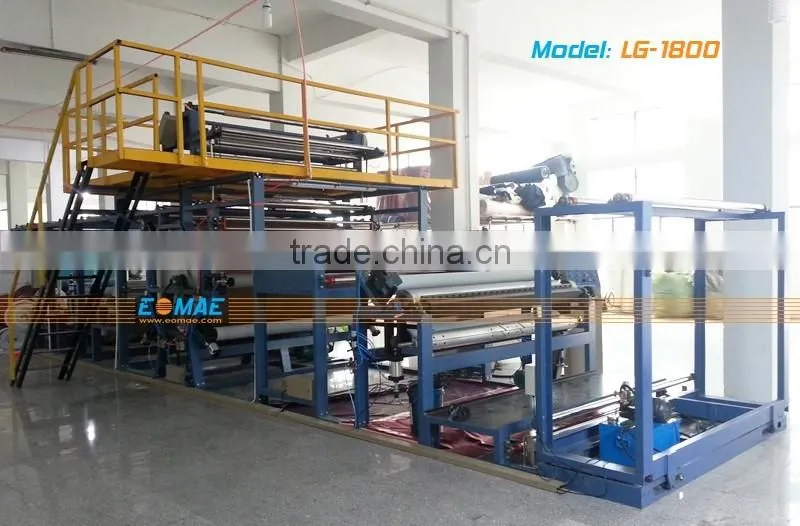

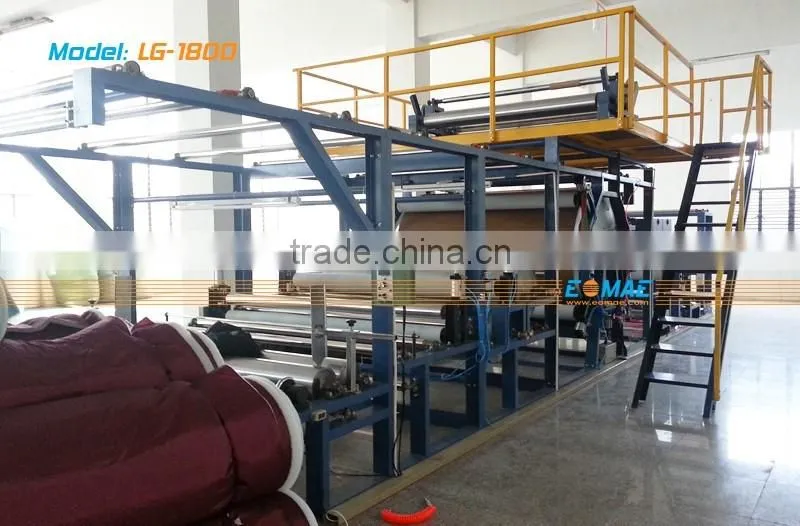

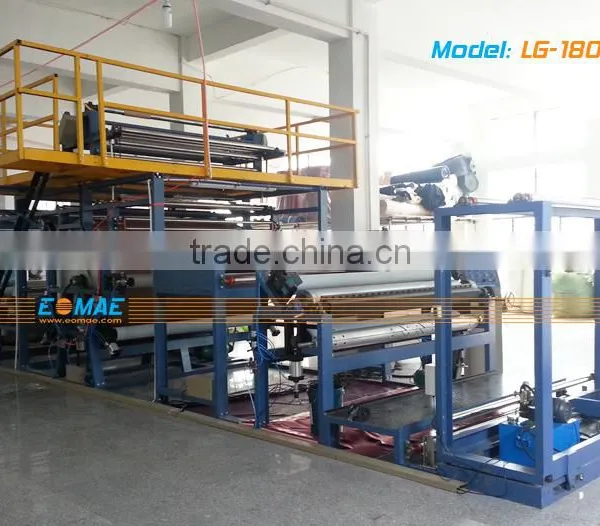

LG-1800 Roller Textile Laminating Machine

Applications:

Used for gluing fabric or other material and laminate it with other materials, suitable for laminating:

1. 1. Fabric, Nonwoven...
  2. Film (Membrane) such as PU, TPU, PTFE, PE, BOPP, OPP, PET, PVC...
  3. Luggage materials, such as EVA, PVC...
  4. Diving fabric, such as SBR, CR...
  5. ...

Widely used in garments, luggage, shoe materials, sports products, medical products, dive equipment, and other industries.

Key Features:

Applicable to solvent based glue;
Glue is transferred to the surface of the material via engraved roll (dot or diamond shape), then laminate it with other materials;
Equipped with platform and an additional set of film (membrane) unwinding unit, so user can glue on either material before laminating, more options;
Laminated products is breathable, waterproof, soft and washable;
Professionally designed gluing unit, glue is transferred onto material surface very evenly, low glue consumption;
Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate;
Both unwinding and winding have magnetic constant tension control;
Automatic hydraulic centering unit ensures edge alignment in laminating;
Equipped with pneumatic expanding shaft for easy operation;
Automatic temperature control system, heating system is divided into 2 groups, user can select one group heating mode or both, can reduce the energy consumption;
Surface of the drying cylinder is coated with Teflon to avoid glue;
Efficient cooling unit;
Edge cutting unit;
Counting unit.

Options:

1200mm diameter heating drum;
Thermal oil or steam heating drying cylinder;
Dot or diamond shape engraved roll, 25 mesh, 28 mesh, 32 mesh..., various options;
Servo motor
Machine color

Main Technical Data

Model:	LG-1800
Working Width:	1600mm
Drying Cylinder Diameter:	1500mm
Drying Cylinder Width:	1800mm
Heating Tube Inside Drying Cylinder:	30 PCS x 1.5 KW
Running speed:	1-30 m/min
Power:	56.0 KW
Net Weight:	5800 KGS
Dimension:	12800 x 2500 x 2800 mm
