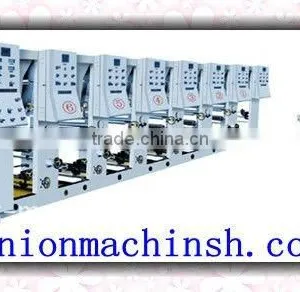

Rotogravure Printing MachineEasy operation,flexible starting,accurate color register.
Model of Machine.
Performance and Characteriestics
1.Easy operation,flexible starting,accurate color register.
2.the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3.Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting .
4.the priting ink is spread by the anilox cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit wehn the machine stops.
6.360°continuous and adjustable longitudinal register device.
7.The frequency control of motor speed adapts to different printing speeds.
8.There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables
Main parameter | |
Direction |
From unwind to rewind |
Printing colour |
1-12 |
Max printing width |
1100mm |
Max machine speed |
120m/min |
Max printing speed |
100m/min |
Diameter of printing plate |
Φ120mm-Φ300mm |
Precision of register |
Lengthwise ±0.15mm (Auto) Crosswise ±0.15mm (Manual) |
Unwinding diameter |
Φ500mm |
Rewinding diameter |
Φ500mm |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Air supply |
0.8mpa |
Press and print pressure |
500kg |
Scraper swing capacity |
±5mm |
Heat way |
Electricity |
Main motor power |
7.5kw |
Main power |
110kw |
Dimensions |
13000x3200x3000mm |
