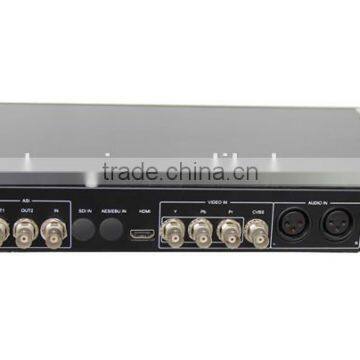

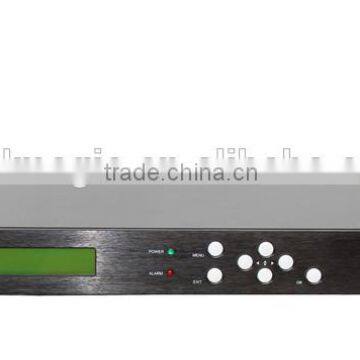

H-D-M-I Encoder Iptv

RM9000 multi-screen encoder/transcoder is a broadcast level encoder that can support multiple end devices, like TV, PC, PAD, Phone, etc. It can support various input interface including CVBS, HDSDI, HDMI, and support various IP output protocol. When used as transcoder, it can convert MPEG-2,MPEG-4,H.264 video format to MPEG-2/MPEG-4/H.264 and WMV encoding, the product can support up to16 channels SD or 4 channels HD transcoding. When used as encoder, it supports 4 channels SD or HD encoding for HDMI/SDI video/audio input, it can support 6 SD channels analog input and can output encoded data through Multi-screen . This product can be used widely in DVB /IPTV /Internet TV and Mobile TV field.

Key Features

• Input: IP/ASI/AV/SDI/HDSDI/HDMI
• Output: IP/ASI
• MPEG-2 Encoding in real time, up to MP@HL
• WMV support: WMV1/WMV2/WMV3(Microsoft WMV9)
• Video or Audio can be turned off independently
• Support Multi-track Transcoding
• Support Subtitles Pass-through
• Audio: fixed gain control or dynamic gain control supported
• Video: black border on Top/Bottom/Left/Right sides supported
• Up to 16 SD or 4 HD channels
• Rate control: Target VBR/Capped VBR/Near CBR and CBR
• Dynamic Video Bitrate: IP output keeps continuous when modifying video bitrate
• Resolution: from 80x64 to 1920x1080, can be customized
• For SDI input: if input signal is lost, color bar will be outputted instead, and customized subtitle overlay is supported on the color bar
• Offline transcoding supported,cluster supported
• Real time file recording supported
• File transcoding & streaming supported
• Backup support for single device: IP input and IP output
• Analog Input: up to 6 channels
• SPTS and MPTS supported for both IP and ASI input
• 0 ~ 30 seconds delay, adjustable
• IP Output Protocol: TS over UDP/RTP/HTTP/RTSP; FLV over HTTP/RTMP; HTTP Live Streaming; 3GP over RTP; MMS; File over Samba/NFS ;3GPP
• Video Input Format: MPEG1/MPEG2/MPEG4/H.264/WMV/DIVX/M-JPEG/RMVB
• Audio Input Format: WAV/MPGA/AAC/WMA/MP3/AMR/AC3
• IP Input Protocol: UDP/RTP/RTSP/MMS/HTTP; File over Samba/NFS
• Multi Channels: HD: 2~4; SD: 2~16
• Device control: Web or SNMP
• Completely Support: from one input stream to multi-profile, multi-format, multi-protocol, and multi-interface output streams
• ASI output: both internal services and external services (from IP to ASI directly) are supported
• Support FLV video live
• Support 3GP
• Support IPhone and IPad Series video live
• Support 3 dynamic Logo overlay and 2 subtitle overlay
• System Backup Support: 1+1 or N+M
• Various Applications: DVB/IPTV/WebTV/Mobile TV/Offline Transcoding/…
• SNMP Protocol software supports real time status monitor, alarm message, log storage

Video Horizontal Resolution

• 1920/1440/1280/1024/800/720/704/640/544/480/416/352/320/240/220/192/176/144/160/128/96/8

Video Vertical Resolution

• 1080/768/720/600/576/480/288/240/192/180/176/144/140/128/120/96/90/80/64

Video Encoding Format

• H.264/AVC Main Profile Level1-3
• H.264/AVC High Profile Level4
• MPEG-2 Main Profile, Main Level; MPEG-2 Main Profile, High Level
• WMV:WMV1/WMV2/WMV3(Microsoft WMV9)

Audio Encoding Format

• MPEG1 Layer II
• AAC
• AC3
• WMA
• MP3
• AMR

Video Input interface

• HDSDI
• CVBS
• HDMI

Audio Input interface

• 2 Analog balanced channels
• SDI embedded audio, Up to 3 stereo channels

Input interface

• 4xSDI
• 4xASI
• 4XHDSDI
• 4XHDMI(1U, not support HDCP), 1XHDMI(1U, not support HDCP), 3XHDMI(2U, support HDCP)
• 6xAV
• IP

Output Interface

• Two DVB-ASI output
• Two 100/1000M TS Over IP output

Physical and Power

• Size:1RU, 482X680X44(mm)
• Weight:9Kg
• Power:100-240 VAC Auto-ranging
• Power Consumption: Max 300W
• Operating Temp: 0℃-+50℃
• Humidity: 5-95%

 Warranty: 1 year

Techincal support service: 7*24 hours
