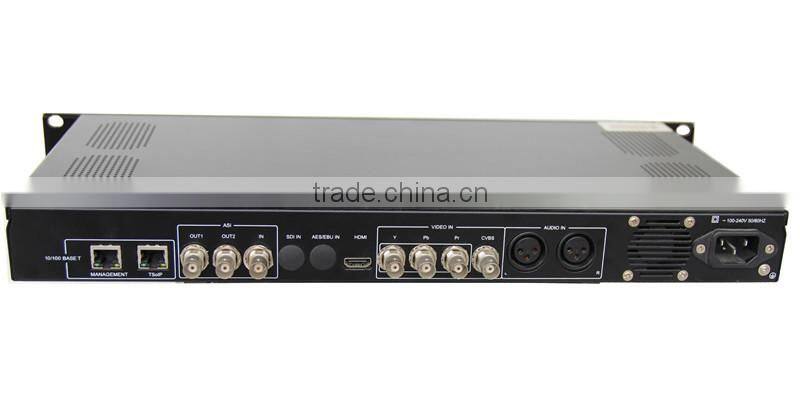

RM2000 H.264 HD/SD Encoder
RM2000 is a real-time H.264 HD/SD encoder that can produce the highest quality video for broadcast application. It can support HDSDI, YPbPr, CVBS, HDMI signal input and can output encoded data through DVB-ASI and IP. This product can be used widely in DVB-S, DVB-C, DVB-T and IPTV field.
Key Features
- Real-time H.264 HD/SD encoder, can support 480i,576i,720p,1080i and 1080p format
- Two DVB-ASI output
- One TS over IP output
- IP transmition support UDP and RTP Protocol, also support unicast and multicast
- Low delay
- Web-based control console and SNMP control software
- Front Panel LCD control for basic configuration
- SNMP Protocol software supports real time status monitor, alarm message, log storage
- 1RU dimension
Encoding Format
- Video Encoding Format:H.264/AVC High profile Level 4,Main profile Level 3
- Audio Encoding Format: Mpeg 1 Layer 2, AAC
Video Input interface
- HDSDI
- YPbPr
- CVBS
- HDMI
Audio Input interface
- One AES/EBU
- 2 Analog balanced channels
- SDI embedded audio, Up to 3 stereo channels
Output Interface
- Two DVB-ASI output
- One 10/100M TS Over IP output
Physical and Power:
- Size:1RU, 53.5cmX32.5cmX14.5cm
- Weight:3.5Kg
- Power:100-240 VAC Auto-ranging
- Power Consumption: Max 30W
RM2000 Series H.264 HD Encoder Config List
|
Model Config List |
RM2001-HD |
RM2002-HD |
|
|
Video Format |
HD |
√ |
√ |
SD |
√ |
√ |
|
|
Input Interface |
CVBS |
√ |
√ |
HD-SDI |
X |
√ |
|
HDMI |
X |
√ |
|
YPbPr |
√ |
√ |
|
Analog Audio |
√ |
√ |
|
AES/EBU Audio |
√ |
√ |
|
SDI Embedded Audio |
X |
√ |
|
|
Output Interface |
ASI |
√ |
√ |
IP |
√ |
√ |
|
Video Encoding Format |
H.264/AVC High Profile Level 4.0 |
||
|
Audio Encoding Format |
MPEG1 Layer2 |
√ |
√ |
AAC |
√ |
√ |
|
Management |
Front Panel |
√ |
√ |
WEB Based |
√ |
√ |
|
SNMP |
√ |
√ |
|
Warranty: 1 year
Techincal support service: 7*24 hours
Realmagic Technology Co., Ltd is a leading provider of complete solutions for Digital TV Head-end System and IP-based solution.
Realmagic targets to Research & Development for over 10-year experiences and provide professional and salable DVB devices, DTV system and IPTV solution. The Digital TV Head-end System provided by Realmagic has filled in many gaps and has accepted by clients from all over the world with its stability and reliable quality.
Realmagic has always concentrated on providing the best products and service to ensure the development of Digital TV with clients.
The 1U 4-channel HD & SD Encoder/Transcoder, 1U 8-channel/16 channel Multi-frequency Transcoder have wined the praise and recognition of system operators and broadcast users from all over the world.
