Help CenterRealmagic H.264 SD Transcoder/encoder
Related Products

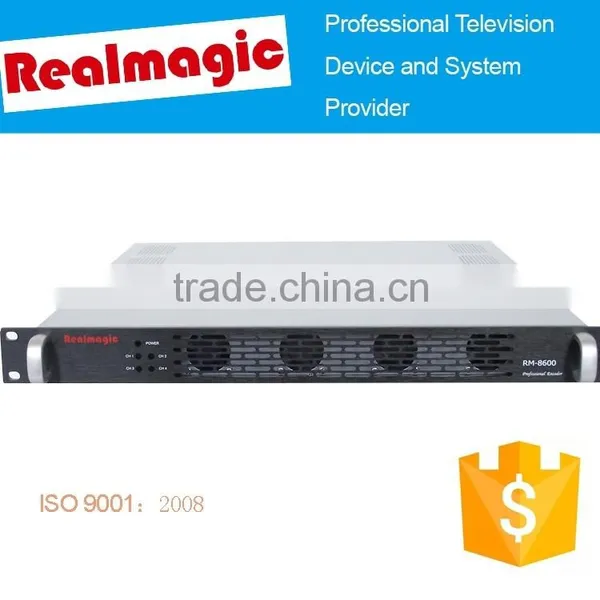

RM8600 is a real-time four-channel, scalable H.264 SD encoder that can produce the highest quality video for broadcast application. It can support Analog audio, CVBS signal input and can output encoded data through DVB-ASI and IP. And also support ASI and IP output simultaneously. This product can be used widely in DVB-S, DVB-C, DVB-T and IPTV field.
Key Features
- Real-time H.264 SD encoder, can support up to 4 channels simultaneously
- DVB-ASI Output
- TS over IP output
- IP transmition supports UDP and RTP protocol, also supports unicast and multicast
- Low delay
- Web-based control console and SNMP control software
- SNMP Protocol software supports real time status monitor, alarm message, log storage
- 1RU dimension
Video Resolution
- 720x576/480
- 704x576/480
- 640x576/480
- 544x576/480
- 528x576/480
- 352x576/480
Video Encoding Format
- H.264/AVC Main Profile Level 1-3
- H.264/AVC High Profile Level 4
Audio Encoding Format
- MPEG-1 Layer-2
- HE-AAC,LC-AAC
Input interface
- CVBS
- Analog Audio
- ASI
- IP
Output Interface
- DVB-ASI Output
- 10/100M TS Over IP Output
Physical and Power
- Size:1RU, 482.6X500X43.6mm
- Weight: 3.5Kg
- Power:100-240 VAC Auto-ranging
- Power Consumption: Max 30W
Warranty: 1 year
Technical support: 7*24 hours
Realmagic Technology Co., Ltd is a leading provider of complete solutions for Digital TV Head-end System and IP-based solution.
Realmagic targets to Research & Development for over 10-year experiences and provide professional and salable DVB devices, DTV system and IPTV solution. The Digital TV Head-end System provided by Realmagic has filled in many gaps and has accepted by clients from all over the world with its stability and reliable quality.
Realmagic has always concentrated on providing the best products and service to ensure the development of Digital TV with clients.
The 1U 4-channel HD & SD Encoder/Transcoder, 1U 8-channel/16 channel Multi-frequency Transcoder have wined the praise and recognition of system operators and broadcast users from all over the world.
