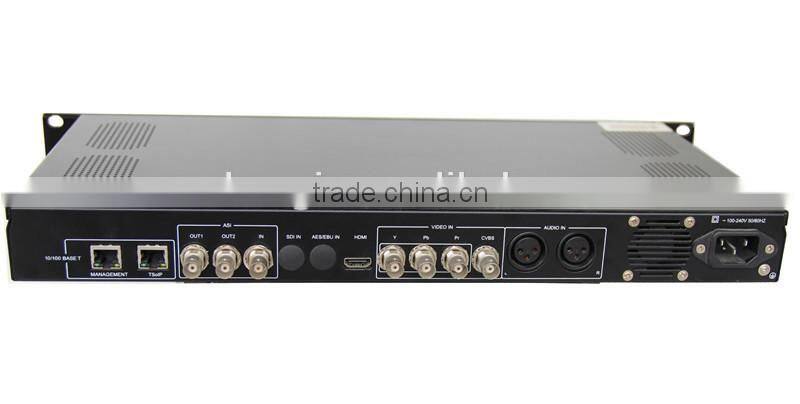

Factory Dirct Supply H.264 Iptv sd Encoder

RM2000 is a real-time H.264 HD/SD encoder that can produce the highest quality video for broadcast application. It can support HDSDI, YPbPr, CVBS, HDMI signal input and can output encoded data through DVB-ASI and IP. This product can be used widely in DVB-S, DVB-C, DVB-T and IPTV field.

Key Features

• Real-time H.264 HD/SD encoder, can support 480i,576i,720p,1080i and 1080p format
• Two DVB-ASI output
• One TS over IP output
• IP transmition support UDP and RTP Protocol, also support unicast and multicast
• Low delay
• Web-based control console and SNMP control software

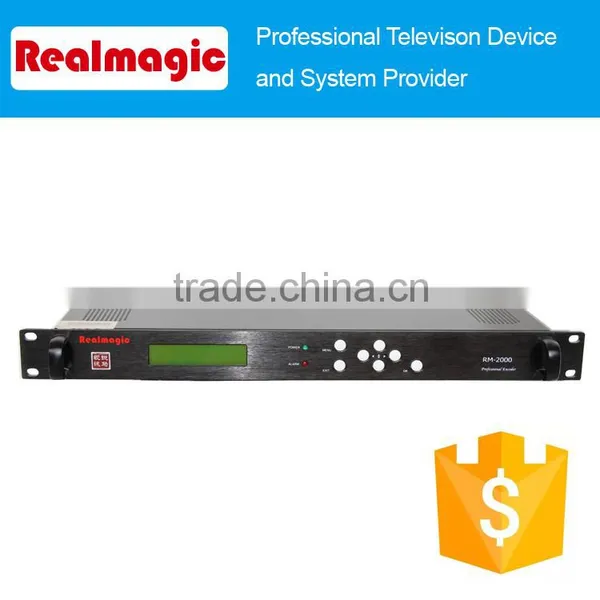

• Front Panel LCD control for basic configuration
• SNMP Protocol software supports real time status monitor, alarm message, log storage
• 1RU dimension

Encoding Format

• Video Encoding Format:H.264/AVC High profile Level 4,Main profile Level 3
• Audio Encoding Format: Mpeg 1 Layer 2, AAC

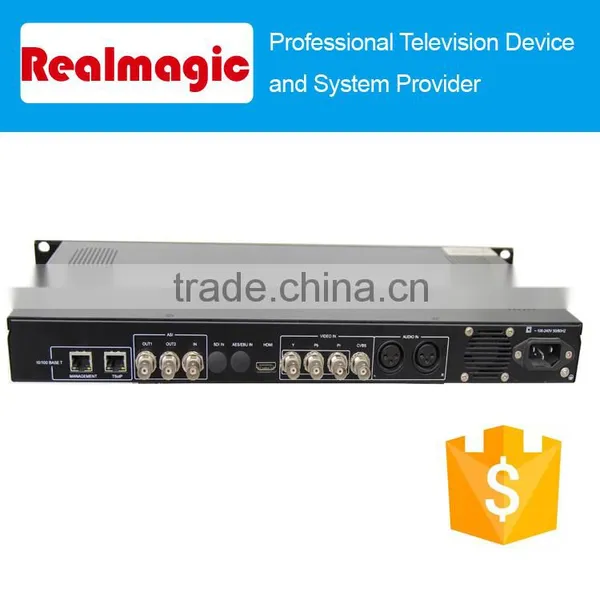

Video Input interface

• HDSDI
• YPbPr
• CVBS
• HDMI

Audio Input interface

• One AES/EBU
• 2 Analog balanced channels
• SDI embedded audio, Up to 3 stereo channels

Output Interface

• Two DVB-ASI output
• One 10/100M TS Over IP output

Physical and Power:

• Size:1RU, 482.6X252X43.6(mm)
• Weight:3.5Kg
• Power:100-240 VAC Auto-ranging
• Power Consumption: Max 30W

RM2000 Series H.264 SD Encoder Config List



Model  Config List		RM2001-SD	RM2002-SD
Video Format	HD	X	X
	SD	√	√
Input Interface	CVBS	√	√
	SDI	X	√
	YPbPr	X	√
	Analog Audio	√	√
	AES/EBU Audio	X	X
	SDI Embedded Audio	X	√
Output Interface	ASI	√	√
	IP	√	√
Video Encoding Format	H.264/AVC MP@L3
Audio Encoding Format	MPEG1 Layer2	√	√
	AAC	√	√
Management	Front Panel	√	√
	WEB Based	√	√
	SNMP	√	√





RM2000 Series H.264 HD Encoder Config List



Model        Config List		RM2001-HD	RM2002-HD
Video Format	HD	√	√
	SD	√	√
Input Interface	CVBS	√	√
	HD-SDI	X	√
	HDMI	X	√
	YPbPr	√	√
	Analog Audio	√	√
	AES/EBU Audio	√	√
	SDI Embedded Audio	X	√
Output Interface	ASI	√	√
	IP	√	√
Video Encoding Format	H.264/AVC High Profile Level 4.0
Audio Encoding Format	MPEG1 Layer2	√	√
	AAC	√	√
Management	Front Panel	√	√
	WEB Based	√	√
	SNMP	√	√
