Huawei Wifi Access Equipment AP3010DN-AGN-CN AP5010SN-GN AP5010DN-AGN-CN AP5010SN-GN-CN AP5010DN-AGN

Huawei Wifi Access Equipment AP3010DN-AGN-CN AP5010SN-GN AP5010DN-AGN-CN AP5010SN-GN-CN AP5010DN-AGN thumbnail-1
Huawei Wifi Access Equipment AP3010DN-AGN-CN AP5010SN-GN AP5010DN-AGN-CN AP5010SN-GN-CN AP5010DN-AGN thumbnail-2
Huawei Wifi Access Equipment AP3010DN-AGN-CN AP5010SN-GN AP5010DN-AGN-CN AP5010SN-GN-CN AP5010DN-AGN photo-1
Huawei Wifi Access Equipment AP3010DN-AGN-CN AP5010SN-GN AP5010DN-AGN-CN AP5010SN-GN-CN AP5010DN-AGN photo-2
US$ 100 - 100 MOQ: 1 Bag
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
Xueyou Union (Wuhan) Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function Firewall, QoS
LAN Ports 16
WAN Ports Other
Certification ISO9001
Brand Name huawei
Model Number AP3010DN-AGN-CN
Place of Origin Guangdong, China

Introduction

The AP6610DN-AGN is an enhanced series dual-frequency Access Point (AP).With a high level of physical protection, it is applicable to pedestrian areas, factories, and other challenging environments, meeting the outdoor network deployment requirements.

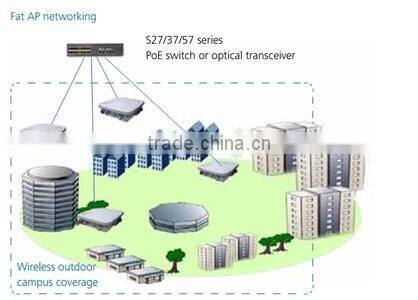

The AP is applicable to open outdoor areas with high user densities, such as squares, residential communities, schools, and gardens, or outdoor places that have high demands for wireless access, such as pedestrian malls. This AP can be used together with outdoor antenna to provide long-distance network coverage and implements stable radio backhaul in a wireless distribution system.

The AP6610DN-AGN can work as a Fat AP or Fit AP and switch flexibly between the two working modes based on the network plan.

When the wireless network scale is small, customers need to purchase only AP products and set the APs to work as Fat APs. As the network scale expands, tens of or hundreds of APs exist on the network. To simplify network management, customers are advised to purchase ACs to perform centralized management on the APs and set the APs to work as Fit APs.

Specifications

Item Description
Technical specifications Dimensions (H×W×D) 83 mm×255 mm×255 mm
Weight 2.65 kg
System memory 128 MB DDR2
32 MB flash memory
Power specifications Power input AC input voltage
Rated voltage: 100 V AC to 240 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz
NOTE:The AP6610DN-AGN cannot receive power from a PoE device. When installing the AP6610DN-AGN, ensure that an AC power source is available near the AP6610DN-AGN.
Maximum power consumption 30 W
NOTE:The maximum power consumption depends on local laws.
Environment parameters Operating temperature -40°C to +60°C
Storage temperature -40°C to +70°C
Humidity 0% to 100% (non-condensing)
Waterproof grade IP67
Altitude –60 m to 4000 m



Radio Parameters

Item Description
Antenna type Dual-polarization antenna or common outdoor antenna
Maximum number of concurrent users 128
Maximum transmit power 2.4G: 27dBm
5G: 24dBm
You can adjust the transmit power from the maximum transmit power by 20 dB, with a step of 1 dB.
NOTE:Actual transmit power depends on local laws and regulations.
Maximum
number of
non-overlapping
channels 		2.4 GHz
802.11b/g
20MHz: 3
802.11n
20MHz: 3
40MHz: 1 		5 GHz
802.11a
20MHz: 24
802.11n
20MHz: 24
40MHz: 11
NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status
Channel Rate 802.11b: 1, 2, 5.5, and 11 Mbit/s
802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11n data rate (2.4 GHz and 5 GHz)
GI2=800ns GI=400ns

WLAN features

  • Compliance with IEEE 802.11a/b/g/n, providing a maximum rate of 300 Mbit/s
  • Maximum ratio combining (MRC)
  • Maximum-likelihood detection (MLD)
  • Data unit aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
  • Short GI in 20 MHz and 40 MHz modes
  • Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding
  • Automatic and manual rate adjustment (the rate is adjusted automatically by default)
  • WLAN channel management and channel rate adjustment
  • Automatic channel scanning and interference avoidance
  • Service set identifier (SSID) hiding
  • Signal sustain technology (SST)
  • Unscheduled automatic power save delivery (U-APSD)
  • Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
  • Automatic login in Fit AP mode
  • Wireless distribution system (WDS) in Fit AP mode
  • Mesh networking in Fit AP mode
