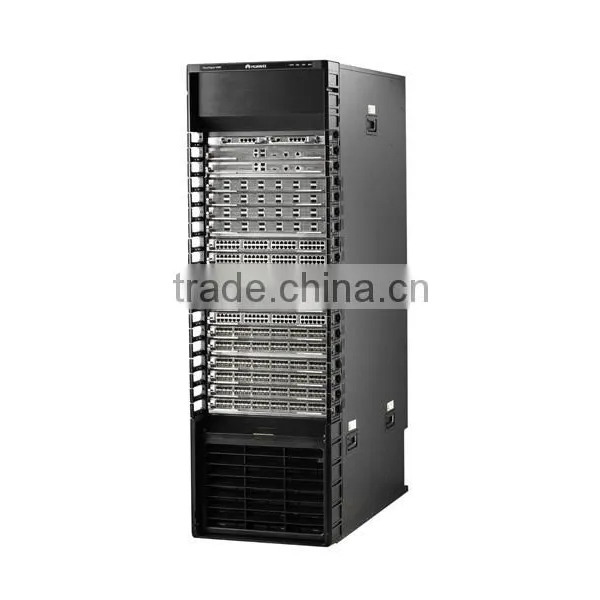

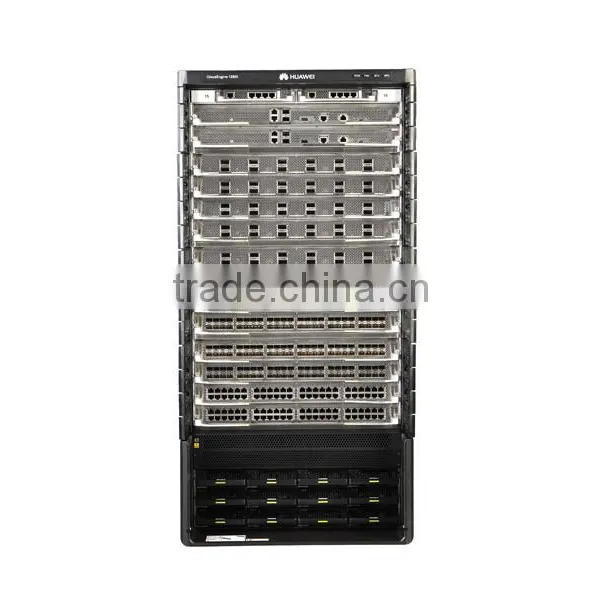

2016 Huawei CloudEngine 12800 Series Data Center Switches CE12812
US$ 100 - 1,000
MOQ: 1 Box
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
24
Transmission Rate:
10/100Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Huawei CloudEngine 12800 Series Data Center Switches CE12808US$ 100 - 1,000MOQ: 1 Box -
2016 Huawei CloudEngine 12800 Series Data Center Switches CE12804US$ 100 - 1,000MOQ: 1 Box
-
2016 Huawei CloudEngine 12800 Series Data Center SwitchesUS$ 100 - 1,000MOQ: 1 Box
-
Single-mode Duplex Fiber Optic Patch Cable SC-SC, SC-LC, SC-FC, FC-FC, LC-LCUS$ 3 - 10MOQ: 100 Pieces
-
Huawei Wifi Access Equipment AP3010DN-AGN-CN AP5010SN-GN AP5010DN-AGN-CN AP5010SN-GN-CN AP5010DN-AGNUS$ 100 - 100MOQ: 1 Bag
Products Status
Stock
Ports
24
Transmission Rate
10/100Mbps
Function
POE, VLAN Support
Communication Mode
Full-Duplex
Certification
CE
Switch Capacity
16Gbps
Brand Name
huawei
Model Number
CE12800
Place of Origin
Guangdong, China
CloudEngine 12800 Series Data Center Switches
CE12800 offers carrier-grade reliability, virtualization support, iStack clustering, and Software-Defined Networking features for building and scaling data centers and campus networks. CE12800 switches provide versatility and resilient performance for server-based multimedia applications, Big Data analytics, and cloud computing.
Elastic switching meets your specialized requirements. 576 x 100 GE, 576 x 40 GE, 2,304 x 25 GE, or 2,304 x 10 GE ports with total switching capacity of 160 Tbit/s per switch, upgradable to 320 Tbit/s.
Energy-saving technologies and patented front-to-rear, “on demand” cooling keep performance sizzling and networks cool.
Product specifications
| Item | CE12804S | CE12808S | CE12804 | CE12808 | CE12812 | CE12816 |
|---|---|---|---|---|---|---|
| Switching Capacity | 40/80 Tbit/s | 80/160 Tbit/s | 40/80 Tbit/s | 80/160 Tbit/s | 120/240 Tbit/s | 160/320 Tbit/s |
| Forwarding Performance | 17,280 Mpps | 34,560 Mpps | 17,280 Mpps | 34,560 Mpps | 51,840 Mpps | 69,120 Mpps |
| Service Slots | 4 | 8 | 4 | 8 | 12 | 16 |
| Switching Fabric Module Slots | 2 | 4 | 6 | 6 | 6 | 6 |
| Fabric Architecture | Clos architecture, cell switching, VoQ, and distributed large buffer | |||||
| Airflow Design | Strict front-to-back | |||||
| Device Virtualization | Virtual System (VS) | |||||
| Cluster Switch System (CSS) | ||||||
| Super Virtual Fabric (SVF) | ||||||
| Network Virtualization | M-LAG | |||||
| TRILL | ||||||
| VXLAN routing and bridging | ||||||
| EVPN | ||||||
| VM Awareness | Agile Controller | |||||
| Network Convergence | FCoE | |||||
| DCBX, PFC, and ETS | ||||||
| Data Center Interconnection | EVN supports inter-DC Layer 2 network interconnections | |||||
| Programmability | OpenFlow | |||||
| OPS | ||||||
| Puppet and OVSDB plugins released on open source websites | ||||||
| Linux container for open source and customization programming | ||||||
| Traffic Analysis | NetStream | |||||
| sFlow | ||||||
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs | |||||
| Default VLAN | ||||||
| QinQ | ||||||
| MUX VLAN | ||||||
| MAC Address | Dynamic learning and aging of MAC addresses | |||||
| Static, dynamic, and black hole MAC address entries | ||||||
| Packet filtering based on source MAC addresses | ||||||
| MAC address limiting based on ports and VLANs | ||||||
| IP Routing | IPv4 dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP | |||||
| IPv6 dynamic routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+ | ||||||
| IPv6 | IPv6 Neighbor Discovery (ND) | |||||
| Path MTU Discovery (PMTU) | ||||||
| TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | ||||||
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP | |||||
| IGMP snooping | ||||||
| IGMP proxy | ||||||
| Fast leave of multicast member interfaces | ||||||
| Multicast traffic suppression | ||||||
| Multicast VLAN | ||||||
| MPLS | Basic MPLS functions | |||||
| MPLS VPN/VPLS/VPLS over GRE | ||||||
| Reliability | LACP | |||||
| STP, RSTP, VBST and VBST | ||||||
| BPDU protection, root protection, and loop protection | ||||||
| Smart Link and multi-instance | ||||||
| DLDP | ||||||
| ERPS (G.8032) | ||||||
| VRRP, VRRP load balancing, and BFD for VRRP | ||||||
| BFD for BGP/IS-IS/OSPF/Static route | ||||||
| In-Service Software Upgrade (ISSU) | ||||||
| QoS | Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information | |||||
| Actions include ACL, CAR, and re-marking | ||||||
| Queue scheduling modes such as PQ, WFQ, and PQ + WRR | ||||||
| Congestion avoidance mechanisms, including WRED and tail drop | ||||||
| Traffic shaping | ||||||
| Configuration and Maintenance | Console, Telnet, and SSH terminals | |||||
| Network management protocols, such as SNMP v1/v2c/v3 | ||||||
| File upload and download through FTP and TFTP | ||||||
| BootROM upgrade and remote upgrade | ||||||
| Hot patches | ||||||
| User operation logs | ||||||
| Zero-Touch Provisioning (ZTP) | ||||||
| Security and Management | 802.1x authentication | |||||
| RADIUS and HWTACACS authentication for login users | ||||||
| Command line authority control based on user levels, preventing unauthorized users from using commands | ||||||
| Defense against MAC address attacks, broadcast storms, and heavy-traffic attacks | ||||||
| Ping and traceroute | ||||||
| Remote Network Monitoring (RMON) | ||||||
| Dimensions (W x D x H) | 17.4 in. x 24.4 in. x 14.1 in. (442 mm x 620 mm x 352.8 mm) (8U) | 17.4 in. x 24.4 in. x 28.2 in. (442 mm x 620 mm x 708.4 mm) (16U) | 17.4 in. x 32 in. x 19.1 in. (442 mm x 813 mm x 486.15 mm) (11U) | 17.4 in. x 32 in. x 29.6 in. (442 mm x 813 mm x 752.85 mm) (17U) | 17.4 in. x 32 in. x 38.4 in. (442 mm x 813 mm x 975.1 mm) (22U) | 17.4 in. x 35.6 in. x 62.9 in. (442 mm x 905 mm x 1,597.4 mm) (36U) |
| Chassis Weight (empty) | < 132.3 lb. (60 kg) | < 202.5 lb. (100 kg) | < 242.5 lb. (110 kg) | < 330.7 lb. (150 kg) | < 418.9 lb. (190 kg) | < 693.3 lb. (290 kg) |
| Operating Voltage | AC: 90V to 290V DC: -38.4V to -72V HVDC: 240V |
|||||
| Maximum Power Supply | 6,000W | 12,000W | 5,400W | 10,800W | 16,200W | 27,000W |
| Mainframe | |
|---|---|
| Basic Configuration | |
| CE-RACK-A01 | FR42812 Assembly Rack (W x D x H) 31.5 in. x 47.2 in. x 78.7 in. (800 mm x 1,200 mm x 2,000 mm) |
| CE12804S-AC | CE12804S Assembly Chassis (with fans) |
| CE12808S-AC | CE12808S Assembly Chassis (with fans) |
| CE12804S-DC | CE12804S DC Assembly Chassis (with fans) |
| CE12808S-DC | CE12808S DC Assembly Chassis (with fans) |
| CE12804-AC | CE12804 AC Assembly Chassis (with CMUs and fans) |
| CE12808-AC | CE12808 AC Assembly Chassis (with CMUs and fans) |
| CE12812-AC | CE12812 AC Assembly Chassis (with CMUs and fans) |
| CE12816-AC | CE12816 AC Assembly Chassis (with CMUs and fans) |
| CE12804-DC | CE12804 DC Assembly Chassis (with CMUs and fans) |
| CE12808-DC | CE12808 DC Assembly Chassis (with CMUs and fans) |
| CE12812-DC | CE12812 DC Assembly Chassis (with CMUs and fans) |
| CE12816-DC | CE12816 DC Assembly Chassis (with CMUs and fans) |
| Main Processing Unit | |
| CE-MPU-S | CE12800S Main Processing Unit |
| CE-MPU | Main Processing Unit |
| Switch Fabric Unit | |
| CE-SFU-S | CE12800S Switch Fabric |
| CE-SFU04 | CE12804 Switch Fabric |
| CE-SFU08 | CE12808 Switch Fabric |
| CE-SFU12 | CE12812 Switch Fabric |
| CE-SFU16 | CE12816 Switch Fabric |
| GE BASE-T Interface Card | |
| CE-L48GT | 48-port 10/100/1,000 BASE-T Interface Card (RJ45) |
| GE BASE-X Interface Card | |
| CE-L48GS | 48-port 100/1,000 BASE-X Interface Card (SFP) |
| 10G BASE-X Interface Card | |
| CE-L12XS | 12-port 10G BASE-X Interface Card (SFP/SFP+) |
| CE-L24XS | 24-port 10G BASE-X Interface Card (SFP/SFP+) |
| CE-L48XS | 48-port 10G BASE-X Interface Card (SFP/SFP+) |
| 40 GE Interface Card | |
| CE-L06LQ | 6-port 40G Interface Card (QSFP+) |
| CE-L12LQ | 12-port 40G Interface Card (QSFP+) |
| CE-L24LQ | 24-port 40G Interface Card (QSFP+) |
| CE-L36LQ | 36-port 40G Interface Card (QSFP+) |
| 100 GE Interface Card | |
| CE-L04CF | 4-port 100 GE Interface Card (CFP) |
| CE-L08CC | 8-port 100 GE Interface Card (CXP) |
| CE-L12CF | 12-port 100 GE Interface Card (CFP2) |
| CE-L36CQ | 36-port 100 GE Interface Card (QSFP28) |
