2016 Huawei CloudEngine 12800 Series Data Center Switches CE12808

2016 Huawei CloudEngine 12800 Series Data Center Switches CE12808 thumbnail-1
2016 Huawei CloudEngine 12800 Series Data Center Switches CE12808 thumbnail-2
2016 Huawei CloudEngine 12800 Series Data Center Switches CE12808 photo-1

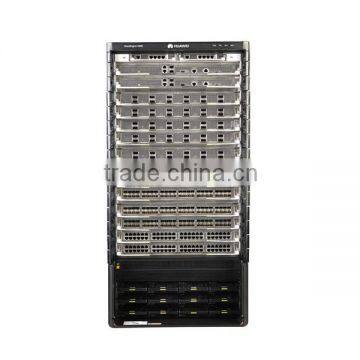

2016 Huawei CloudEngine 12800 Series Data Center Switches CE12808 photo-2
US$ 100 - 1,000 MOQ: 1 Box
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
24
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Xueyou Union (Wuhan) Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports 24
Transmission Rate 10/100Mbps
Function POE, VLAN Support
Communication Mode Full-Duplex
Certification CE
Switch Capacity 16Gbps
Brand Name huawei
Model Number CE12800
Place of Origin Guangdong, China

CloudEngine 12800 Series Data Center Switches



CE12800 offers carrier-grade reliability, virtualization support, iStack clustering, and Software-Defined Networking features for building and scaling data centers and campus networks. CE12800 switches provide versatility and resilient performance for server-based multimedia applications, Big Data analytics, and cloud computing.



Elastic switching meets your specialized requirements. 576 x 100 GE, 576 x 40 GE, 2,304 x 25 GE, or 2,304 x 10 GE ports with total switching capacity of 160 Tbit/s per switch, upgradable to 320 Tbit/s.



Energy-saving technologies and patented front-to-rear, “on demand” cooling keep performance sizzling and networks cool.



2016 huawei CloudEngine 12800 Series Data Center Switches CE12808



Product specifications

Item CE12804S CE12808S CE12804 CE12808 CE12812 CE12816
Switching Capacity 40/80 Tbit/s 80/160 Tbit/s 40/80 Tbit/s 80/160 Tbit/s 120/240 Tbit/s 160/320 Tbit/s
Forwarding Performance 17,280 Mpps 34,560 Mpps 17,280 Mpps 34,560 Mpps 51,840 Mpps 69,120 Mpps
Service Slots 4 8 4 8 12 16
Switching Fabric Module Slots 2 4 6 6 6 6
Fabric Architecture Clos architecture, cell switching, VoQ, and distributed large buffer
Airflow Design Strict front-to-back
Device Virtualization Virtual System (VS)
Cluster Switch System (CSS)
Super Virtual Fabric (SVF)
Network Virtualization M-LAG
TRILL
VXLAN routing and bridging
EVPN
VM Awareness Agile Controller
Network Convergence FCoE
DCBX, PFC, and ETS
Data Center Interconnection EVN supports inter-DC Layer 2 network interconnections
Programmability OpenFlow
OPS
Puppet and OVSDB plugins released on open source websites
Linux container for open source and customization programming
Traffic Analysis NetStream
sFlow
VLAN Adding access, trunk, and hybrid interfaces to VLANs
Default VLAN
QinQ
MUX VLAN
MAC Address Dynamic learning and aging of MAC addresses
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
MAC address limiting based on ports and VLANs
IP Routing IPv4 dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP
IPv6 dynamic routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+
IPv6 IPv6 Neighbor Discovery (ND)
Path MTU Discovery (PMTU)
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
IGMP snooping
IGMP proxy
Fast leave of multicast member interfaces
Multicast traffic suppression
Multicast VLAN
MPLS Basic MPLS functions
MPLS VPN/VPLS/VPLS over GRE
Reliability LACP
STP, RSTP, VBST and VBST
BPDU protection, root protection, and loop protection
Smart Link and multi-instance
DLDP
ERPS (G.8032)
VRRP, VRRP load balancing, and BFD for VRRP
BFD for BGP/IS-IS/OSPF/Static route
In-Service Software Upgrade (ISSU)
QoS Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information
Actions include ACL, CAR, and re-marking
Queue scheduling modes such as PQ, WFQ, and PQ + WRR
Congestion avoidance mechanisms, including WRED and tail drop
Traffic shaping
Configuration and Maintenance Console, Telnet, and SSH terminals
Network management protocols, such as SNMP v1/v2c/v3
File upload and download through FTP and TFTP
BootROM upgrade and remote upgrade
Hot patches
User operation logs
Zero-Touch Provisioning (ZTP)
Security and Management 802.1x authentication
RADIUS and HWTACACS authentication for login users
Command line authority control based on user levels, preventing unauthorized users from using commands
Defense against MAC address attacks, broadcast storms, and heavy-traffic attacks
Ping and traceroute
Remote Network Monitoring (RMON)
Dimensions (W x D x H) 17.4 in. x 24.4 in. x 14.1 in. (442 mm x 620 mm x 352.8 mm) (8U) 17.4 in. x 24.4 in. x 28.2 in. (442 mm x 620 mm x 708.4 mm) (16U) 17.4 in. x 32 in. x 19.1 in. (442 mm x 813 mm x 486.15 mm) (11U) 17.4 in. x 32 in. x 29.6 in. (442 mm x 813 mm x 752.85 mm) (17U) 17.4 in. x 32 in. x 38.4 in. (442 mm x 813 mm x 975.1 mm) (22U) 17.4 in. x 35.6 in. x 62.9 in. (442 mm x 905 mm x 1,597.4 mm) (36U)
Chassis Weight (empty) < 132.3 lb. (60 kg) < 202.5 lb. (100 kg) < 242.5 lb. (110 kg) < 330.7 lb. (150 kg) < 418.9 lb. (190 kg) < 693.3 lb. (290 kg)
Operating Voltage AC: 90V to 290V

DC: -38.4V to -72V

HVDC: 240V
Maximum Power Supply 6,000W 12,000W 5,400W 10,800W 16,200W 27,000W
