LED Canopy Lights Wholesale 60W

LCN2 Luminaire Specifications

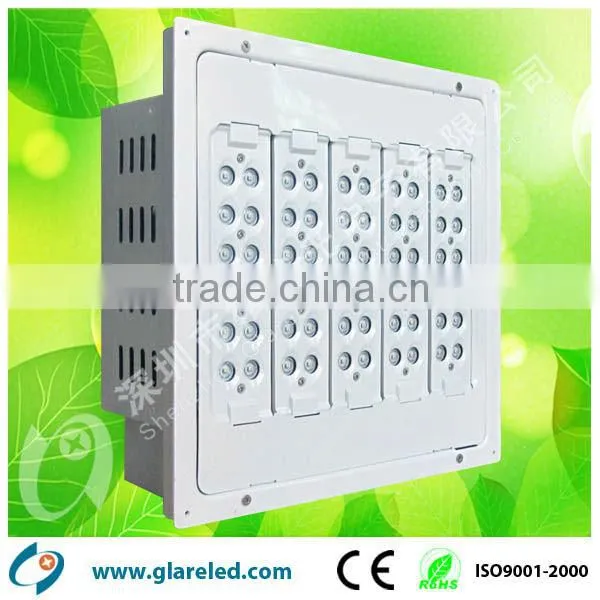

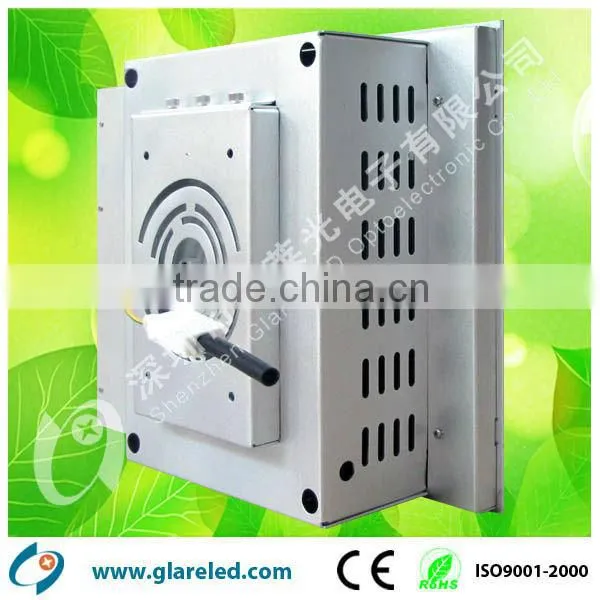

Luminaire Housing: White ABS outer housing with steel top cover. Vertical adjustment brackets allow for leveling and height adjustment. Designed for recessed installation in double-skin canopies.

1. Finish: White.

2. Light-Engine Housing: Die cast aluminum housing with heat dissipating fins.

3. Optical Chamber: Sealed by die formed silicone gasket held captive by stainless steel frame between clear prismatic UV stabilized polycarbonate lens and cast aluminum heat sink to prevent ingress of dust or moisture.

4. Light Emitting Diodes: Hi-flux/Hi-power white LEDs produce 130 lumens (typical) per watt and 70% of initial intensity (L70  projection) at 60,000+/- hours of projected life. They have a CCT (correlated color temperature) of 5000K and a typical CRI of 70. LEDs are 100% mercury and lead free.

5. Electrical: Dual power supplies feature a Power Factor of .9 and <20% Total Harmonic Distortion (THD). EMC meets or exceeds FCC CFR Part 15 Class A. Power supply produces a maximum drive current of 325mA to optimize LED efficiency and life. Operating temperature rating: -40F to 122F (-40C to 50C).

Packing and shipping:

Lamps are packed in wooden carton box.

Size of carton box:W440mmXD330mmXH440mm

Shipping time:3-5 days for sample;2-4 weeks for mass order.

Our service:

1. Listings/Ratings/Warranties: Luminaires are listed by CSA for use in damp/dry locations in the United States and Canada as well as CE listed

2. Warranty: Three-year limited warranty is standard on all components.

3. Note: CE only 110-220V model

4. Photometry: IES Type V, Cutoff distribution. All luminaires are photometrically tested by a certified independent testing laboratories in accordance with IESNA LM-79 testing procedures.
