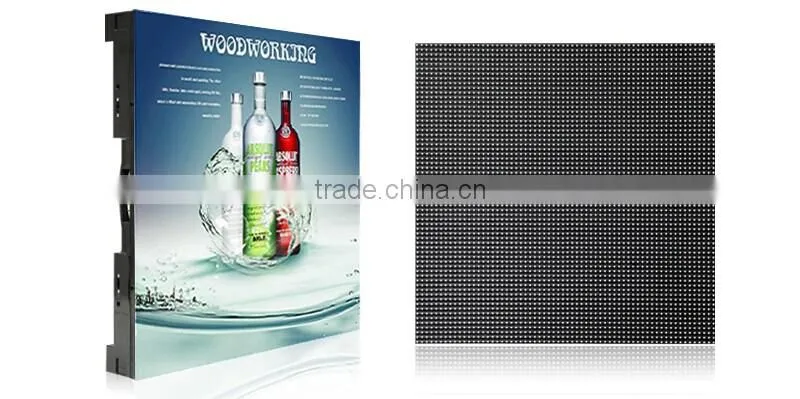

Full color Solution for sport stadium outdoor SMD LED screen SMD2727/3535 P5/P6/P8/P10
| Specifications |
|
|
| 2.Super brightness. |
| 3.Waterproof. |
| 4.CE,RoHS. |
|
|
| Glare-led Indoor LED display solution, delivers images with high brightness and unequalled contrast levels, as well as superb color uniformity. With its slim, sleek design, Indoor-SMD(3-in-1) LED display allows the build up of almost any shape and size display and is deal for use in smaller indoor locations with restricted viewing distances. |
| Following pitch sizes are available: 5mm, 6mm, 7.62mm, 8mm, 10mm and 12mm. |
| Features |
| Unequalled brightness & extreme viewing angles |
| Slim, light-weight, modular design |
| Flexibility in the shape and design |
| Accurate color uniformity and smoother, flicker-free video |
| Ultimate picture quality, longevity and low cost of ownership |
| Application |
| Glare-led Indoor-SMD(3-in-1) LED display range offers many different resolution optiona that are suitable to a variety of applications in the rental & |
| staging market as well as for fixed indoor installations: |
| Corporate lobbies |
| Entertainment venues |
| Museums & visitors centers |
| Sports arenas |
| Retail venues |
Product features |
- SMD encapsulation technology, 140 °super wide Angle, making the viewer can obtain excellent display effect in any Angle;
- Equipped with intelligent lighting equipment and adaptive adjustment of environment, will not affect by the ambient light strong display effect and environmental protection and energy saving.
- Any direction, any size, any shape can be jointed presenting perfect seamless visual effect;
- With die-casting aluminum frame design, screen is super light and thin, saving space and costs, fashionable and beautiful;
- Adopting die-casting aluminum improves the heat dispersion, prolonging the lifetime of the led display.
- High reliability, long lifetime and low maintenance costs;
- After cabinet open the door design, module front or rear maintenance ;
- High weatherability, IP65 protection grade, suitable for outdoor products.
- High brightness, high contrast, wide color gamut, high gray-scale and refresh, the sun shoots directly still making the picture clear and bright, display effect natural and real.
Product advantage
Large Viewing Angle:Outdoor SMD Full Color LED display has large viewing angle,Horizontal viewing angle V>=140°,Vertical viewing angle H >=120°.This viewing angle is higher than outdoor full color DIP LED display viewing angle(V >=110°,H >=40°).The SMD led Display is very suitable for some outdoor building advertising which needs large viewing angle that meets the advertising requirements.
Perfect lighting Mixture effect:Because of the 3 in 1 special design,the distance is very close between the 3pcs led chips.The 3 led chips lighting at the same level instead of lighting like 3pcs oval leds,so the lighting mixture effect is better than oval LEDs.So SMD led displays is suitable for viewing at very close distance.
Perfect Lighting Match Features :Red,Green,Blue Oval led is very hard to make the same lighting match together .But the SMD led is designed at the same fixture level,so the red,green,blue lights is very easy to match together when lighting on.So SMD led display can has very vivid display effects.
High contrast level :With the SMD 3 in 1 designing,the outdoor full color SMD led display has very small lighting size.Compared with the big black zone,the SMD led display has much higher contract levels than DIP oval led displays.
With smooth and ultra thin and light screen:SMD outdoor led display use special designed structure, so the display’s smoothness is higher then DIP led display. And avoid glue encapsulation, making the product more light, easy and quick installation. SMD outdoor led display whether use aluminium alloy or sheet metal enclosure structure both can be designed very deft, beautiful, not easy to deformation. suitable for leasing companies,led taxi display and media,. outdoor column installation or wall installation can ease the pressure on the steel structure.
Energy saving, environmental protection and good heat dissipation SMD outdoor led display using energy-efficient constant current chips, high brightness LED lights with high efficiency, and the special structure design, so the energy saving and heat dissipation is superior to DIP LED display, to extend the life of the screen.
Large-scale automatic production SMD LED module suits fully automatic SMT machine, achieve high production efficiency.Outdoor SMD module’s circuit design can achieve the light board and drive board two-in-one, reduce the cost and improve the reliability, enhanced the production efficiency.In addition, automatic SMT machine also can improve the vertical precision of the plate on the circuit board, better then DIP led display, thus ensuring better optical effect.
Product parameters |
Indoor SMD(3-IN-1) Full color LED Display |
||||||
| Pixel pitch(mm) | P5 | P6 | P7.625 | P8 | P10 | P12 |
| Pixels Configuration | 1R,1PG,1PB | 1R,1PG,1PB | 1R,1PG,1PB | 1R,1PG,1PB | 1R,1PG,1PB | 1R,1PG,1PB |
| Module Dimension | 160 × 160 | 192 × 96 | 244 × 122 | 256 × 128 | 160 × 160 | 192 × 192 |
| (L × H) mm*mm | ||||||
| Module Resolution | 32 × 32 | 32 × 16 | 32 × 16 | 32 × 16 | 16 × 16 | 16 × 16 |
| (L × H) pixels*pixels | ||||||
| Cabinet Dimension | 640 × 640 | 768 × 576 | 976 ×732 | 1024 × 768 | 640 × 480 | 768 × 576 |
| (L × H) mm*mm | 488 × 488 | |||||
| Cabinet Resolution | 128 × 128 | 128 × 96 | 128 × 96 | 128 × 96 | 64 × 48 | 64 × 48 |
| (L × H) pixels*pixels | 64 × 64 | 64 × 64 | ||||
| Density (pixels / M2) | 40,000 | 27,777 | 17,221 | 15,625 | 10,000 | 6,944 |
| Brightness Density (cd/m2) | 2600 | 2400 | 1800 | 1400 | 1200 | 1000 |
| Drive mode | 1/8 | 1/8 | 1/4 / 1/8 | 1/4 | 1/4 | 1/4 |
| Best Viewing distance (m) | 3 ~ 100 | 3 ~ 100 | 5 ~ 100 | 5 ~ 100 | 5 ~ 100 | 5 ~ 100 |
| Power consumption | 648 | 450 | 420 | 460 | 320 | 240 |
| Power consumption | 1600 | 1130 | 1050 | 1145 | 800 | 600 |
| Viewing angle | Horizontal angle: 120 degree; Vertical angle: 120 degree | |||||
| Gray scale | 4096 gray scale in each Red,Green,Blue color | |||||
| Kinds of Color | 68.7 billion kinds | |||||
| Ingress Protection | Front IP40 , Rear IP30 | |||||
| Refresh Velocity | More than 60 frame/sec | |||||
| Refresh Rate | More than 300HZ | |||||
| Display Life | More than 100,000 hours | |||||
| Display MTBF | 10000 hours | |||||
| Blind Pixels Rate | Less than 0.0003 | |||||
| Working Voltage | AC220V±15%, 47~64HZ | |||||
| Effective Control Distance | 100m (kind 5 cable) /1000m or more (Optical fiber) | |||||
| Operation temperature | - 30°C ~ + 60°C | |||||
| Operation Humidity | 10% ~ 90% RH | |||||

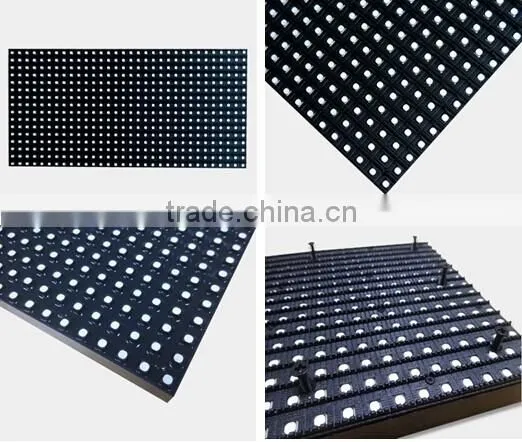

Module pictures |

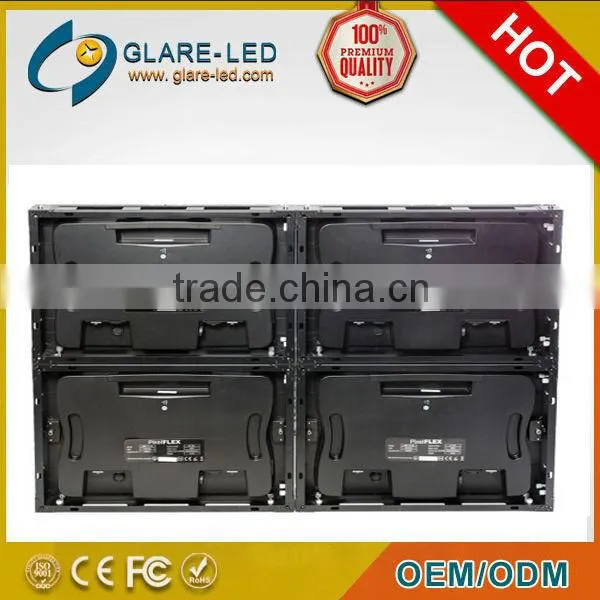

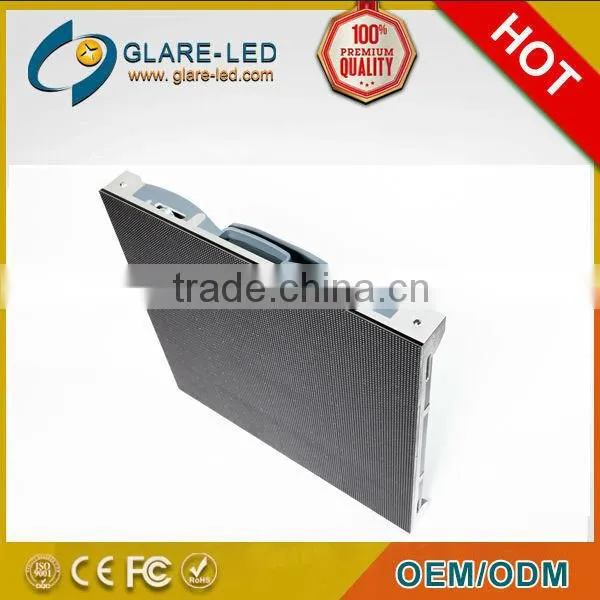

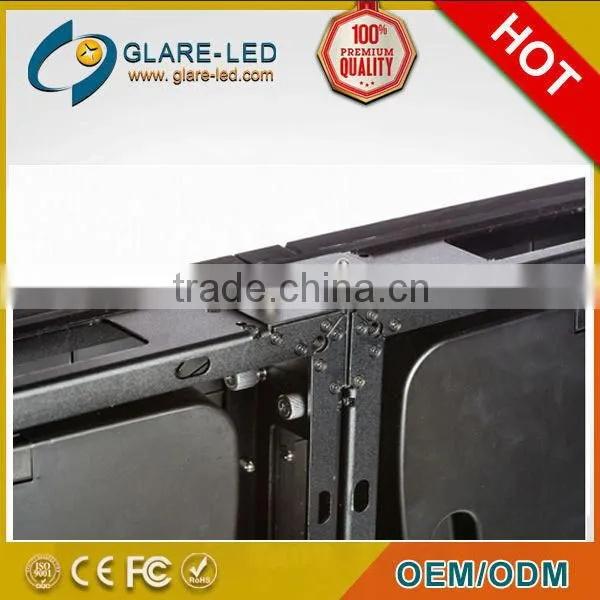

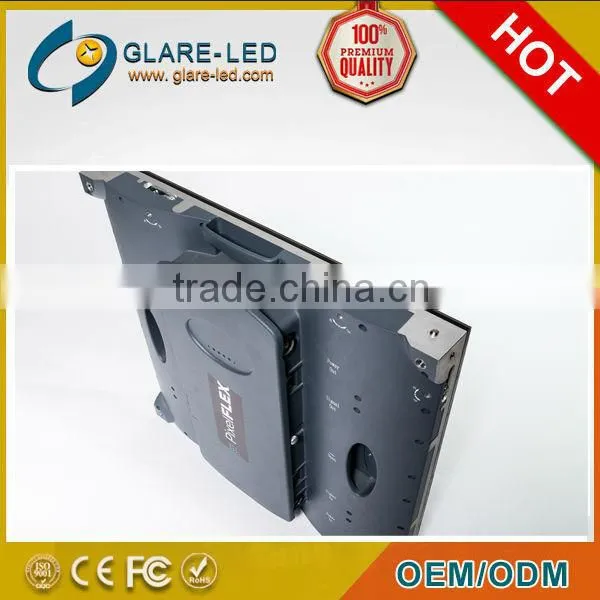

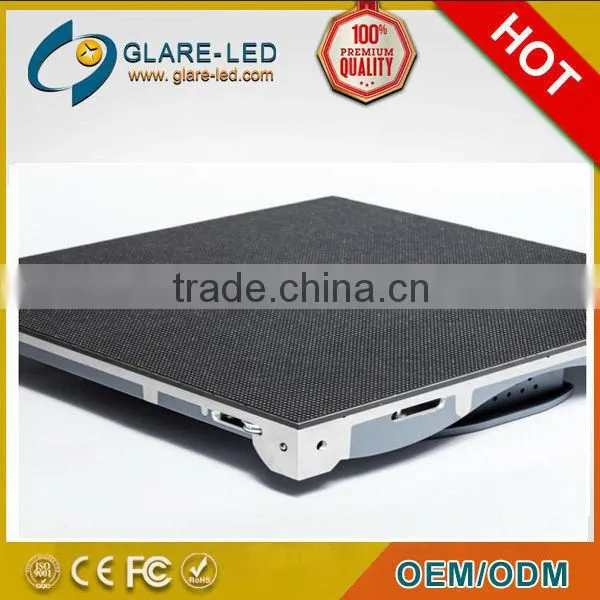

Cabinet pictures |
|
|
|
|

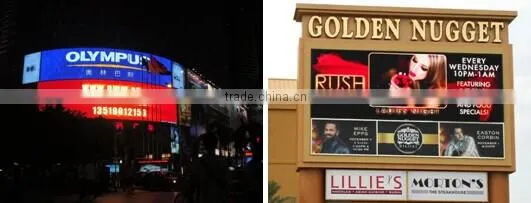

Application |
Solution for sport stadium outdoor SMD LED screen
1) For outdoor sports video screen, we use visual pixel technology to realize better performance of vivid video display with SMD outdoor 3 light ranges of product and specical controlling system
2) For indoor sports video screen, we use SMD3230 3 in 1 technology, which takes wider viewing angle, higher refresh rate for the sports events broadcasting.
3) The images of LED display are more stable with 2000Hz refresh rate and no vision data is missing while transferring by camera.
Designed for outdoor, high definition applications, the full color SMD LED video display is great for commercial advertising and information dissemination. It can also be used as a stadium LED display and outdoor rental LED display.
We offer different types of outdoor LED displays at a number of different specifications, including P5, P6, P76.2, P8, P10 and P16. We can also provide custom LED displays according to specific customer needs.
