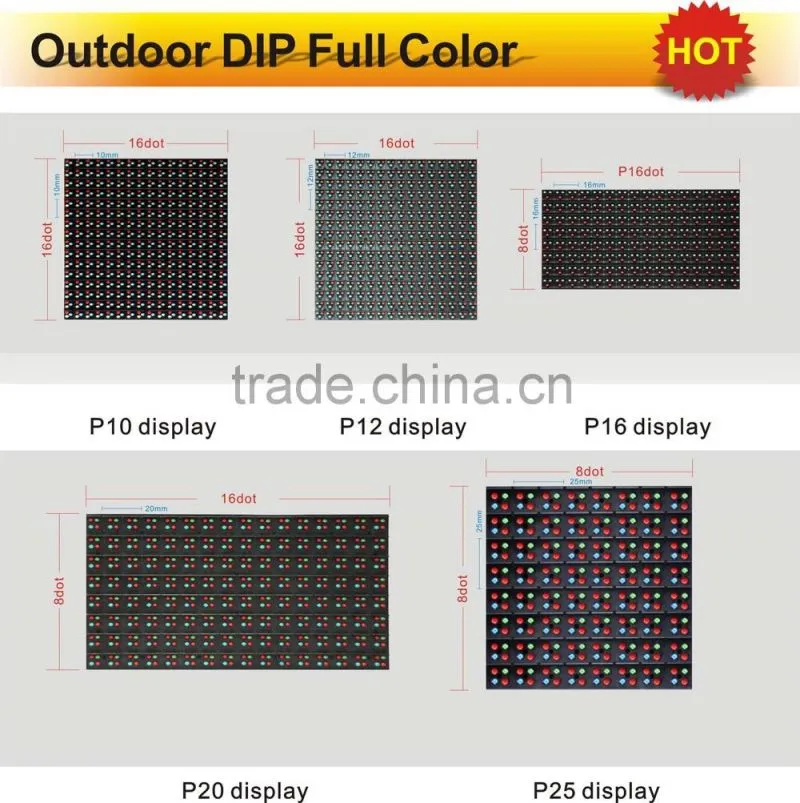

bus station stadiums Led screen display signs P10,P12,P16,P25,P31.25

Shenzhen Glare-LED Co., Ltd is a highly scientific and technological enterprise, specializing in developing, manufacturing and selling LED Video Display Screens, LED gas price display, Led moving signs,  After the foundation of our company, we have devoted ourselves to the development and production of LED products. In the R&D department of our company, we have the first-class technological engineers in China. They have the strong ability of technique R&D. They also can develop and produce various and relevant products according to the different needs of our customers.

As a leading manufacturer and exporter of LED Video Display screens products in China, We always hold the producing belief of "we should be responsible for our customers, for the quality of our products, as well as for every staff". Thorough managing measures, strict quality testing procedures and highly sophisticated and fully automatic large-scale equipment are our important approaches for keeping the quality of our products and competitive price.

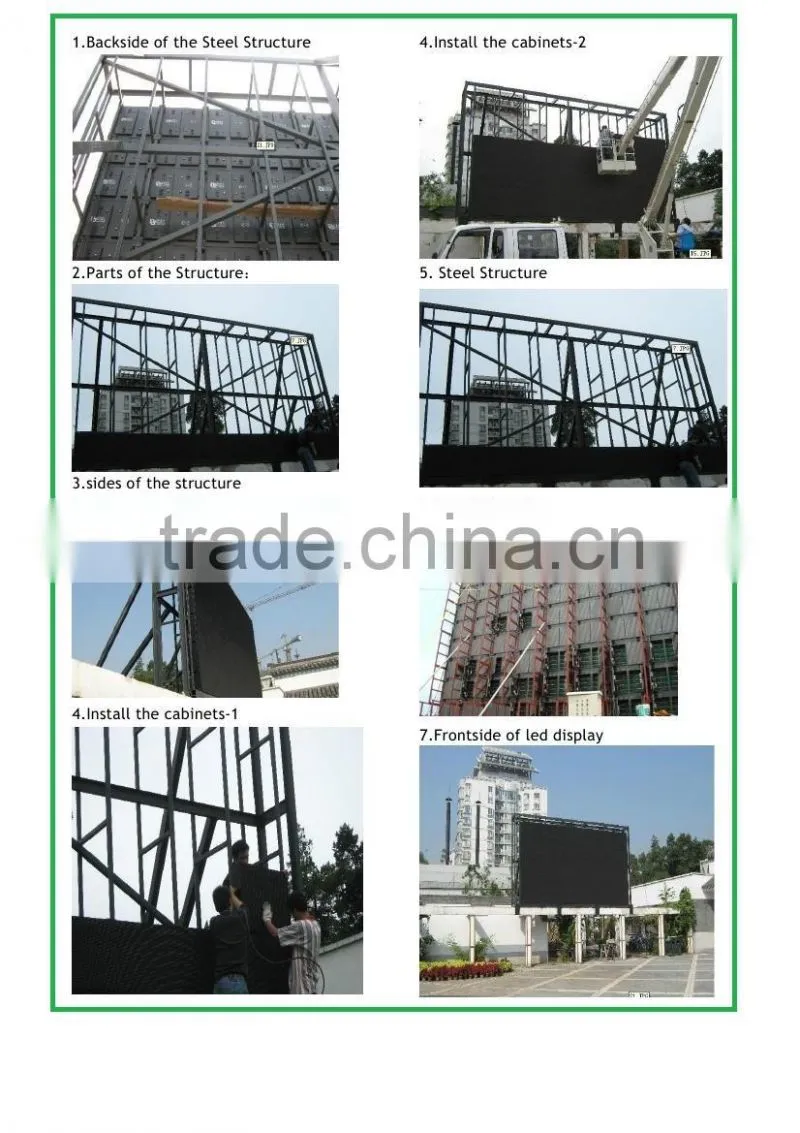

 Outdoor LED Video display Screens'  installation structure drawing:

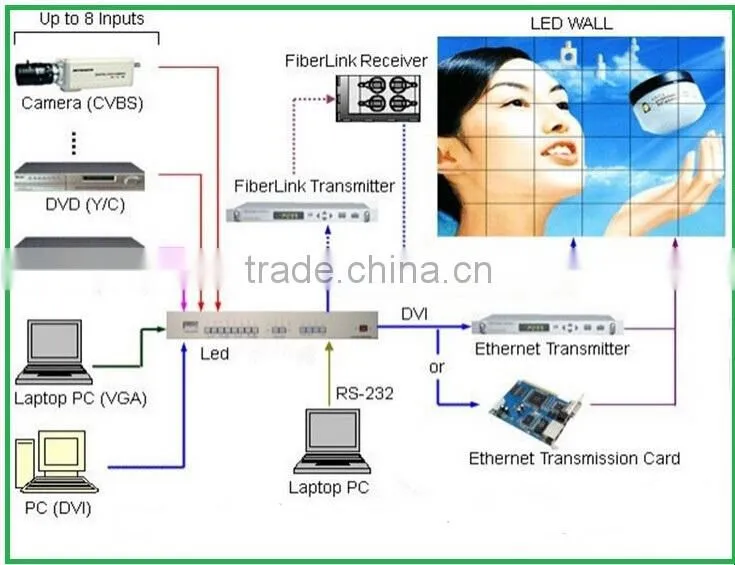

Outdoor LED video display Screens'  Operating Principle

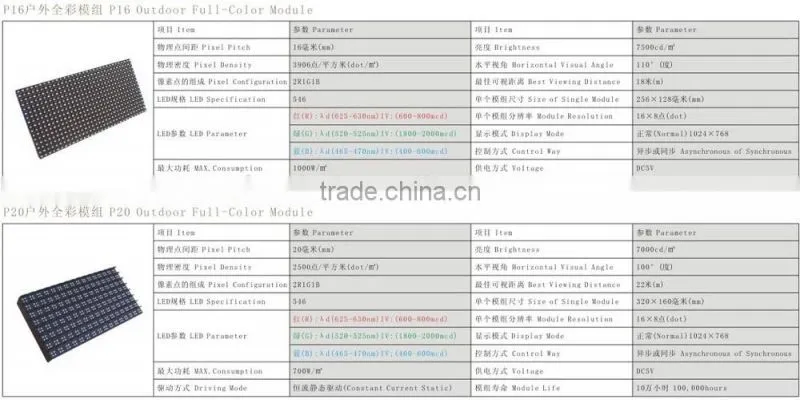

3. Attention For the P16 Outdoor LED Video Display Screens :

1. The green wire in the above picture is signal cable, the red one is AC power cable. Please be sure that the terminations of both are inserted in the right place, and then wring the black plastic ring to fix . Besides, every cabinet has his own number, pls make sure they will be installed according to the number ( the pictures above are backside ones ), there are totally 18 pcs of cabinets, 6 in width , 3 in height.

  2.       The specification of the red iron square tubes in above picture is 40*40mm.

  3.       The max power of this display is 14.4KW, The everage power is 8.64KW.

 The power cables are respectively plugged into 6 groups , A1,B1,C1,A4,B4,C4,each group is 2400W.

4.        Please make sure that the Alternating Currentis grounding well ,and lightning protection device installed, in case of damage to the display and leds.

5.        Number A1~A6,B1~B6 and C1~C6, total 18 pcs of cabinets, each size is (W)960*(H)960*(D)160mm, each net weight is about 47.5kg.

6.        Power input : AC 220V±10% 50Hz-60Hz

1)In general, 5~7 days after deposit, Accurate production time depends on  production schedule

2)Sample will be shipped by DHL,

3)Normal export wooden and Carton case package

4)We will always tracking and helping you get the best Purchasing experience

1)TT 50% As deposit +50% Balance before shipping after examine goods.

2)West union, L/C at sight etc. are all ok

3)Paypal for the smaller amount

1. Warranty: 1-Year for the whole Led video display screens

2. Warranty is based on correct storage, installation, using and maintenanc

3. Damage for misuse or false operation does not in guarantee

4. During guarantee period, our company will chose repair or change new parts for customers

5. Exceed guarantee period, our company will charge cost for material and labor cost
