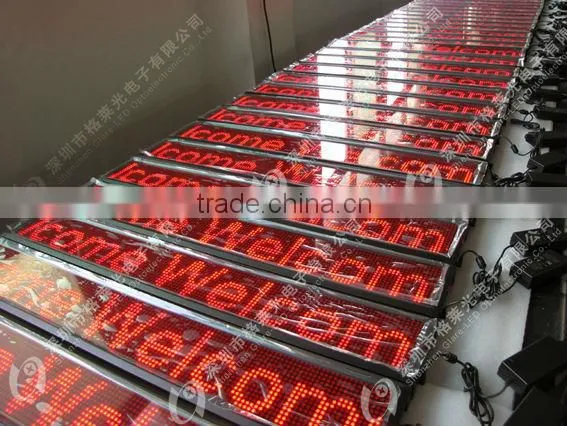

Dual Color P7.62 LEDS Walking Moving Signs Indoor LED Scrolling Message Display Screen Panel

Name: Dual Color P7.62 LEDS Walking Moving Signs Indoor LED Scrolling Message Display Screen Panel
Brand: Glareled
SKU: 131632875

US$ 1,000 - 3,000 MOQ: 1 Piece

Key Specifications

Brand Name:

Glareled

Model Number:

GLM-P16

Usage:

Other, Outdoor, outdoor use

Shenzhen Glare-LED Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Glareled

Model Number GLM-P16

Usage Other, Outdoor, outdoor use

Tube Chip Color Full Color

Display Function Other, Video, Animation

Pixels Other

led moving sign
1.wireless control
2.high waterproof
3.good quality,CE,UL

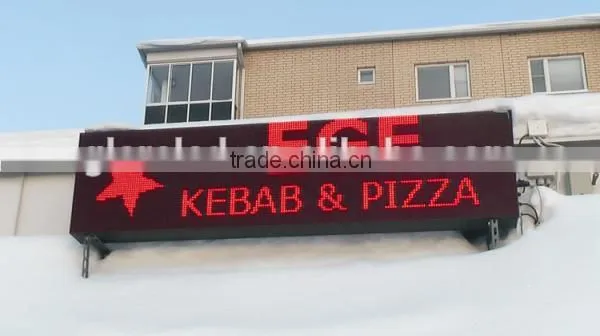

dual color P7.62 LEDS walking Moving signs Indoor LED scrolling message display screen panel

Time,Message,Graphics 7.62 mm Pixels led moving message sign

Specification:

P7.62 LEDS Moving signs Indoor led digit display

P7.62 Indoor Led Display
P7.62 Indoor Led Display
Pixel Information	Pixel Pitch	7.62mm
	Technology	SMD 3 in 1
	Pixel Density	17222 Pixels/m2
	Pixel Configuration	1R1G1B
LED Module	Module Size	488 mm (Width) × 244 mm(Height) = 0.119 m2
LED Module	Module Resolution	64 pixels(Width) × 32 pixels(Height) = 2048 pixels
LED Cabinet	Cabinet Size	976 mm(Width) × 976 mm(Height) = 0.9526/m2
	Cabinet Resolution	128Pixels(Width) × 128 Pixels(Height) = 16384 Pixels
	Total QYT Module Per Cabinet	2 Modules(Width) ×4 Modules(Height) = 8 Modules
	Cabinet Weight	27kg
	Cabinet Material	Steel or aluminum
Power	Input Voltage	100-240V AC, 50/60Hz
	Max Power Consumption	1000 Watt/m2
	Avg. Power Consumption	350--450 Watt/m2
Viewing	White Balance
		X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K)

	Brightness	≥1800cd/m2
	Brightness Uniformity	Luminance Discrepancy < 5%
	Colors	16777216
	Grey Scale(Level)	4096
	Slot Between Neighboring Modules	< 1 mm
	Best Viewing Angle	Horizontal:120°,Vertical:120°
	Viewing Distance	5 - 300 meters
Ambint Conditions	Temperature Range	Storage:-40deg. to +85deg.; Working:-20deg. to +60deg
	Operating Humidity	10%90%RH
	Ingression Protection Grade	Front Side: IP65Resist spraying of water gun directly, Back Side: IP54Resist Rain
Processing	Scanning Mode	1/16 Scan
	Refresh Frequency	180HZ-600HZ, Adjustable
	Signal Input	DVI, Composite Video for Live Video
	Supported Networking	Through LAN/WAN, RS 232/RS485
	Controller
		PC based

Other	Life Span	50,000 - 100,000 Hours
Other	Software	Linsn
